TOTO ECOPOWER Touchless Urinal Flush Valve, 0.125 GPF, Concealed with 4" x 4" Cover Plate, i Series IoT with LoRa Card, with 3/4" Back Spud Vacuum Breaker Set, Stainless Steel - TEU3UAi411#SS

The TOTO TEU3UAi411#SS is an ECOPOWER touchless (sensor) flush valve for 0.125 GPF urinals with a 3/4" back spud inlet, concealed behind a 4" x 4" stainless steel cover plate. It ships complete with TOTO's 3/4" angle stop and 3/4" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. It includes the long-range (LoRa) IoT communication card.

Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.

Features

• Concealed Flush Valve with 3/4" angle stop and 3/4" Vacuum Breaker Set

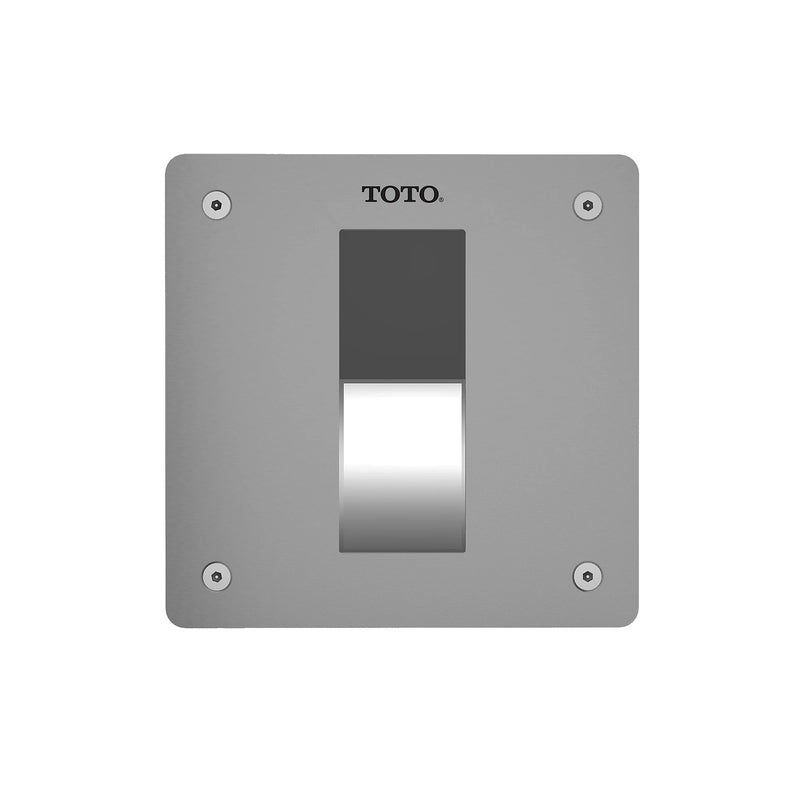

• 4" x 4" Stainless Steel cover plate with tamper proof screws
• Hydropower self-generating system
• 0.125 GPF
• Adjustable tail piece connection
• Neutral rough
• Manual flush override
• Self Adjusting detection range
• 6-second detection time with 3-second flush delay
• Automatic maintenance flush after 12 hours of inactivity
• For Urinal with 3/4" back spud inlet
• ADA Compliant

Common Questions

Is this the valve only, or does it include the vacuum breaker?

It is complete: the valve ships with TOTO's 3/4" vacuum breaker set for a back spud urinal.

Does it need electrical power?

No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement.

Will it fit my urinal?

It is for a urinal with a 3/4" back spud inlet. Pair it with a urinal bowl rated for 0.125 GPF.

Specifications

• Supply Inlet: 3/4"
• Spud Size: 3/4"
• Application: Domestic Water
• Operation: Sensor
• MPN: TEU3UAi411#SS
• Certifications: ADA, CALGreen, WaterSense
• Fixture Served: Urinal
• Gallons per Flush (GPF): 0.125
• Body Style: Concealed
• Cover Plate: 4x4 SS Cover Plate (Recess)
• Spud Position: Back Spud
• Vacuum Breaker: Atmospheric Vacuum Breaker
• Power Source: SSPS (Turbine)
• IoT Connectivity: IoT-Enabled (LoRa Card Included)
• Finish: Stainless Steel
