TOTO ECOPOWER Touchless Urinal Flush Valve, 0.125 GPF, Concealed with 4" x 4" Cover Plate, with 3/4" Back Spud Vacuum Breaker Set, Stainless Steel - TEU3UA11#SS

The TOTO TEU3UA11#SS is an ECOPOWER touchless (sensor) flush valve for 0.125 GPF urinals with a 3/4" back spud inlet, concealed behind a 4" x 4" stainless steel cover plate. It ships complete with TOTO's 3/4" angle stop and 3/4" vacuum breaker set (VB1311#RB). Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. TOTO is selling through remaining stock of this model.

Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.

Features

• Concealed Flush Valve with 3/4" angle stop and 3/4" Vacuum Breaker Set

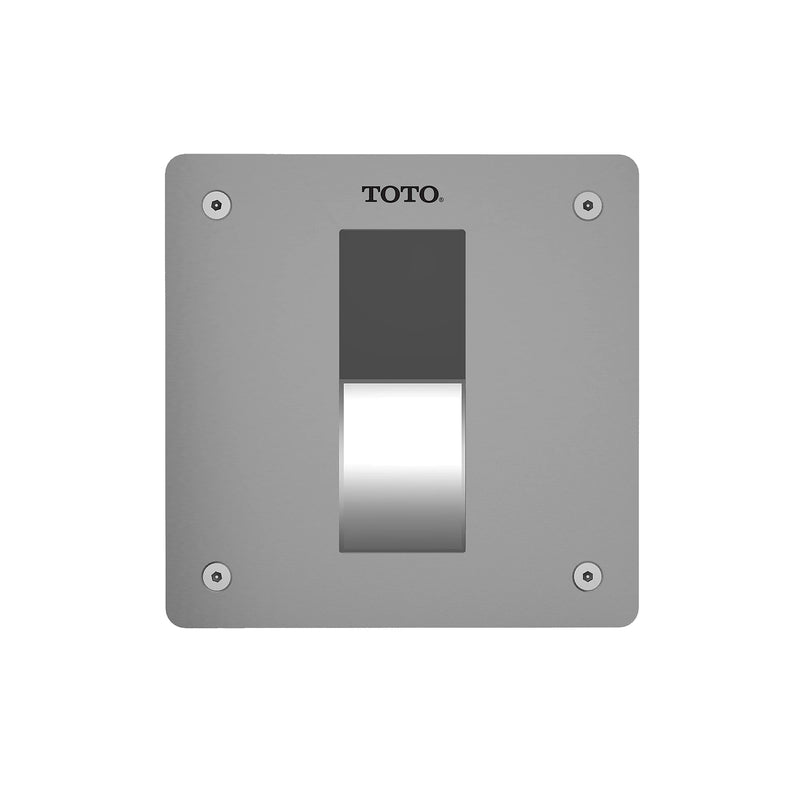

• 4" x 4" Stainless Steel cover plate with tamper proof screws
• Hydropower self-generating system
• 0.125 GPF
• Adjustable tail piece connection
• Neutral rough
• Manual flush override
• Self Adjusting detection range
• 6-second detection time with 3-second flush delay
• Automatic maintenance flush after 12 hours of inactivity
• For Urinal with 3/4" back spud inlet
• ADA Compliant

Common Questions

Is this the valve only, or does it include the vacuum breaker?

It is complete: the valve ships with TOTO's 3/4" vacuum breaker set (VB1311#RB) for a back spud urinal.

Does it need electrical power?

No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement.

Will it fit my urinal?

It is for a urinal with a 3/4" back spud inlet. Pair it with a urinal bowl rated for 0.125 GPF.

Specifications

• Supply Inlet: 3/4"
• Spud Size: 3/4"
• Application: Domestic Water
• Operation: Sensor
• MPN: TEU3UA11#SS
• Certifications: ADA, CALGreen, WaterSense
• Fixture Served: Urinal
• Gallons per Flush (GPF): 0.125
• Body Style: Concealed
• Cover Plate: 4x4 SS Cover Plate (Recess)
• Spud Position: Back Spud
• Vacuum Breaker: Atmospheric Vacuum Breaker
• Power Source: SSPS (Turbine)
• Finish: Stainless Steel
