Similar products
Specifications
Description

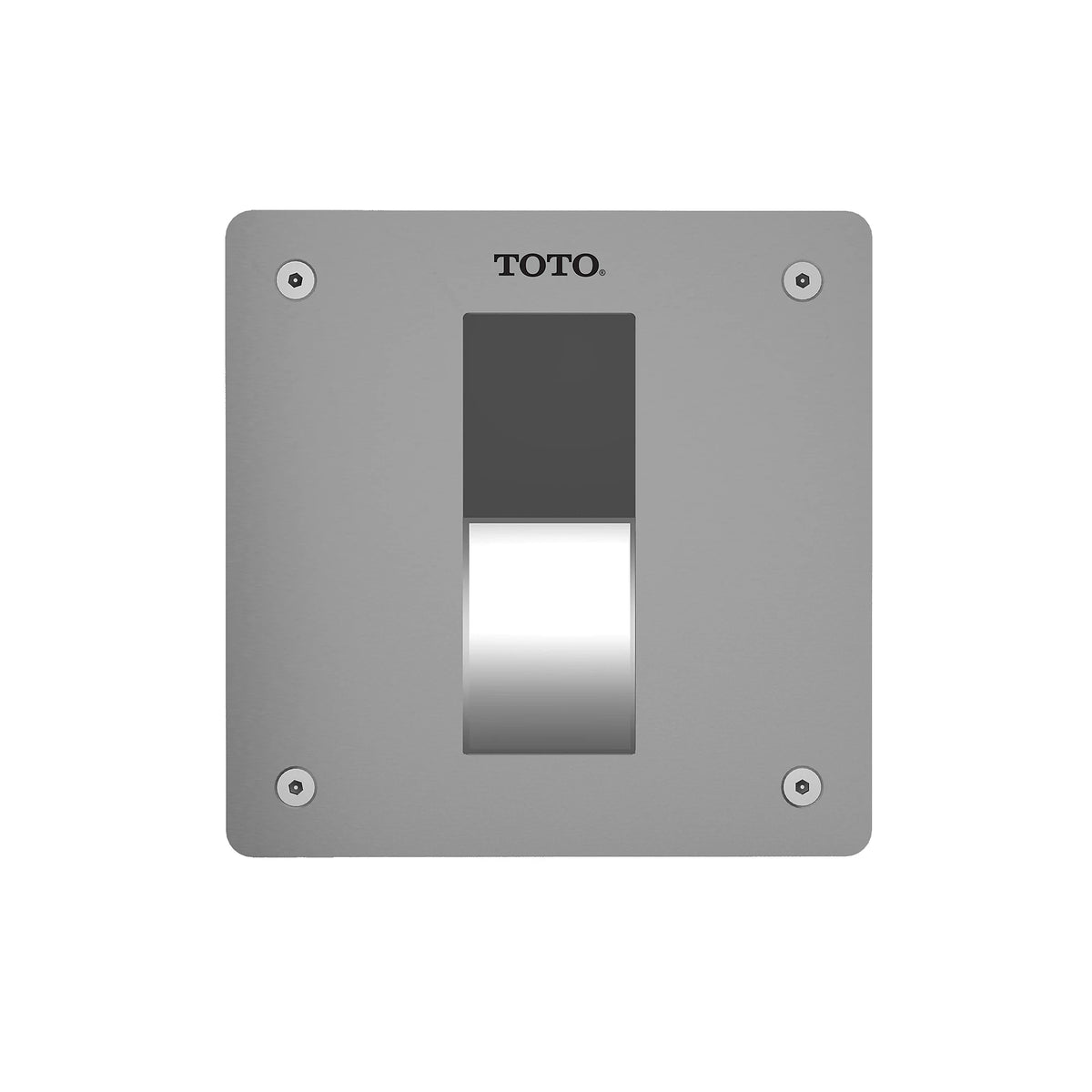

The TOTO TEU3LAi411#SS is an ECOPOWER touchless (sensor) flush valve for 0.5 GPF urinals with a 3/4" back spud inlet, concealed behind a 4" x 4" stainless steel cover plate. It ships complete with TOTO's 3/4" angle stop and 3/4" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. It includes the long-range (LoRa) IoT communication card.
Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.
Features
- Concealed Flush Valve with 3/4" angle stop and 3/4" Vacuum Breaker Set
- 4" x 4" Stainless Steel cover plate with tamper proof screws
- Hydropower self-generating system
- 0.5 GPF
- Adjustable tail piece connection
- Neutral rough
- Manual flush override
- Self Adjusting detection range
- 6-second detection time with 3-second flush delay
- Automatic maintenance flush after 12 hours of inactivity
- For Urinal with 3/4" back spud inlet
- ADA Compliant
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- It is complete: the valve ships with TOTO's 3/4" vacuum breaker set for a back spud urinal.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement.
- Will it fit my urinal?
- It is for a urinal with a 3/4" back spud inlet. Pair it with a urinal bowl rated for 0.5 GPF.
Specifications
- Supply Inlet: 3/4"
- Spud Size: 3/4"
- Application: Domestic Water
- Operation: Sensor
- MPN: TEU3LAi411#SS
- Certifications: ADA, CALGreen, WaterSense
- Fixture Served: Urinal
- Gallons per Flush (GPF): 0.5
- Body Style: Concealed
- Cover Plate: 4x4 SS Cover Plate (Recess)
- Spud Position: Back Spud
- Vacuum Breaker: Atmospheric Vacuum Breaker
- Power Source: SSPS (Turbine)
- IoT Connectivity: IoT-Enabled (LoRa Card Included)
- Finish: Stainless Steel
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | EcoPower | Application | Domestic Water |
| Operation | Sensor | Fixture Served | Urinal |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Stainless Steel |
| Cycle volume gal | 0.5 gal | Spud connection | Back Spud |
| Body style | Concealed | Connectivity | IoT-Enabled (LoRa Card Included) |
| Power source | SSPS (Turbine) | Wall box type | 4x4 SS Cover Plate (Recess) |
Certifications & Standards
| ADA | CALGreen |
| WaterSense | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Urinal
| Urinal
| Urinal
|
| Series | EcoPower
| EcoPower
| EcoPower
| EcoPower
| EcoPower
| EcoPower
|
| Spec Sheet | — | — | — | |||
| Install Sheet | — | — | — | |||
| Inlet Size | 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Outlet Size | 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, CALGreen, WaterSense
| ADA, WaterSense
| ADA, CALGreen, WaterSense
| ADA
| ADA
| ADA
|
