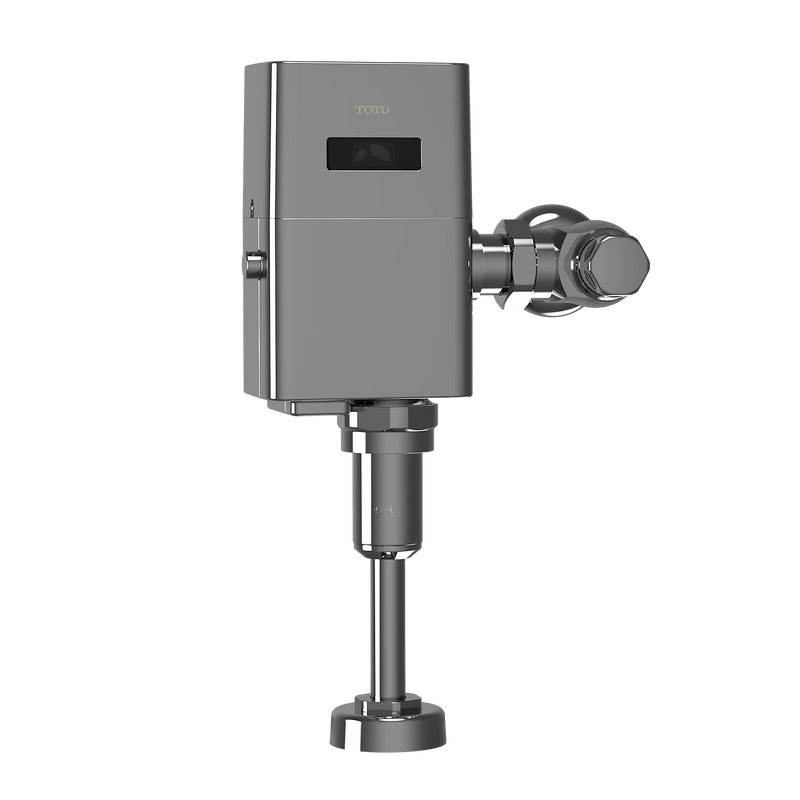

The TOTO TEU1UAXi12#CP is an ECOPOWER touchless (sensor) flush valve for 0.125 GPF urinals with a 3/4" top spud inlet, exposed. It ships complete with TOTO's 3/4" angle stop and 3/4" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. This X model is built for reclaimed water systems, with an EPD-coated valve body. It is IoT-ready; the IoT communication card is sold separately.
Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology. A special version of this flush valve works with reclaimed water systems.
Features
- 0.125 GPF
- Self-powered hydroelectric flush valve system
- No minimum daily usage requirement
- Durable chrome plated body with tamper-proof screws and solid bronze valve body
- Neutral rough-in and adjustable tail piece connection
- True mechanical flush override
- Smart sensor with self-adjusting detection range
- 6-second detection time with no flush delay
- Automatic maintenance flush after 12 hours of inactivity
- For urinal with 3/4" top spud inlet
- ADA compliant
- EPD coated valve body (Reclaimed Water Model)
- See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- It is complete: the valve ships with TOTO's 3/4" vacuum breaker set for a top spud urinal.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.
- Will it fit my urinal?
- It is for a urinal with a 3/4" top spud inlet. Pair it with a urinal bowl rated for 0.125 GPF.
- Can it run on reclaimed water?
- Yes. The X model is TOTO's reclaimed water version, with an EPD-coated valve body. Check TOTO's X spec sheet for the reclaimed water quality parameters.
Specifications
-
Supply Inlet: 3/4"
-
Spud Size: 3/4"
-
Application: Reclaimed Water
-
Operation: Sensor
-
MPN: TEU1UAXi12#CP
-
Certifications: ADA, CALGreen, WaterSense
-
Fixture Served: Urinal
-
Gallons per Flush (GPF): 0.125
-
Body Style: Exposed
-
Spud Position: Top Spud
-
Vacuum Breaker: Atmospheric Vacuum Breaker
-
Power Source: SSPS (Turbine)
-
Manual Override: True Mechanical Override
-
IoT Connectivity: Smart Capable with Adapter
-
Finish: Polished Chrome
