Description

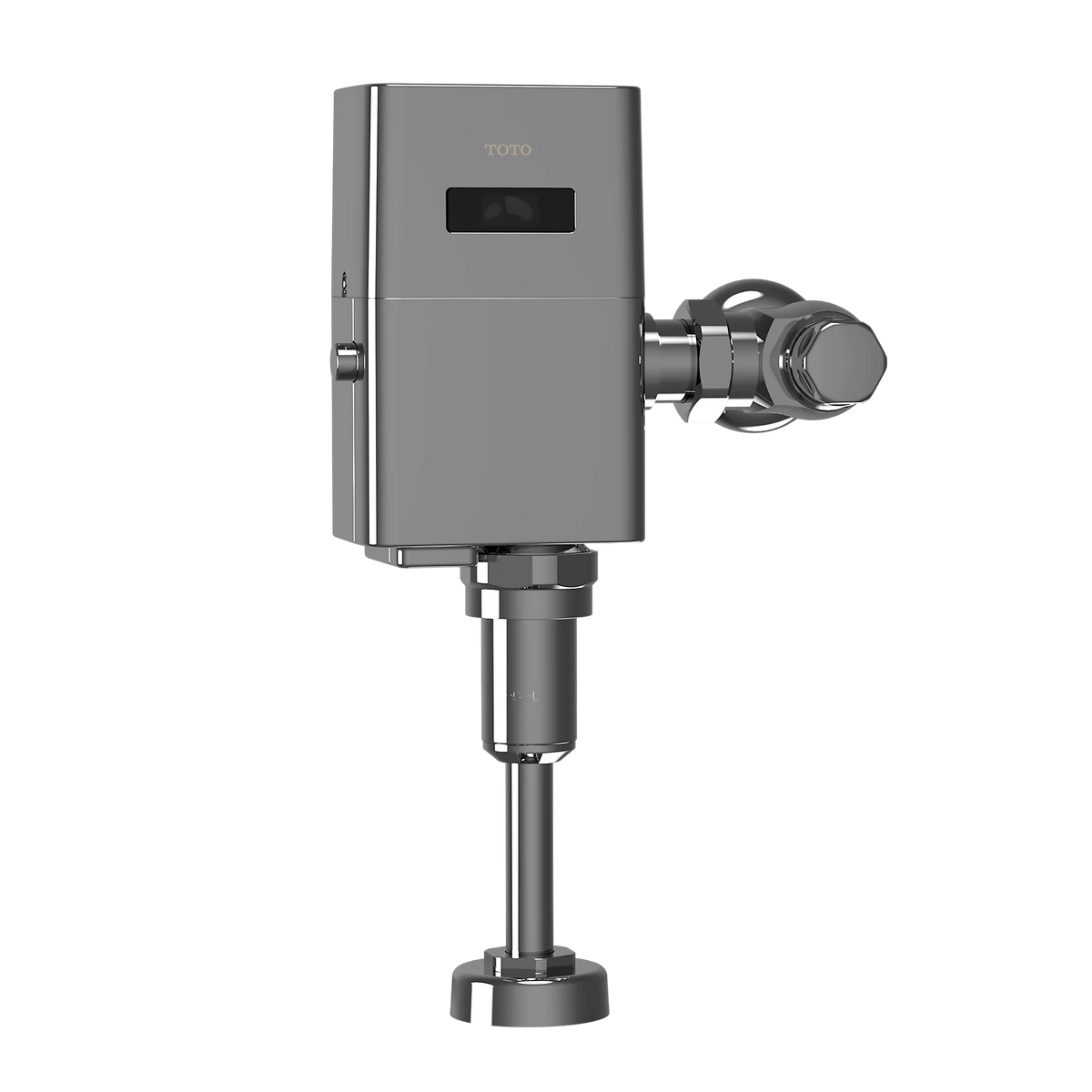

The TOTO TEU1UAi412#CP is an ECOPOWER touchless (sensor) flush valve for 0.125 GPF urinals with a 3/4" top spud inlet, exposed. It ships complete with TOTO's 3/4" angle stop and 3/4" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. It includes the long-range (LoRa) IoT communication card.
Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology. A special version of this flush valve works with reclaimed water systems.
Features
- 0.125 GPF
- Self-powered hydroelectric flush valve system
- No minimum daily usage requirement
- Durable chrome plated body with tamper-proof screws and solid bronze valve body
- Neutral rough-in and adjustable tail piece connection
- True mechanical flush override
- Smart sensor with self-adjusting detection range
- 6-second detection time with no flush delay
- Automatic maintenance flush after 12 hours of inactivity
- For urinal with 3/4" top spud inlet
- ADA compliant
- EPD coated valve body (Reclaimed Water Model)
- See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- It is complete: the valve ships with TOTO's 3/4" vacuum breaker set for a top spud urinal.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.
- Will it fit my urinal?
- It is for a urinal with a 3/4" top spud inlet. Pair it with a urinal bowl rated for 0.125 GPF.
Specifications
- Supply Inlet: 3/4"
- Spud Size: 3/4"
- Application: Domestic Water
- Operation: Sensor
- MPN: TEU1UAi412#CP
- Certifications: ADA, CALGreen, WaterSense
- Fixture Served: Urinal
- Gallons per Flush (GPF): 0.125
- Body Style: Exposed
- Spud Position: Top Spud
- Vacuum Breaker: Atmospheric Vacuum Breaker
- Power Source: SSPS (Turbine)
- Manual Override: True Mechanical Override
- IoT Connectivity: IoT-Enabled (LoRa Card Included)
- Finish: Polished Chrome
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | EcoPower | Application | Domestic Water |
| Operation | Sensor | Fixture Served | Urinal |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 0.125 gal | Spud connection | Top Spud |
| Body style | Exposed | Connectivity | IoT-Enabled (LoRa Card Included) |
| Override type | True Mechanical Override | Power source | SSPS (Turbine) |
Certifications & Standards
| ADA | CALGreen |
| WaterSense | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Urinal
| Urinal
| Urinal
|
| Series | EcoPower
| EcoPower
| EcoPower
| EcoPower
| EcoPower
| EcoPower
|
| Spec Sheet | — | — | — | |||
| Install Sheet | — | — | — | |||
| Inlet Size | 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Outlet Size | 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, CALGreen, WaterSense
| ADA, WaterSense
| ADA, CALGreen, WaterSense
| ADA
| ADA
| ADA
|
