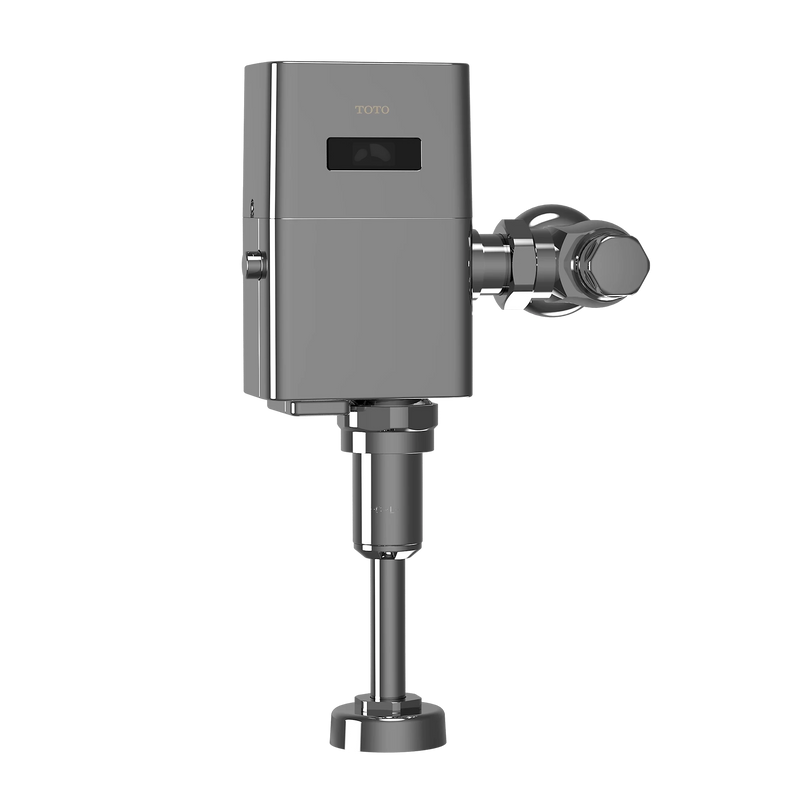

TOTO ECOPOWER Touchless Urinal Flush Valve, 0.125 GPF, Exposed, i Series IoT-Ready, with 3/4" Top Spud Vacuum Breaker Set, Polished Chrome - TEU1UAi12#CP

The TOTO TEU1UAi12#CP is an ECOPOWER touchless (sensor) flush valve for 0.125 GPF urinals with a 3/4" top spud inlet, exposed. It ships complete with TOTO's 3/4" angle stop and 3/4" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. It is IoT-ready; the IoT communication card is sold separately.

Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology. A special version of this flush valve works with reclaimed water systems.

Features

• 0.125 GPF
• Self-powered hydroelectric flush valve system
• No minimum daily usage requirement
• Durable chrome plated body with tamper-proof screws and solid bronze valve body
• Neutral rough-in and adjustable tail piece connection
• True mechanical flush override
• Smart sensor with self-adjusting detection range
• 6-second detection time with no flush delay
• Automatic maintenance flush after 12 hours of inactivity
• For urinal with 3/4" top spud inlet
• ADA compliant
• EPD coated valve body (Reclaimed Water Model)
• See product Spec Sheet (X) version for Reclaimed Water Quality Parameters

Common Questions

Is this the valve only, or does it include the vacuum breaker?

It is complete: the valve ships with TOTO's 3/4" vacuum breaker set for a top spud urinal.

Does it need electrical power?

No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.

Will it fit my urinal?

It is for a urinal with a 3/4" top spud inlet. Pair it with a urinal bowl rated for 0.125 GPF.

Specifications

• Supply Inlet: 3/4"
• Spud Size: 3/4"
• Application: Domestic Water
• Operation: Sensor
• MPN: TEU1UAi12#CP
• Certifications: ADA, CALGreen, WaterSense
• Fixture Served: Urinal
• Gallons per Flush (GPF): 0.125
• Body Style: Exposed
• Spud Position: Top Spud
• Vacuum Breaker: Atmospheric Vacuum Breaker
• Power Source: SSPS (Turbine)
• Manual Override: True Mechanical Override
• IoT Connectivity: Smart Capable with Adapter
• Finish: Polished Chrome
