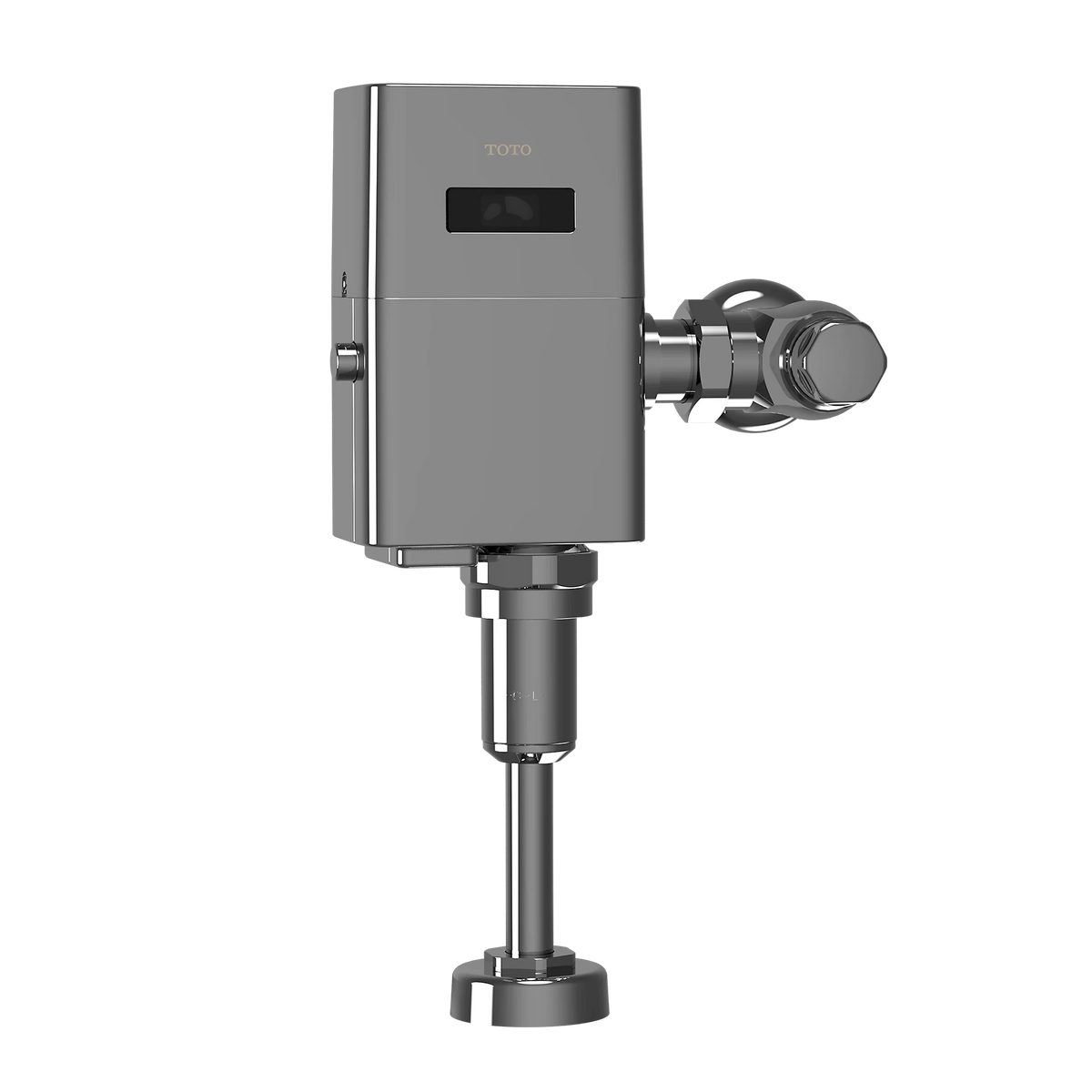

The TOTO TEU1LAXi12#CP is an ECOPOWER touchless (sensor) flush valve for 0.5 GPF urinals with a 3/4" top spud inlet, exposed. It ships complete with TOTO's 3/4" angle stop and 3/4" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. This X model is built for reclaimed water systems, with an EPD-coated valve body. It is IoT-ready; the IoT communication card is sold separately.
Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology. A special version of this flush valve works with reclaimed water systems.
Features
- High-Efficiency flow rate of 0.5 GPF
- Self-powered hydroelectric flush valve system
- No minimum daily usage requirement
- Durable chrome plated body with tamper-proof screws and solid bronze valve body
- Neutral rough-in and adjustable tail piece connection
- True mechanical flush override
- Smart sensor with self-adjusting detection range
- 6-second detection time with no flush delay
- Automatic maintenance flush after 12 hours of inactivity
- For urinal with 3/4" top spud inlet
- ADA compliant
- EPD coated valve body (Reclaimed Water Model)
- See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- It is complete: the valve ships with TOTO's 3/4" vacuum breaker set for a top spud urinal.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.
- Will it fit my urinal?
- It is for a urinal with a 3/4" top spud inlet. Pair it with a urinal bowl rated for 0.5 GPF.
- Can it run on reclaimed water?
- Yes. The X model is TOTO's reclaimed water version, with an EPD-coated valve body. Check TOTO's X spec sheet for the reclaimed water quality parameters.
Specifications
- Supply Inlet: 3/4"
- Spud Size: 3/4"
- Application: Reclaimed Water
- Operation: Sensor
- MPN: TEU1LAXi12#CP
- Certifications: ADA, WaterSense
- Fixture Served: Urinal
- Gallons per Flush (GPF): 0.5
- Body Style: Exposed
- Spud Position: Top Spud
- Vacuum Breaker: Atmospheric Vacuum Breaker
- Power Source: SSPS (Turbine)
- Manual Override: True Mechanical Override
- IoT Connectivity: Smart Capable with Adapter
- Finish: Polished Chrome
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | EcoPower | Application | Reclaimed Water |
| Operation | Sensor | Fixture Served | Urinal |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 0.5 gal | Spud connection | Top Spud |
| Body style | Exposed | Connectivity | Smart Capable with Adapter |
| Override type | True Mechanical Override | Power source | SSPS (Turbine) |
Certifications & Standards
| ADA | WaterSense |
