Specifications
Description

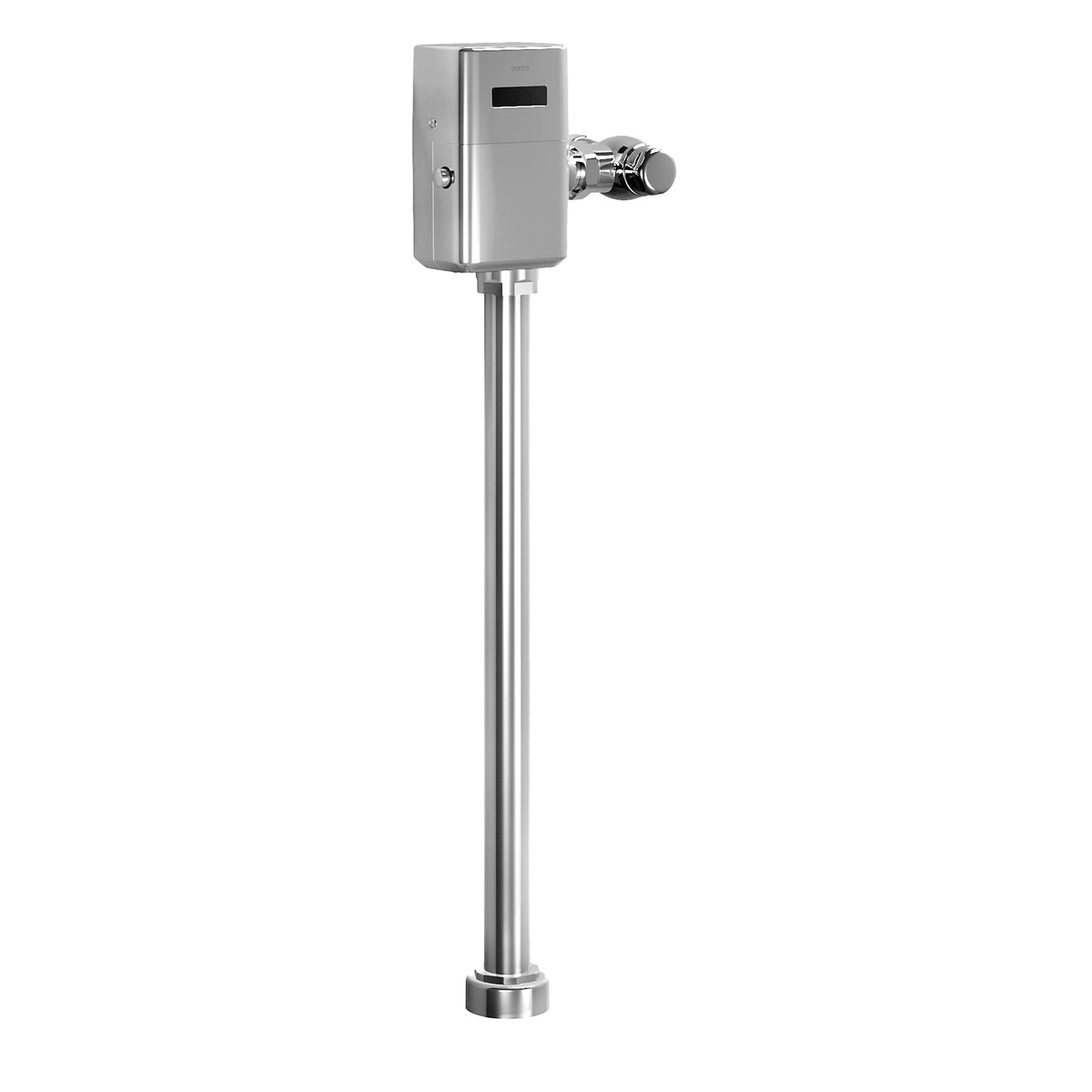

The TOTO TET6UBi432#CP is an ECOPOWER touchless (sensor) flush valve for 1.0 GPF toilets with a 1-1/2" top spud inlet, exposed, for a 24-1/2" vacuum breaker tube. It ships complete with TOTO's 1" angle stop and 1-1/2" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. It includes the long-range (LoRa) IoT communication card.
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.
Features
- 1.0 GPF
- Self-Powered hydroelectric flush valve system
- No minimum daily usage requirement
- Durable Chrome plated body with tamper-proof screws and solid bronze valve body
- Self-cleaning piston valve with 360 degree filter screen
- Neutral rough-in
- True mechanical flush override
- Smart sensor with self-adjusting detection range
- 6 Second detection time to prevent ghost flushing
- ADA Compliant
- For toilet with 1-1/2" top spud inlet using 24-1/2" vacuum breaker tube
- Exposed flush valve with 1" angle stop and 1-1/2" vacuum breaker set
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- It is complete: the valve ships with TOTO's 1-1/2" vacuum breaker set for a top spud toilet.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.
- Will it fit my toilet?
- It is for a toilet with a 1-1/2" top spud inlet. Pair it with a toilet bowl rated for 1.0 GPF.
Specifications
- Supply Inlet: 1"
- Spud Size: 1-1/2"
- Application: Domestic Water
- Operation: Sensor
- MPN: TET6UBi432#CP
- Certifications: ADA, WaterSense, CALGreen
- Fixture Served: Water Closet
- Gallons per Flush (GPF): 1.0
- Body Style: Exposed
- Spud Position: Top Spud
- Vacuum Breaker: Atmospheric Vacuum Breaker
- Power Source: SSPS (Turbine)
- Manual Override: True Mechanical Override
- IoT Connectivity: IoT-Enabled (LoRa Card Included)
- Finish: Polished Chrome
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | EcoPower | Application | Domestic Water |
| Operation | Sensor | Fixture Served | Water Closet |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 1.0 gal | Spud connection | Top Spud |
| Body style | Exposed | Connectivity | IoT-Enabled (LoRa Card Included) |
| Override type | True Mechanical Override | Power source | SSPS (Turbine) |
Certifications & Standards
| ADA | WaterSense |
| CALGreen | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
| Water Closet
| Water Closet
| Water Closet
| Water Closet
|
| Series | EcoPower
| EcoPower
| EcoPower
| EcoPower
| EcoPower
| EcoPower
|
| Inlet Size | 1"
| 1"
| 1"
| 1"
| 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
| 1-1/2"
| 1-1/2"
| 1-1/2"
| 1-1/2"
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, WaterSense, CALGreen
| ADA
| ADA
| ADA
| ADA
| ADA
|
