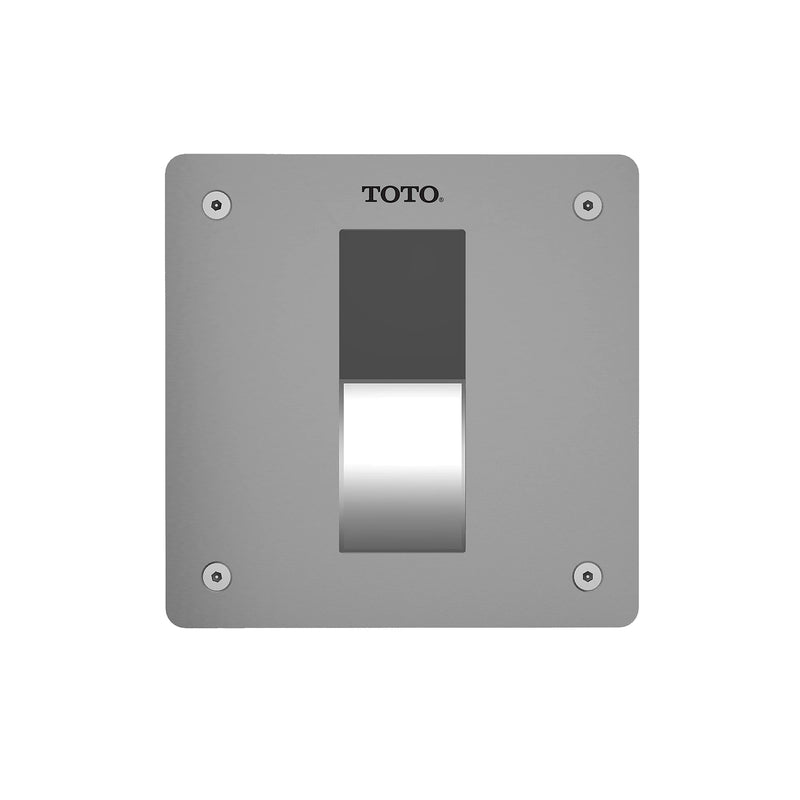

The TOTO TET3UBi#SS is an ECOPOWER touchless (sensor) flush valve for 1.0 GPF toilets, concealed behind a 4" x 4" stainless steel cover plate. This is the valve only: the vacuum breaker and angle stop set is sold separately. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. It is IoT-ready; the IoT communication card is sold separately.
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.
Features
- 1.0 GPF
- Self-powered hydroelectric flush valve system
- No minimum daily usage requirement
- 4” x 4” stainless steel cover plate with brushed satin finish and solid bronze valve body
- Self-cleaning piston valve with 360° filter screen
- Neutral rough-in and adjustable tail piece connection
- Manual flush override
- Smart sensor with self-adjusting detection range
- 6 second detection time to prevent ghost flushing
- Contributes to earning credits in LEED®
- Protects trap seal with a maintenance flush if not used in a 24 hr period
- ADA Compliant
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- Valve only. It will not connect to the fixture without a vacuum breaker and angle stop set, sold separately. The complete version with the vacuum breaker set is TET3UBi31#SS.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement.
- Will it fit my toilet?
- It serves a toilet with a 1-1/2" spud. As a concealed valve only, it pairs with either a top spud or a back spud vacuum breaker set; choose the set that matches the bowl. Pair it with a toilet bowl rated for 1.0 GPF.
Specifications
-
Supply Inlet: 1"
-
Spud Size: 1-1/2"
-
Application: Domestic Water
-
Operation: Sensor
-
MPN: TET3UBi#SS
-
Certifications: ADA, CALGreen, WaterSense
-
Fixture Served: Water Closet
-
Gallons per Flush (GPF): 1.0
-
Body Style: Concealed
-
Cover Plate: 4x4 SS Cover Plate (Recess)
-
Vacuum Breaker: Not Included (Valve Only)
-
Power Source: SSPS (Turbine)
-
IoT Connectivity: Smart Capable with Adapter
-
Finish: Stainless Steel
