TOTO ECOPOWER Touchless Toilet Flush Valve, 1.0 GPF, Concealed with 14" x 12" Cover Plate, i Series IoT-Ready, with 1-1/2" Top Spud Vacuum Breaker Set, Stainless Steel - TET2UBi32#SS

The TOTO TET2UBi32#SS is an ECOPOWER touchless (sensor) flush valve for 1.0 GPF toilets with a 1-1/2" top spud inlet, concealed behind a 14" x 12" stainless steel cover plate. It ships complete with TOTO's 1" angle stop and 1-1/2" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. It is IoT-ready; the IoT communication card is sold separately.

The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.

Features

• 1.0 GPF
• Self-cleaning piston valve with 360° filter screen
• No minimum daily usage requirement

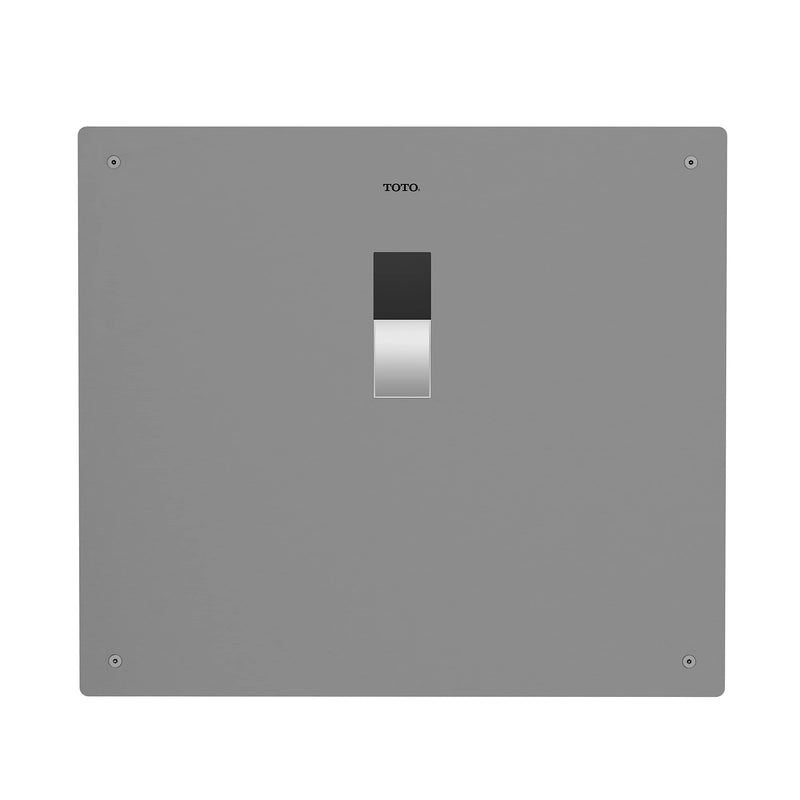

• Heavy duty 14” x 12” stainless steel cover plate with satin finish and solid bronze valve body
• Self-cleaning piston valve with 360° filter screen
• Neutral rough-in and adjustable tail piece connection
• Manual flush override
• Smart sensor with self-adjusting detection range
• 6 second detection time to prevent ghost flushing
• Concealed flush valve with 1” angle stop and 1-1/2” vacuum breaker set
• Contributes to earning credits in LEED®
• Protects trap seal with a maintenance flush if not used in a 24 hr period
• ADA Compliant

Common Questions

Is this the valve only, or does it include the vacuum breaker?

It is complete: the valve ships with TOTO's 1-1/2" vacuum breaker set for a top spud toilet.

Does it need electrical power?

No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement.

Will it fit my toilet?

It is for a toilet with a 1-1/2" top spud inlet. Pair it with a toilet bowl rated for 1.0 GPF.

Specifications

• Supply Inlet: 1"
• Spud Size: 1-1/2"
• Application: Domestic Water
• Operation: Sensor
• MPN: TET2UBi32#SS
• Certifications: ADA, CALGreen, WaterSense
• Fixture Served: Water Closet
• Gallons per Flush (GPF): 1.0
• Body Style: Concealed
• Cover Plate: 14x12 SS Cover Plate
• Spud Position: Top Spud
• Vacuum Breaker: Atmospheric Vacuum Breaker
• Power Source: SSPS (Turbine)
• IoT Connectivity: Smart Capable with Adapter
• Finish: Stainless Steel
