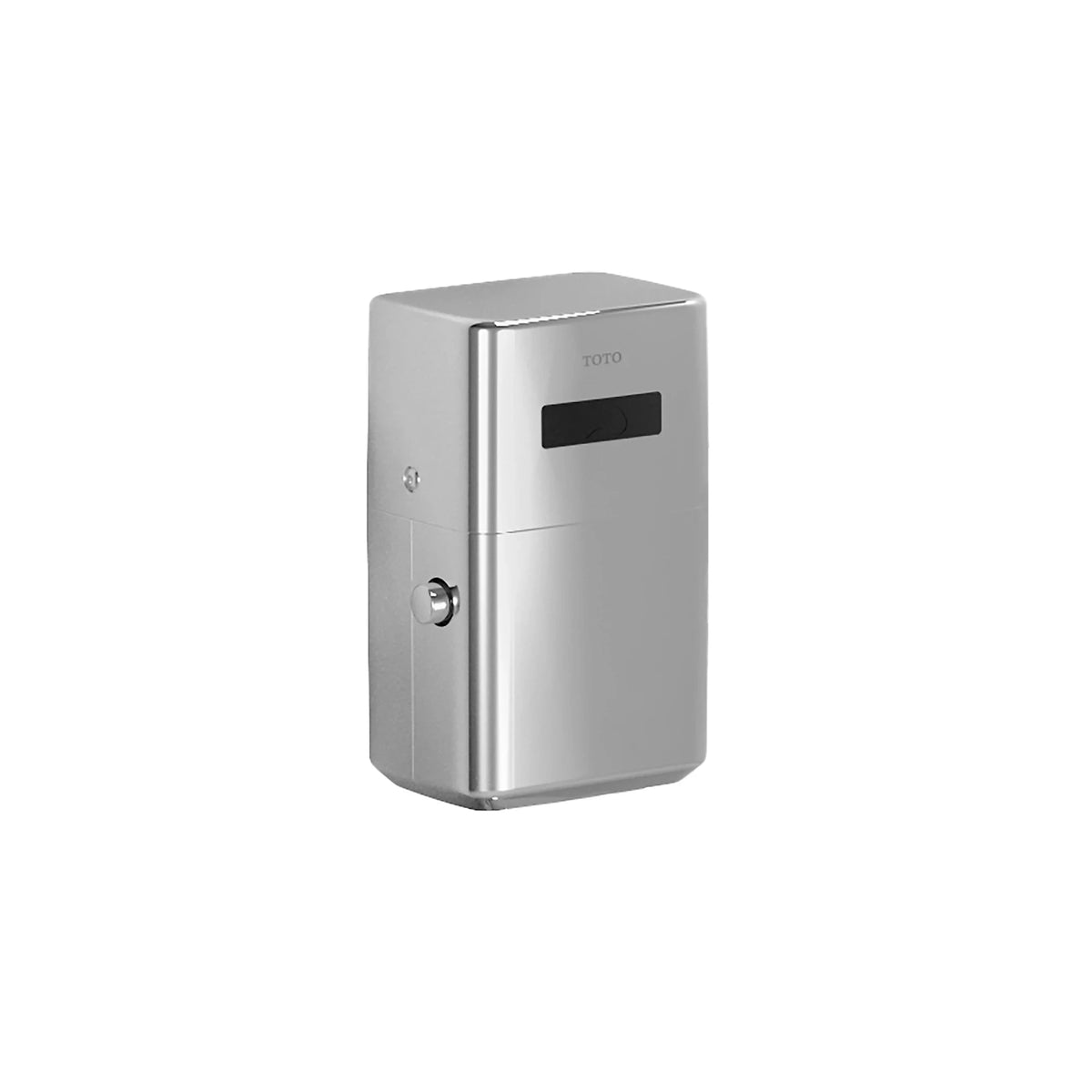

The TOTO TET1UBXi#CP is an ECOPOWER touchless (sensor) flush valve for 1.0 GPF toilets with a 1-1/2" top spud inlet, exposed. This is the valve only: the vacuum breaker and angle stop set is sold separately. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. This X model is built for reclaimed water systems, with an EPD-coated valve body. It is IoT-ready; the IoT communication card is sold separately.
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces. A special version of this flush valve works with reclaimed water systems.
Features
- 1.0 GPF
- Self-Powered hydroelectric flush valve system
- No minimum daily usage requirement
- Durable Chrome plated body with tamper-proof screws and solid bronze valve body
- Self-cleaning piston valve with 360 degree filter screen
- Neutral rough-in and adjustable tail piece connection
- True mechanical flush override
- Smart sensor with self-adjusting detection range
- 6 Second detection time to prevent ghost flushing
- For toilet with 1-1/2” top spud inlet
- Protects trap seal with a maintenance flush if not used in a 24 hr period
- ADA Compliant
- EPD coated valve body (Reclaimed Water Model)
- See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- Valve only. It will not connect to the fixture without a vacuum breaker and angle stop set, sold separately. The complete version with the vacuum breaker set is TET1UBXi32#CP.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.
- Will it fit my toilet?
- It is for a toilet with a 1-1/2" top spud inlet. Pair it with a toilet bowl rated for 1.0 GPF.
- Can it run on reclaimed water?
- Yes. The X model is TOTO's reclaimed water version, with an EPD-coated valve body. Check TOTO's X spec sheet for the reclaimed water quality parameters.
Specifications
- Supply Inlet: 1"
- Spud Size: 1-1/2"
- Application: Reclaimed Water
- Operation: Sensor
- MPN: TET1UBXi#CP
- Certifications: ADA, WaterSense, CALGreen
- Fixture Served: Water Closet
- Gallons per Flush (GPF): 1.0
- Body Style: Exposed
- Spud Position: Top Spud
- Vacuum Breaker: Not Included (Valve Only)
- Power Source: SSPS (Turbine)
- Manual Override: True Mechanical Override
- IoT Connectivity: Smart Capable with Adapter
- Finish: Polished Chrome
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | EcoPower | Application | Reclaimed Water |
| Operation | Sensor | Fixture Served | Water Closet |
| Backflow device | Not Included (Valve Only) | Coating | Polished Chrome |
| Cycle volume gal | 1.0 gal | Spud connection | Top Spud |
| Body style | Exposed | Connectivity | Smart Capable with Adapter |
| Override type | True Mechanical Override | Power source | SSPS (Turbine) |
Certifications & Standards
| ADA | WaterSense |
| CALGreen | — |
