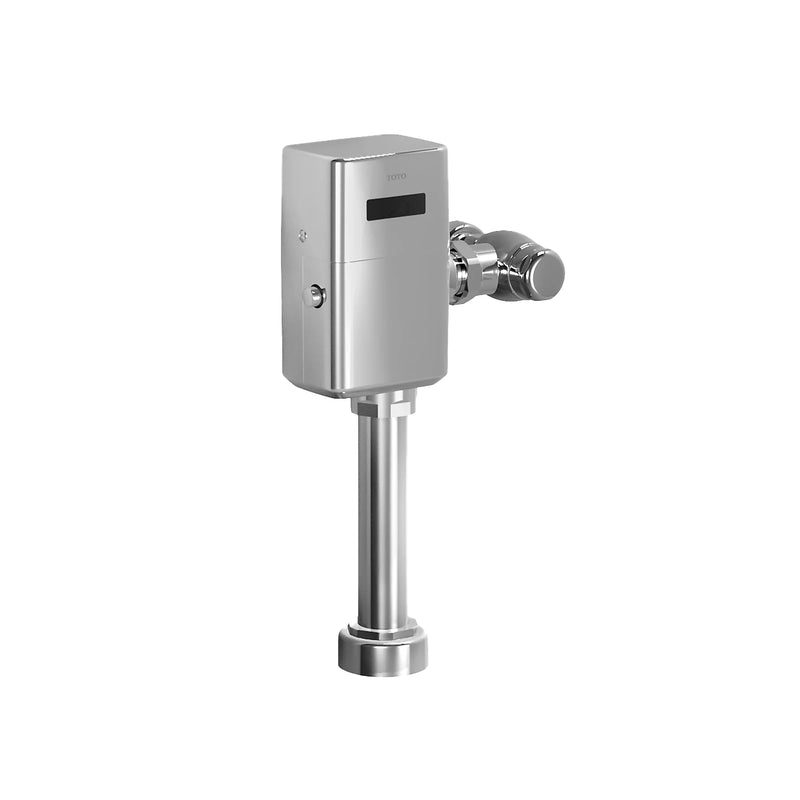

The TOTO TET1LBXi432#CP is an ECOPOWER touchless (sensor) flush valve for 1.28 GPF toilets with a 1-1/2" top spud inlet, exposed. It ships complete with TOTO's 1" angle stop and 1-1/2" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. This X model is built for reclaimed water systems, with an EPD-coated valve body. It includes the long-range (LoRa) IoT communication card.
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces. A special version of this flush valve works with reclaimed water systems.
Features
- 1.28 GPF
- Self-Powered hydroelectric flush valve system
- No minimum daily usage requirement
- Durable Chrome plated body with tamper-proof screws and solid bronze valve body
- Self-cleaning piston valve with 360 degree filter screen
- Neutral rough-in and adjustable tail piece connection
- True mechanical flush override
- Smart sensor with self-adjusting detection range
- 6 Second detection time to prevent ghost flushing
- For toilet with 1-1/2” top spud inlet
- Exposed flush valve with 1” angle stop and 1-1/2” vacuum breaker set
- Contributes to earning credits in LEED®
- Protects trap seal with a maintenance flush if not used in a 24 hr period
- ADA Compliant
- EPD coated valve body (Reclaimed Water Model)
- See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- It is complete: the valve ships with TOTO's 1-1/2" vacuum breaker set for a top spud toilet.
- Does it need electrical power?
- No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.
- Will it fit my toilet?
- It is for a toilet with a 1-1/2" top spud inlet. Pair it with a toilet bowl rated for 1.28 GPF.
- Can it run on reclaimed water?
- Yes. The X model is TOTO's reclaimed water version, with an EPD-coated valve body. Check TOTO's X spec sheet for the reclaimed water quality parameters.
Specifications
-
Supply Inlet: 1"
-
Spud Size: 1-1/2"
-
Application: Reclaimed Water
-
Operation: Sensor
-
MPN: TET1LBXi432#CP
-
Certifications: ADA, WaterSense, CALGreen
-
Fixture Served: Water Closet
-
Gallons per Flush (GPF): 1.28
-
Body Style: Exposed
-
Spud Position: Top Spud
-
Vacuum Breaker: Atmospheric Vacuum Breaker
-
Power Source: SSPS (Turbine)
-
Manual Override: True Mechanical Override
-
IoT Connectivity: IoT-Enabled (LoRa Card Included)
-
Finish: Polished Chrome
