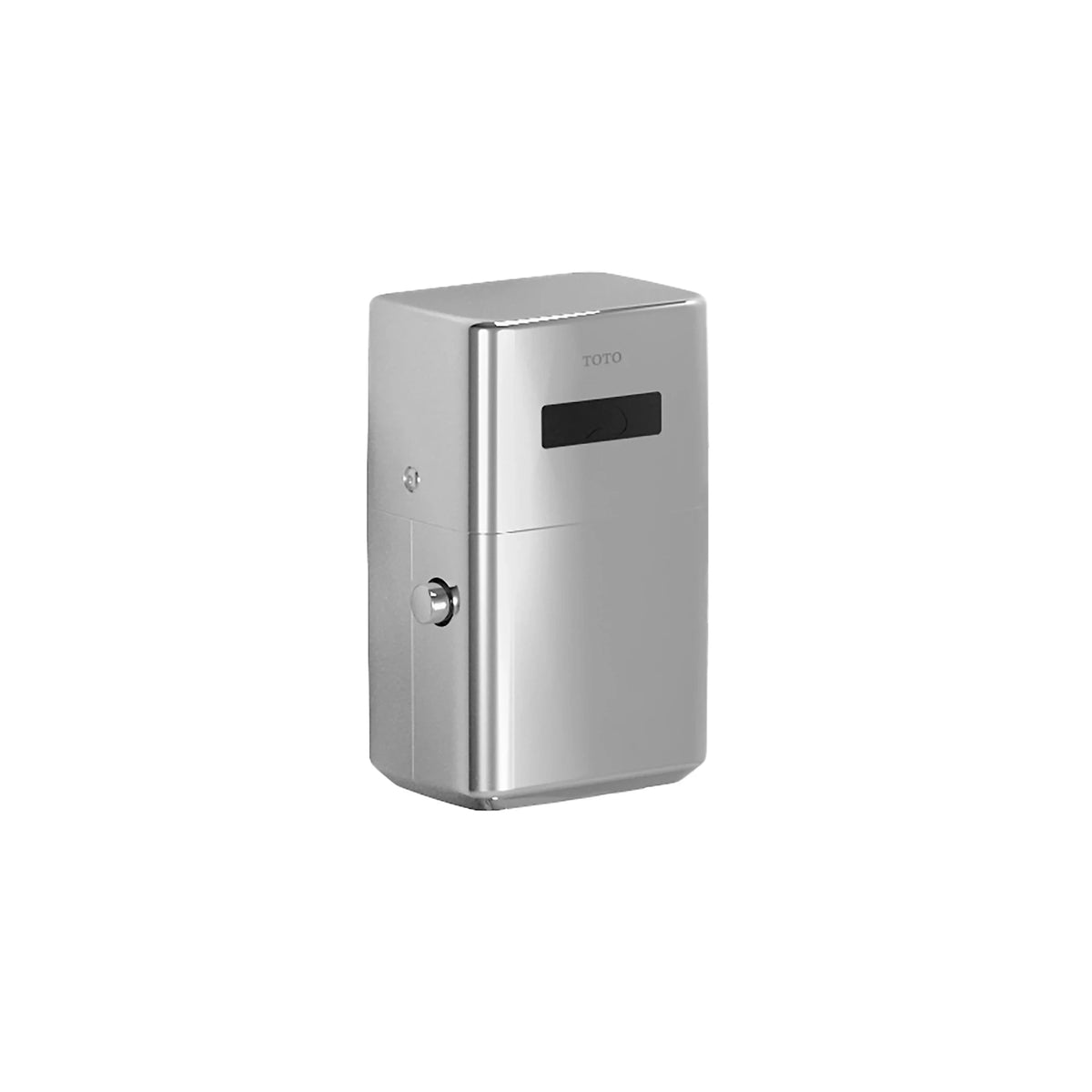

TOTO ECOPOWER Touchless Toilet Flush Valve, 1.28 GPF, Exposed, Reclaimed Water, i Series IoT with LoRa Card, Valve Only, Polished Chrome - TET1LBXi4#CP

The TOTO TET1LBXi4#CP is an ECOPOWER touchless (sensor) flush valve for 1.28 GPF toilets with a 1-1/2" top spud inlet, exposed. This is the valve only: the vacuum breaker and angle stop set is sold separately. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. This X model is built for reclaimed water systems, with an EPD-coated valve body. It includes the long-range (LoRa) IoT communication card.

The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces. A special version of this flush valve works with reclaimed water systems.

Features

• 1.28 GPF
• Self-Powered hydroelectric flush valve system
• No minimum daily usage requirement
• Durable Chrome plated body with tamper-proof screws and solid bronze valve body
• Self-cleaning piston valve with 360 degree filter screen
• Neutral rough-in and adjustable tail piece connection
• True mechanical flush override
• Smart sensor with self-adjusting detection range
• 6 Second detection time to prevent ghost flushing
• For toilet with 1-1/2” top spud inlet
• EPD coated valve body (Reclaimed Water Model)
• Protects trap seal with a maintenance flush if not used in a 24 hr period
• ADA Compliant
• See product Spec Sheet (X) version for Reclaimed Water Quality Parameters

Common Questions

Is this the valve only, or does it include the vacuum breaker?

Valve only. It will not connect to the fixture without a vacuum breaker and angle stop set, sold separately. The complete version with the vacuum breaker set is TET1LBXi432#CP.

Does it need electrical power?

No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.

Will it fit my toilet?

It is for a toilet with a 1-1/2" top spud inlet. Pair it with a toilet bowl rated for 1.28 GPF.

Can it run on reclaimed water?

Yes. The X model is TOTO's reclaimed water version, with an EPD-coated valve body. Check TOTO's X spec sheet for the reclaimed water quality parameters.

Specifications

• Supply Inlet: 1"
• Spud Size: 1-1/2"
• Application: Reclaimed Water
• Operation: Sensor
• MPN: TET1LBXi4#CP
• Certifications: ADA, WaterSense, CALGreen
• Fixture Served: Water Closet
• Gallons per Flush (GPF): 1.28
• Body Style: Exposed
• Spud Position: Top Spud
• Vacuum Breaker: Not Included (Valve Only)
• Power Source: SSPS (Turbine)
• Manual Override: True Mechanical Override
• IoT Connectivity: IoT-Enabled (LoRa Card Included)
• Finish: Polished Chrome
