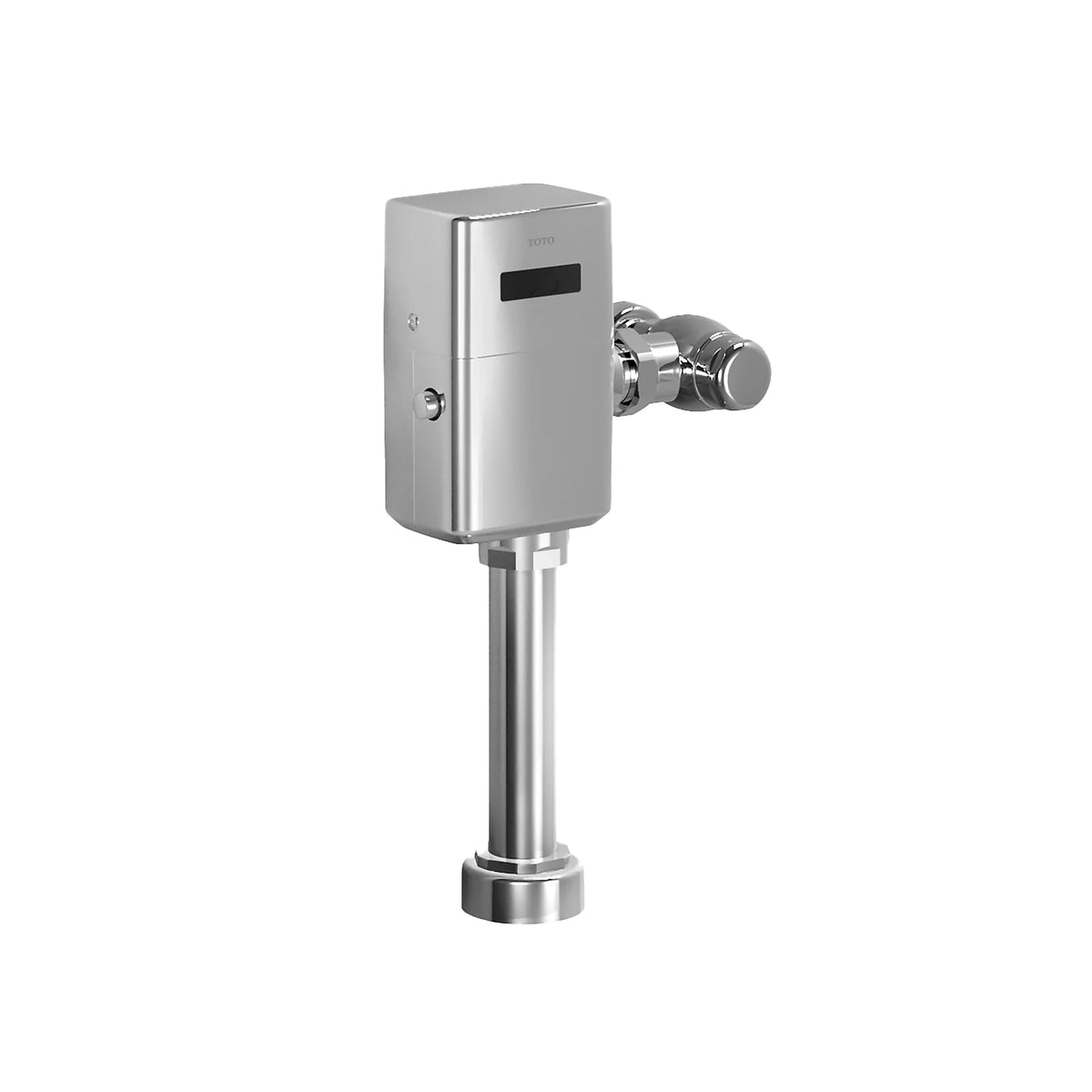

TOTO ECOPOWER Touchless Toilet Flush Valve, 1.28 GPF, Exposed, Reclaimed Water, i Series IoT-Ready, with 1-1/2" Top Spud Vacuum Breaker Set, Polished Chrome - TET1LBXi32#CP

The TOTO TET1LBXi32#CP is an ECOPOWER touchless (sensor) flush valve for 1.28 GPF toilets with a 1-1/2" top spud inlet, exposed. It ships complete with TOTO's 1" angle stop and 1-1/2" vacuum breaker set. Its water-driven turbine recharges the power supply during use, so the valve is self-powered with no minimum daily usage requirement. This X model is built for reclaimed water systems, with an EPD-coated valve body. It is IoT-ready; the IoT communication card is sold separately.

The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces. A special version of this flush valve works with reclaimed water systems.

Features

• 1.28 GPF
• Self-Powered hydroelectric flush valve system
• No minimum daily usage requirement
• Durable Chrome plated body with tamper-proof screws and solid bronze valve body
• Self-cleaning piston valve with 360 degree filter screen
• Neutral rough-in and adjustable tail piece connection
• True mechanical flush override
• Smart sensor with self-adjusting detection range
• 6 Second detection time to prevent ghost flushing
• For toilet with 1-1/2” top spud inlet
• Exposed flush valve with 1” angle stop and 1-1/2” vacuum breaker set
• Contributes to earning credits in LEED®
• Protects trap seal with a maintenance flush if not used in a 24 hr period
• ADA Compliant
• EPD coated valve body (Reclaimed Water Model)
• See product Spec Sheet (X) version for Reclaimed Water Quality Parameters

Common Questions

Is this the valve only, or does it include the vacuum breaker?

It is complete: the valve ships with TOTO's 1-1/2" vacuum breaker set for a top spud toilet.

Does it need electrical power?

No outside power: TOTO builds it as a self-powered hydroelectric system. Water flowing through the valve turns a turbine that recharges the power supply, and there is no minimum daily usage requirement. A true mechanical override still flushes it by hand.

Will it fit my toilet?

It is for a toilet with a 1-1/2" top spud inlet. Pair it with a toilet bowl rated for 1.28 GPF.

Can it run on reclaimed water?

Yes. The X model is TOTO's reclaimed water version, with an EPD-coated valve body. Check TOTO's X spec sheet for the reclaimed water quality parameters.

Specifications

• Supply Inlet: 1"
• Spud Size: 1-1/2"
• Application: Reclaimed Water
• Operation: Sensor
• MPN: TET1LBXi32#CP
• Certifications: ADA, WaterSense, CALGreen
• Fixture Served: Water Closet
• Gallons per Flush (GPF): 1.28
• Body Style: Exposed
• Spud Position: Top Spud
• Vacuum Breaker: Atmospheric Vacuum Breaker
• Power Source: SSPS (Turbine)
• Manual Override: True Mechanical Override
• IoT Connectivity: Smart Capable with Adapter
• Finish: Polished Chrome
