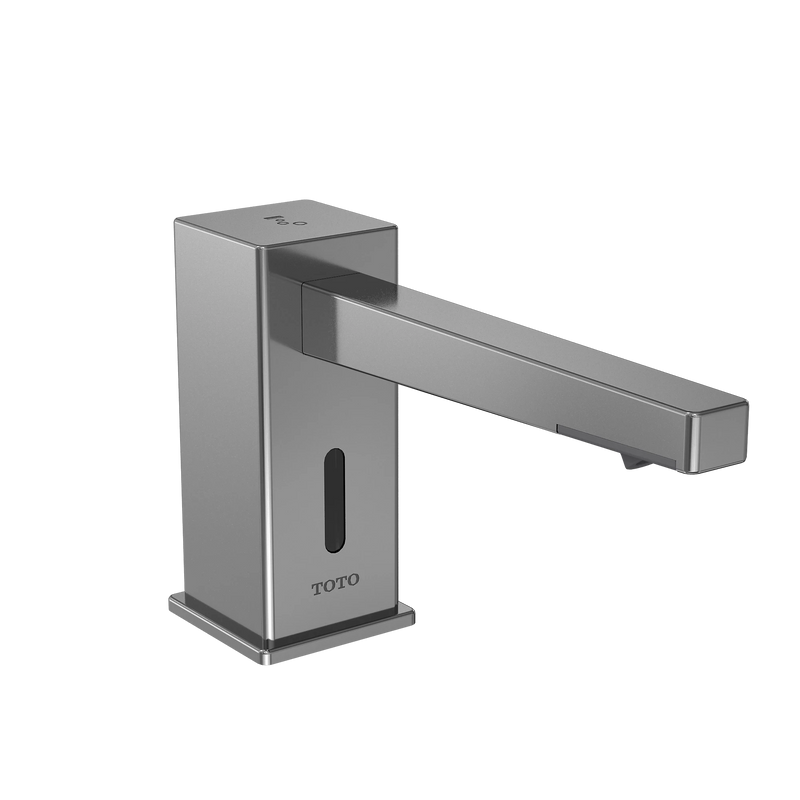

TOTO Touchless Foam Soap Dispenser Kit, 2 Square Spouts with Sub-Tank, Polished Chrome - TES204AE#CP

The TOTO TES204AE#CP is a touchless, sensor-operated foam soap dispenser kit: 2 square spouts fed by one controller with a 0.8 gal (3 L) reservoir and a 5.3 gal (20 L) sub-tank for longer runs between refills.

TOTO’s soap dispensers offer automatic, touchless operation for a more hygienic and comfortable experience. The new controller is designed with a compact body that uses less space and is separate from the soap reservoir creating easier installation and cleaner aesthetic. TOTO Biodegradable Green Seal™ Soap TSFB is required for this dispenser.

Features

• Sensor Operated automatic foaming soap dispenser
• Smart Sensor Senses User Presence
• Self-adjusting sensor spout with base unit, mounting hardware and supply lines
• ADA Compliant
• TOTO Soap required

Common Questions

What does it take to install?

Each spout needs a 1 to 1-1/8 in deck hole in a counter 1/4 to 1-1/8 in thick; the optional THP3140#CP escutcheon covers holes up to 1-1/2 in. The controller plugs into a 120 V AC outlet (55 in cord).

Which soap does it use?

TOTO soap is required: using any other soap voids the three-year warranty. TOTO lists TSF201 (four 1-gallon bottles, Green Seal GS-41), TSF205 (5-gallon pail) and TSFG1 (antibacterial, four 1-gallon bottles).

Specifications

• Warranty: 3 Years (requires TOTO soap)
• MPN: TES204AE#CP
• Product Role: Complete Dispenser Kit
• Number of Spouts: 2
• Kit Includes: 2 x Sensor Spout TLK08001G#CP;Controller with 0.8 gal (3 L) Reservoir TLK01106UA;5.3 gal (20 L) Sub-Tank TLK01401U;Mounting Hardware and Supply Lines
• Power Source: AC (Plug-In)
• Mount Type: Deck-Mount
• Finish: Polished Chrome

TOTO Spec Sheet Data

• Power Supply: 120 V AC, 55 in cord
• Controller Wattage: 6.5 W
• Reservoir: 0.8 gal (3 L)
• Sub-Tank: 5.3 gal (20 L)
• Sensor Range: 5-1/8 to 7-7/8 in, self-adjusting
• Soap Output: 0.04 oz per dispense (factory setting)
• Deck Thickness: 1/4 to 1-1/8 in

From TOTO's published spec sheet for this series.
