TOTO Touchless Foam Soap Dispenser Kit, 2 Spouts, IoT-Ready, Polished Chrome - TES202AJi#CP

The TOTO TES202AJi#CP is a touchless, sensor-operated foam soap dispenser kit: 2 spouts fed by one controller with a 0.8 gal (3 L) reservoir. It is IoT-ready; the communication card that enables monitoring is sold separately.

TOTO’s soap dispensers offer automatic, touchless operation for a more hygienic and comfortable experience. The new controller is designed with a compact body that uses less space and is separate from the soap reservoir creating easier installation and cleaner aesthetic. TOTO Biodegradable Green Seal™ Soap TSFB is required for this dispenser.

Features

• Sensor-operated foaming soap dispenser

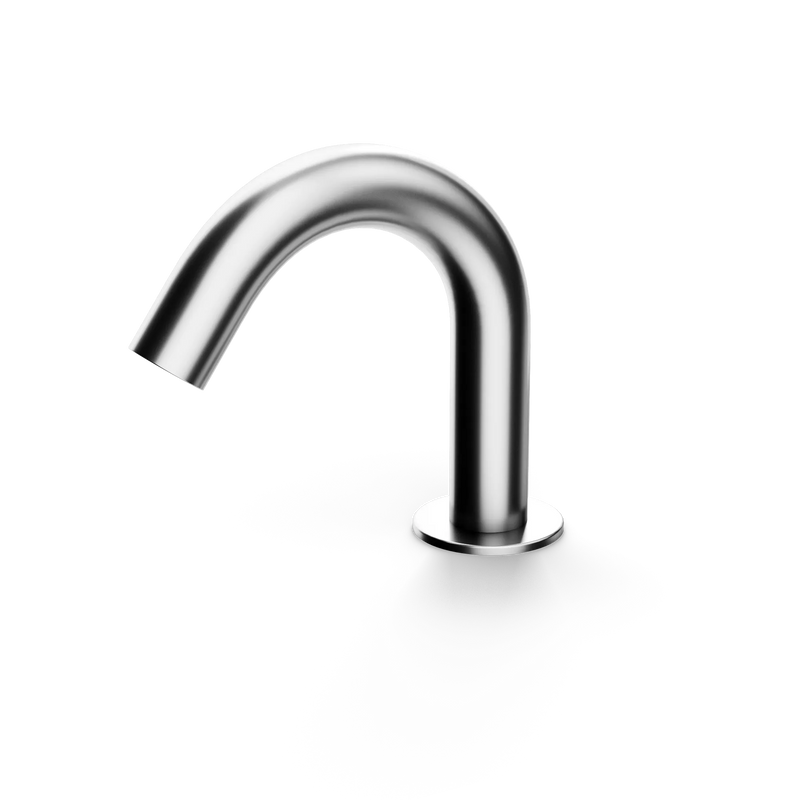

• Self-adjusting sensor spout with base unit, mounting hardware and supply lines
• Single-hole mount
• TOTO Soap required
• Refillable tank system
• IoT-enabled options available to remotely monitor usage rates, soap consumption, fixture performance and streamline operations in real time with instant alerts

Common Questions

What does it take to install?

Each spout needs a 1 to 1-3/16 in deck hole in a counter 1/4 to 1-1/8 in thick; the optional THP3140#CP escutcheon covers holes up to 1-1/2 in. The controller plugs into a 120 V AC outlet (55 in cord).

Which soap does it use?

TOTO soap is required: using any other soap voids the three-year warranty. TOTO lists TSF201 (four 1-gallon bottles, Green Seal GS-41), TSF205 (5-gallon pail) and TSFG1 (antibacterial, four 1-gallon bottles).

Is the IoT card included?

No. The kit is IoT-ready; order the communication card separately to enable monitoring.

Specifications

• Warranty: 3 Years (requires TOTO soap)
• MPN: TES202AJi#CP
• Product Role: Complete Dispenser Kit
• Number of Spouts: 2
• Kit Includes: 2 x Sensor Spout TLK09001U#CP;Controller with 0.8 gal (3 L) Reservoir TLK01102Ui;Mounting Hardware and Supply Lines
• Power Source: AC (Plug-In)
• Connectivity: Smart Capable with Adapter
• Mount Type: Deck-Mount
• Finish: Polished Chrome

TOTO Spec Sheet Data

• Power Supply: 120 V AC, 55 in cord
• Controller Wattage: 6.5 W
• Reservoir: 0.8 gal (3 L)
• Sensor Range: 5-1/8 to 7-7/8 in, self-adjusting
• Soap Output: 0.04 oz per dispense (factory setting)
• Deck Thickness: 1/4 to 1-1/8 in

From TOTO's published spec sheet for this series.
