Similar products
Specifications
Description

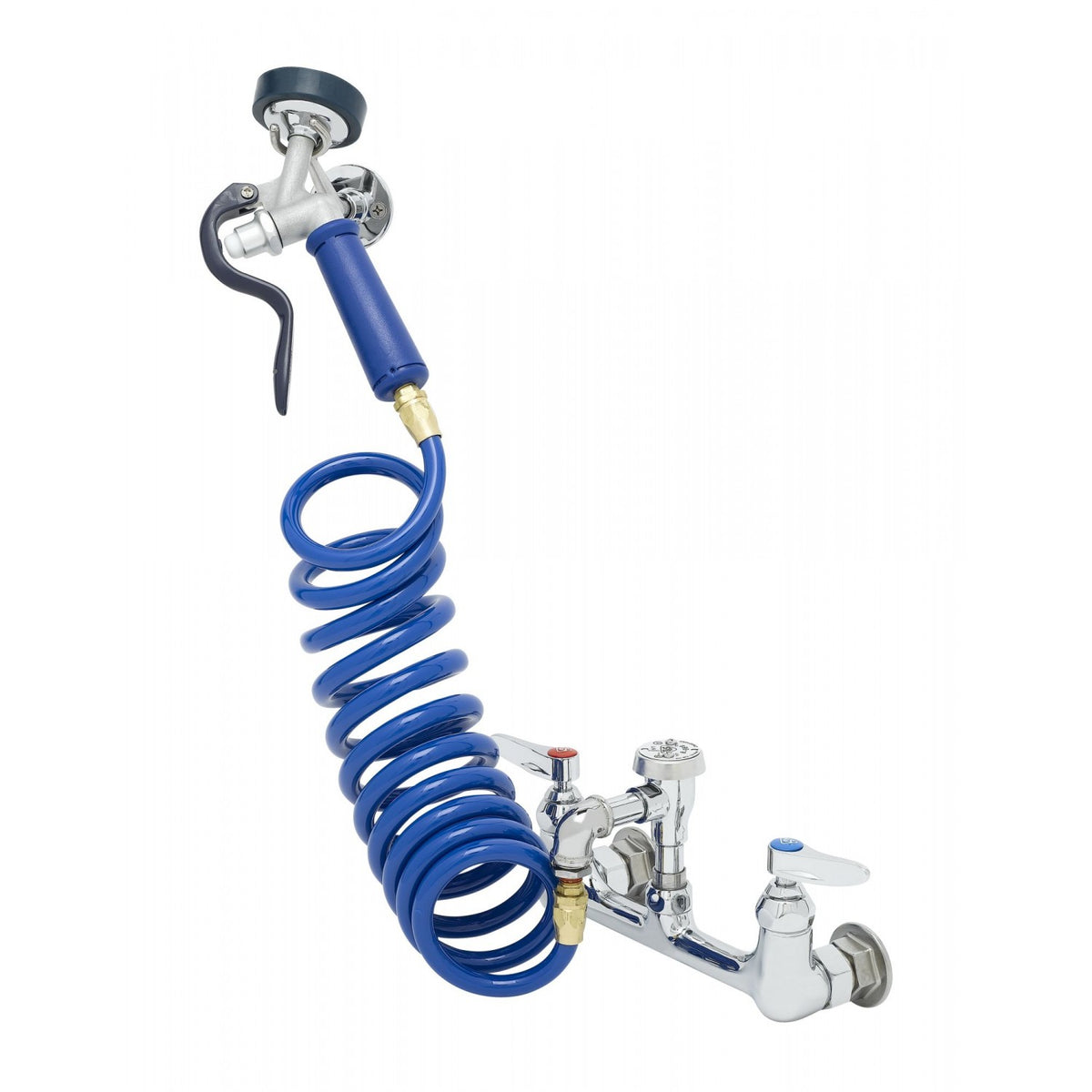

The T&S Brass PG-8WREV is an 8" wall-mount pet grooming faucet. It features a brass body. Rated to 40°F to 140°F.
Features
- 8" wall mount mixing faucet w/ chrome plated brass body
- Quarter-turn Eterna cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- EasyInstall riser with vacuum breaker
- 9' coiled hose w/ angled aluminum spray valve
- 1/2" NPT female Inlets
- Materials: Chrome plated body & spout, chrome plated metal handles, polyurethane hose and aluminum spray valve
Common Questions
- Is it approved for drinking water?
- No. T&S lists it as NSF 61 exempt (non-potable), so it is not for drinking-water service.
Specifications
- Inlet Size: 1/2"
- Connection: FNPT
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: PG-8WREV
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
- Mount Type: Wall-Mount
- Centers: 8"
- Flow Rate (GPM @ 60 psi): 4.12
- Hose Length (in): 108
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Vacuum Breaker
- Handle Style: Lever
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| PG-8WREV | 671262563826 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | FNPT |
Details
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Vacuum Breaker |
| Flow rate gpm | 4.12 GPM | Handle style | Lever |
| Hose length in | 108.0 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
| Cartridge type | Quarter-Turn Compression | Centers | 8" |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ASSE-1001 |
