Specifications
Description

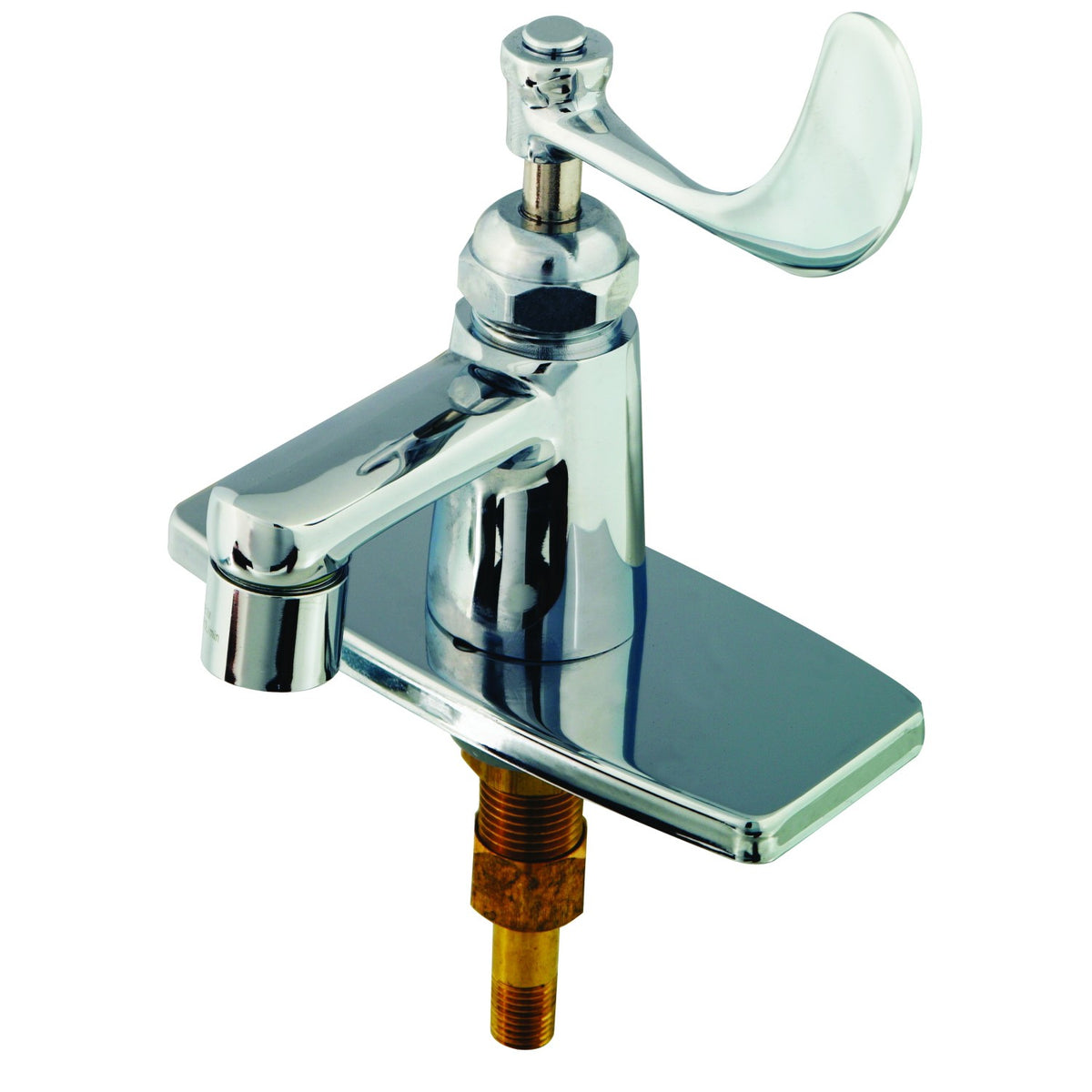

The T&S Brass B-2460 is a single-hole deck-mount lavatory faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Single hole, single temperature deck mount faucet
- 2.2 GPM vandal resistant aerator, Series 8 (B-0199-08)
- Quarter-turn Cerama cartridge w/ check valve
- 4” wrist action handle w/ blue index
- Anti-rotation deck plate
- 1/2” NPSM male inlet
- Tailpiece and nut for 1/4” NPT connection
- Material: Polished chrome plated brass body and chrome plated metal handle
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: NPSM
- Connection Gender: Male
- Body Material: Brass
- Warranty: One Year (Limited) / Cartridge: Lifetime
- MPN: B-2460
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: Single-Hole
- Faucet Holes: 1
- Flow Rate (GPM @ 60 psi): 2.2
- Outlet: Aerator
- Cartridge: Ceramic 1/4-Turn
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Wristblade
- Handle Length (in): 4
- Number of Handles: 1
- Vandal Resistant: Yes
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-2460 | 671262512343 | One Year (Limited) / Cartridge: Lifetime | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
| Connection Gender | Male | — | — |
Details
| Series | B-2460 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 2.2 GPM |
| Handle style | Wristblade | Hole count | 1 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Vandal resistant | Yes |
| Cartridge type | Ceramic 1/4-Turn | Centers | Single-Hole |
| Handle count | 1 | Handle length in | 4.0 |
| Outlet type | Aerator | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
Compare with similar products
| Series | B-2460
| B-2990
| B-2990
| B-2991
| B-2990
| B-2867
|
| Warranty | One Year (Limited) / Cartridge: Lifetime
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| MNPT
| MNPT
| NPSM
| MNPT
| MNPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
| Connection Gender | Male
| — | — | Male
| — | — |
