Description

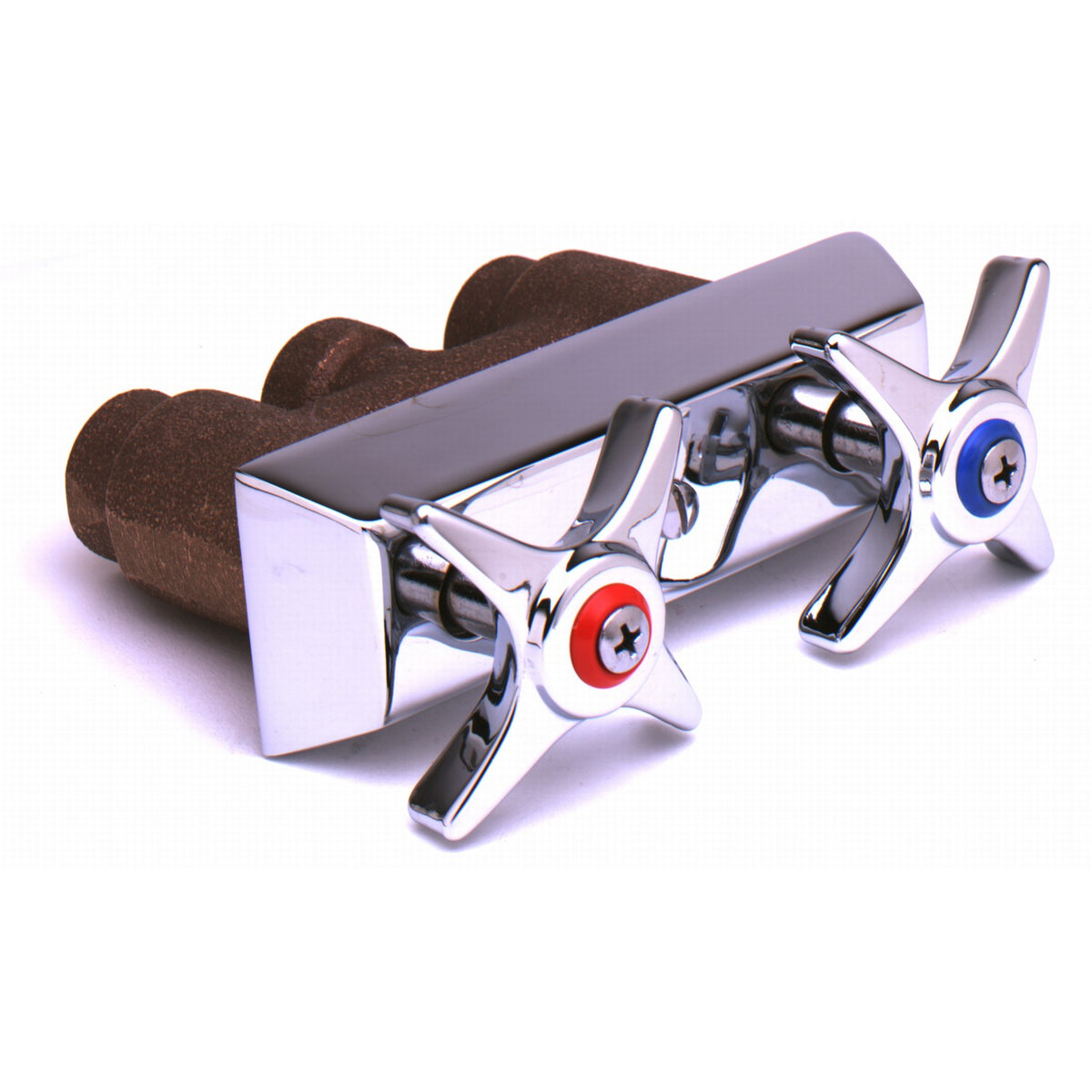

The T&S Brass B-0512 is a wall-mount concealed mixing faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- 3” concealed mixing faucet
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4-arm handles w/ color coded indexes
- 3/8” NPT female inlets
- 3/8” NPT female outlet
- Chrome plated escutcheon
- Material: Brass body, escutcheon and chrome plated metal handles
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0512
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Wall-Mount
- Body Style: Concealed
- Flow Rate (GPM @ 60 psi): 15.4
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Cross
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0512 | 671262005364 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 3/8" | End Connection | NPT |
Details
| Series | B-0512 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Body style | Concealed | Flow rate gpm | 15.4 GPM |
| Handle style | Cross | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
| Cartridge type | Quarter-Turn Compression | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
Compare with similar products
| Series | B-0512
| B-2492
| B-2465
| B-2271
| B-0710
| B-0708
|
| Warranty | One Year (Limited)
| One Year (Limited)
| One Year (Limited) / Cartridge: Lifetime
| One Year (Limited) / Cartridge: Lifetime
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Inlet Size | 3/8"
| 1/2"
| 1/2"
| — | 1/2"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPT
| FNPT
| FNPT
| — | NPSM
| MNPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
