Specifications
Description

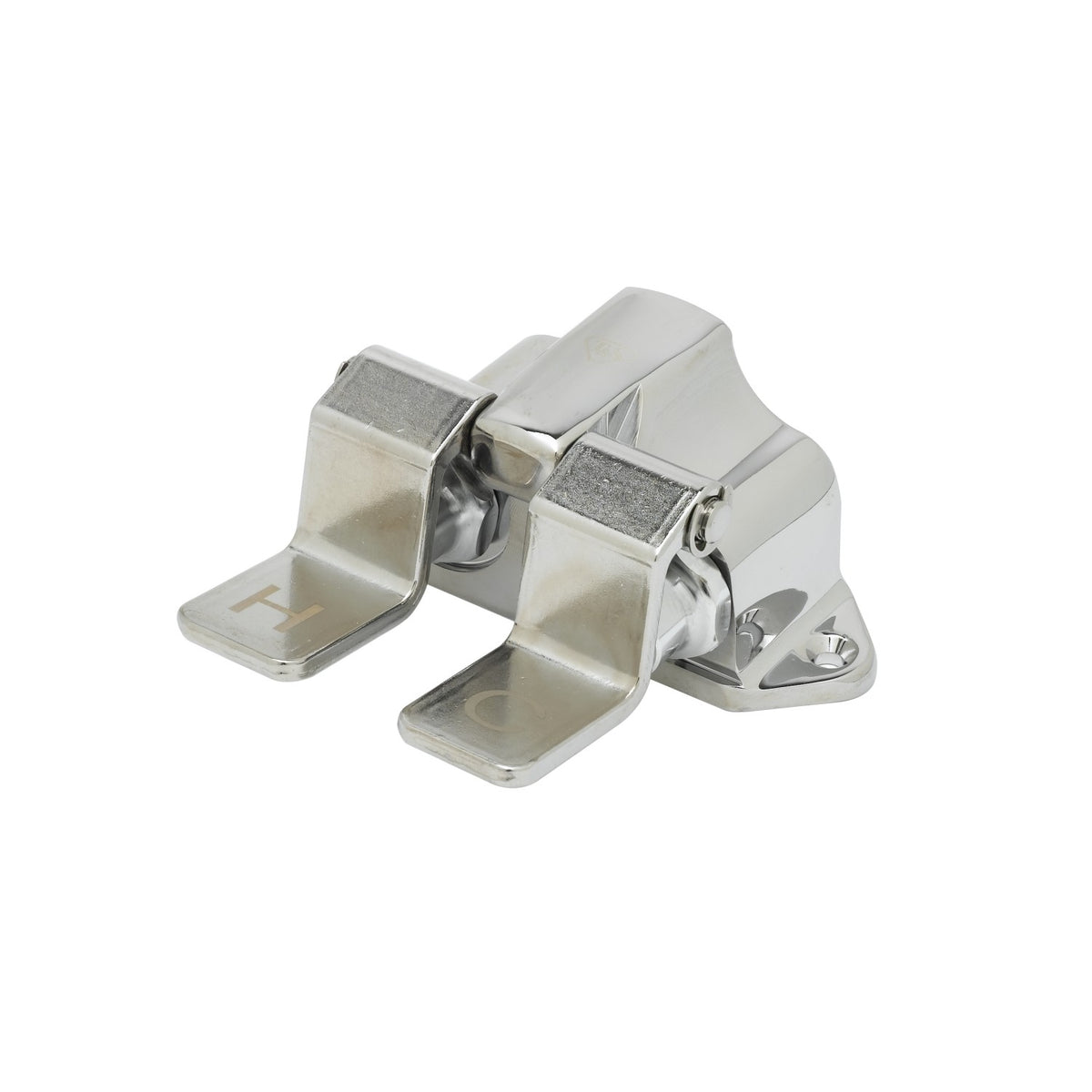

The T&S Brass B-0502 is a 2-1/2" floor pedal valve. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Floor mount double pedal valve
- Hot and cold pedals
- Pedals flip up for floor cleaning
- Metering Cartridges
- 1/2” NPT female inlets
- 1/2" NPT female outlet
- Mounting screws included
- Material: Polished chrome plated brass body and pedals
Specifications
- Inlet Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0502
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
- Lead-Free: Yes
- Mount Type: Floor
- Centers: 2-1/2"
- Flow Rate (GPM @ 60 psi): 12
- Cartridge: Metering
- Handle Style: Knee/Foot
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0502 | 671262005210 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | NPT |
Details
| Series | B-0502 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Coating | Polished Chrome |
| Flow rate gpm | 12.0 GPM | Handle style | Knee/Foot |
| Mount type | Floor | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Cartridge type | Metering |
| Centers | 2-1/2" | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | — |
