Chicago Faucets
Chicago Faucets 897-RCF Wall-mounted manual faucet with 8" centers, Brass, NPT
Sale price$124.00
Regular price$356.49
Specifications
Description

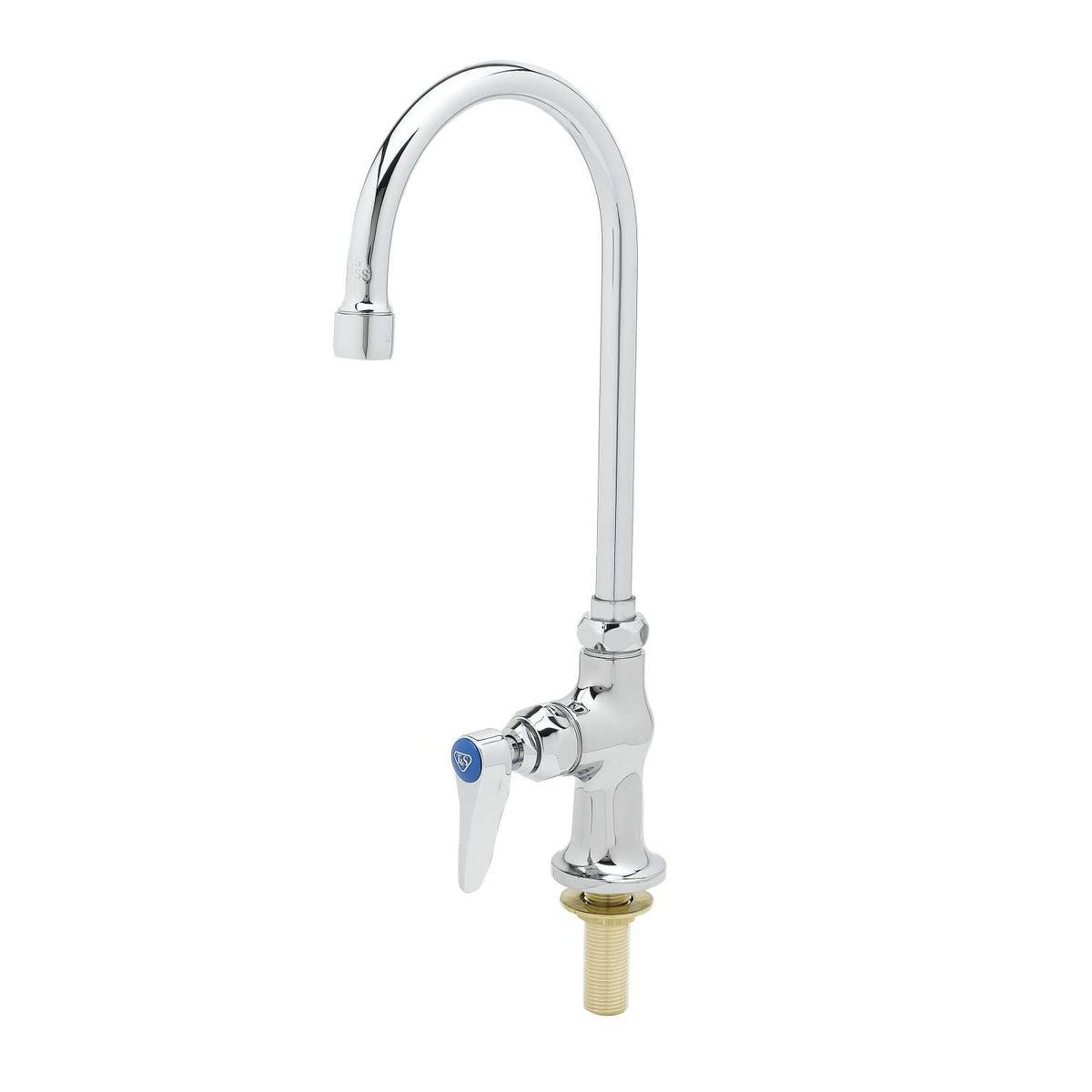

The T&S Brass B-0305 is a single-hole deck-mount single pantry faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Single hole single temperature deck mount faucet w/ polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridge w/ spring check
- Lever handle w/ color coded index
- 1/2” NPSM male inlet
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: NPSM
- Connection Gender: Male
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0305
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: Single-Hole
- Faucet Holes: 1
- Spout Type: Gooseneck
- Spout Motion: Rigid/Swing
- Flow Rate (GPM @ 60 psi): 5.59
- Outlet: Stream Regulator
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Number of Handles: 1
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0305 | 671262003544 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
| Connection Gender | Male | — | — |
Details
| Series | B-0305 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 5.59 GPM |
| Handle style | Lever | Hole count | 1 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Cartridge type | Quarter-Turn Compression |
| Centers | Single-Hole | Handle count | 1 |
| Outlet type | Stream Regulator | Spout motion | Rigid/Swing |
| Spout type | Gooseneck | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
Compare with similar products
T&S Brass
T&S Brass B-0305 Single-Hole Deck Mount Single Pantry Faucet, Gooseneck, 5.59 GPM
$153.23$207.50
Add To Cart
T&S Brass
T&S Brass B-2463 8" Wall Mount Double Pantry Faucet, 12" Swing Nozzle, 14.58 GPM
$241.85$327.50
Add To Cart
T&S Brass
T&S Brass B-2342 8" Wall Mount Double Pantry Faucet, 10" Swing Nozzle, 23.09 GPM
$242.95$329.00
Add To Cart| Series | B-0305
| B-2459
| B-2463
| B-2414
| B-2346
| B-2342
|
| Warranty | One Year (Limited)
| One Year (Limited)
| One Year (Limited) / Cartridge: Lifetime
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| — | 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| MNPT
| FNPT
| FNPT
| — | FNPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, WaterSense
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
