Description

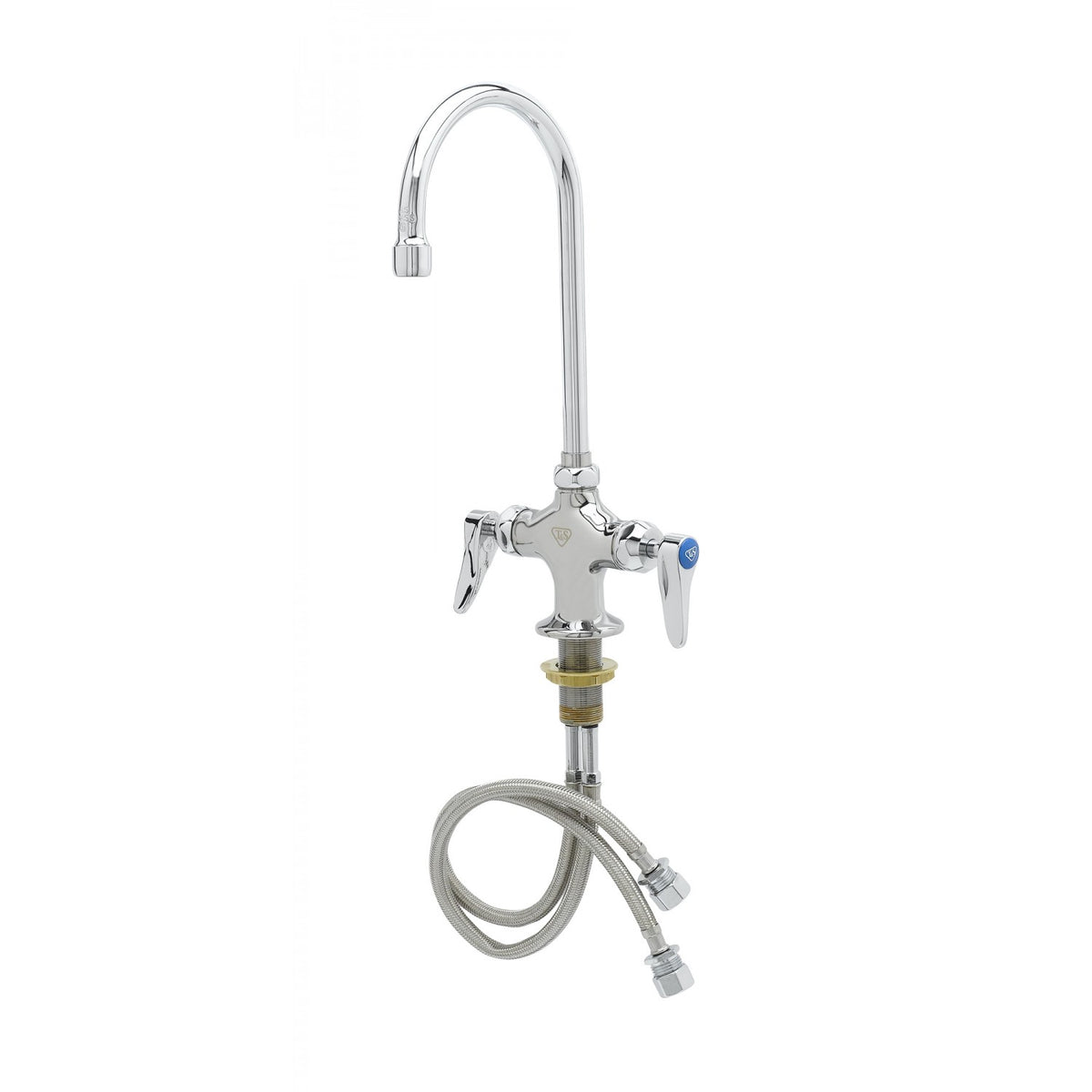

The T&S Brass B-0300-CR is a single-hole deck-mount double pantry faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” O.D. compression connections
- Material: Polished chrome plated brass body & tubular spout, and chrome plated metal handles
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Body Material: Brass
- Warranty: One Year (Limited) / Cartridge: Lifetime
- MPN: B-0300-CR
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: Single-Hole
- Faucet Holes: 1
- Spout Type: Gooseneck
- Spout Motion: Rigid/Swing
- Flow Rate (GPM @ 60 psi): 8.67
- Outlet: Stream Regulator
- Cartridge: Ceramic 1/4-Turn
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Number of Handles: 2
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0300-CR | 671262754972 | One Year (Limited) / Cartridge: Lifetime | Download |
Details
| Series | B-0300 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 8.67 GPM |
| Handle style | Lever | Hole count | 1 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Cartridge type | Ceramic 1/4-Turn |
| Centers | Single-Hole | Handle count | 2 |
| Outlet type | Stream Regulator | Spout motion | Rigid/Swing |
| Spout type | Gooseneck | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
Compare with similar products
| Series | B-0300
| B-2459
| B-2463
| B-2414
| B-2346
| B-2342
|
| Warranty | One Year (Limited) / Cartridge: Lifetime
| One Year (Limited)
| One Year (Limited) / Cartridge: Lifetime
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Inlet Size | — | 1/2"
| 1/2"
| 1/2"
| — | 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | — | MNPT
| FNPT
| FNPT
| — | FNPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, WaterSense
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
