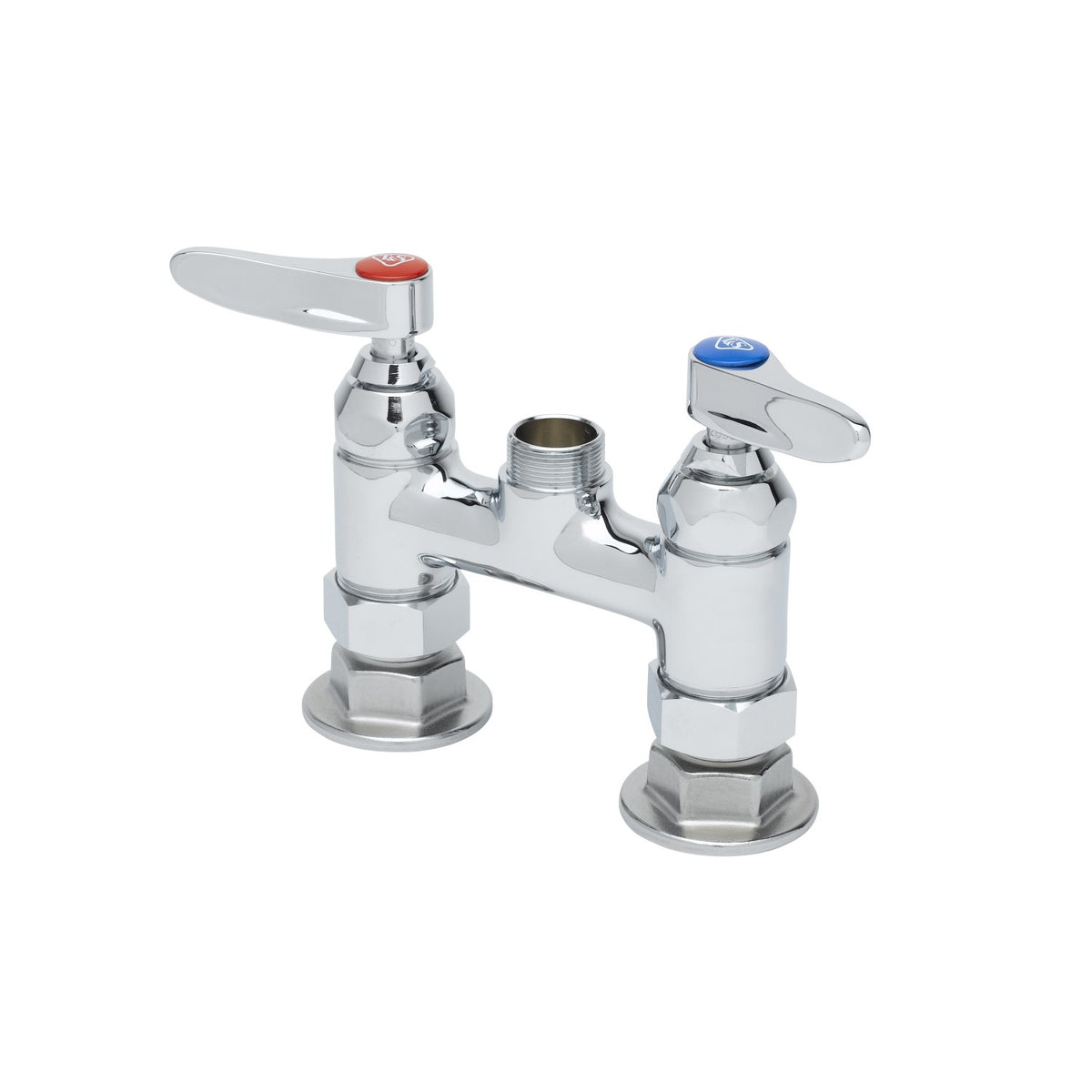

The T&S Brass B-0225-LN is a 4" deck-mount double pantry faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- 4” deck mount mixing faucet with polished chrome plated brass body
- Swivel outlet accepts standard T&S swing nozzles
- Lock washer provided for rigid application
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handle w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 3 3/4” to 4 1/4”
- Material: Polished chrome plated brass body and polished chrome plated metal handles
Common Questions
- Does it come with a nozzle?
- No. This is a less-nozzle body with a swivel outlet; order the T&S swing nozzle or gooseneck you need separately.
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: FNPT
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0225-LN
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: 4"
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Number of Handles: 2
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0225-LN | 671262002554 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | FNPT |
Details
| Series | B-0225 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Handle style | Lever |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Cartridge type | Quarter-Turn Compression |
| Centers | 4" | Handle count | 2 |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
Compare with similar products
| Series | B-0225
| B-2459
| B-2463
| B-2414
| B-2346
| B-2342
|
| Warranty | One Year (Limited)
| One Year (Limited)
| One Year (Limited) / Cartridge: Lifetime
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| — | 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | FNPT
| MNPT
| FNPT
| FNPT
| — | FNPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, WaterSense
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
