Chicago Faucets
Chicago Faucets 897-RCF Wall-mounted manual faucet with 8" centers, Brass, NPT
Sale price$124.00
Regular price$356.49
Specifications
Description

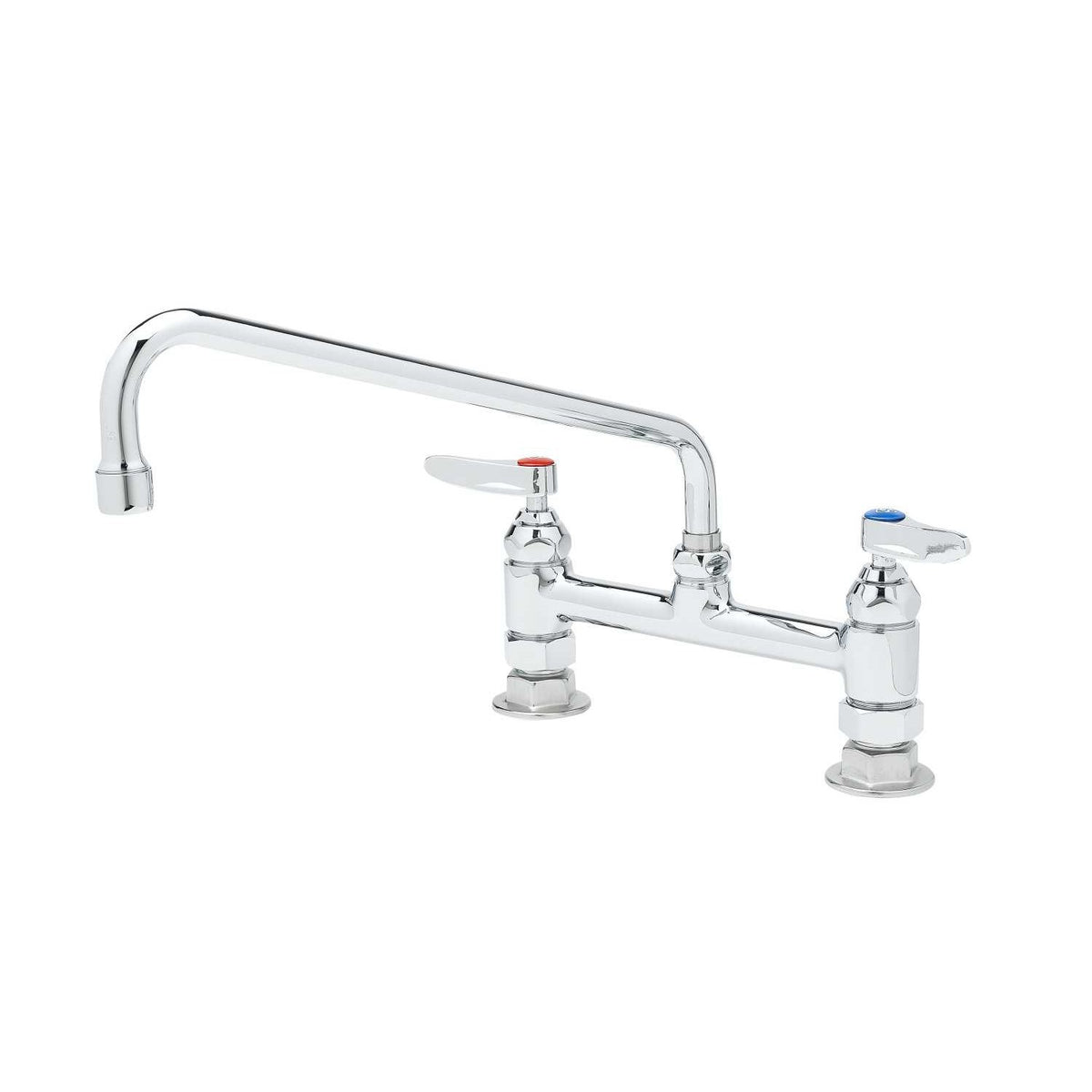

The T&S Brass B-0221 is an 8" deck-mount double pantry faucet with a 12" swing nozzle. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- 8” deck mount mixing faucet with polished chrome plated brass body
- 12” swing nozzle
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and polished chrome plated metal handles
Common Questions
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: FNPT
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0221
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: 8"
- Spout Type: Swing Nozzle
- Spout Motion: Swing
- Nozzle / Spout Length (in): 12
- Flow Rate (GPM @ 60 psi): 18.39
- Outlet: Stream Regulator
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Number of Handles: 2
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0221 | 671262002455 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | FNPT |
Details
| Series | B-0221 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 18.39 GPM |
| Handle style | Lever | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
| Cartridge type | Quarter-Turn Compression | Centers | 8" |
| Handle count | 2 | Outlet type | Stream Regulator |
| Spout motion | Swing | Spout reach in | 12.0 |
| Spout type | Swing Nozzle | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
