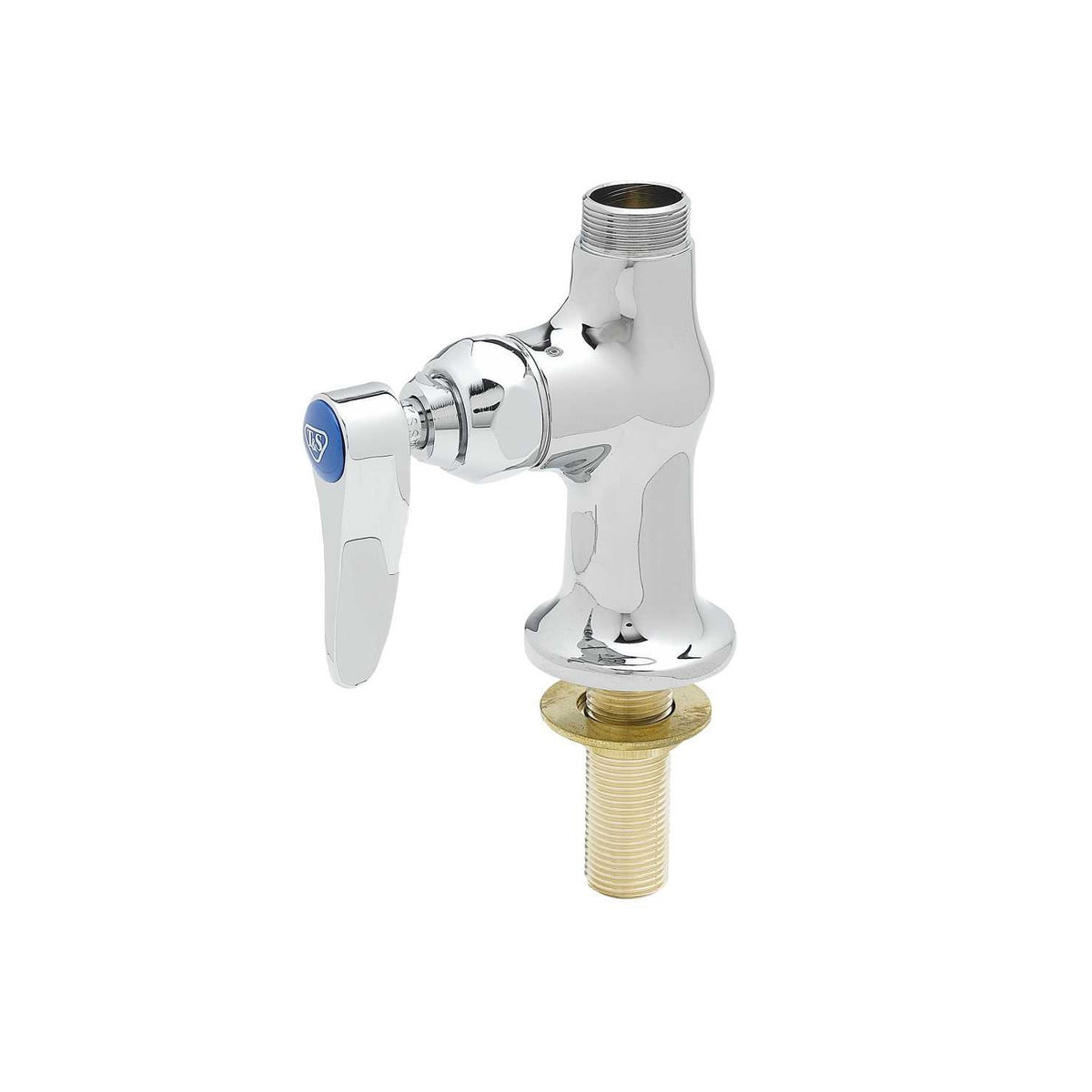

The T&S Brass B-0205-LN is a single-hole deck-mount single pantry faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Single hole single temperature deck mount faucet w/ polished chrome plated brass body
- Swivel outlet accepts T&S swing nozzles
- Lock washer provided for rigid application
- Quarter-turn Eterna compression cartridge w/ spring check
- Lever handle w/ color coded index
- 1/2” NPSM male inlet
- Tailpiece and nut to provide 1/4” NPT male connection
- Material: Polished chrome plated brass body and chrome plated metal handle
Common Questions
- Does it come with a nozzle?
- No. This is a less-nozzle body with a swivel outlet; order the T&S swing nozzle or gooseneck you need separately.
- Is it ADA compliant?
- Yes. T&S lists ANSI A117.1 (ADA) compliance on its submittal for this model.
Specifications
- Inlet Size: 1/2"
- Connection: NPSM
- Connection Gender: Male
- Body Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0205-LN
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: Single-Hole
- Faucet Holes: 1
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Number of Handles: 1
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0205-LN | 671262002134 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | NPSM |
| Connection Gender | Male | — | — |
Details
| Series | B-0205 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Handle style | Lever |
| Hole count | 1 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
| Cartridge type | Quarter-Turn Compression | Centers | Single-Hole |
| Handle count | 1 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | ADA |
