Specifications
Description

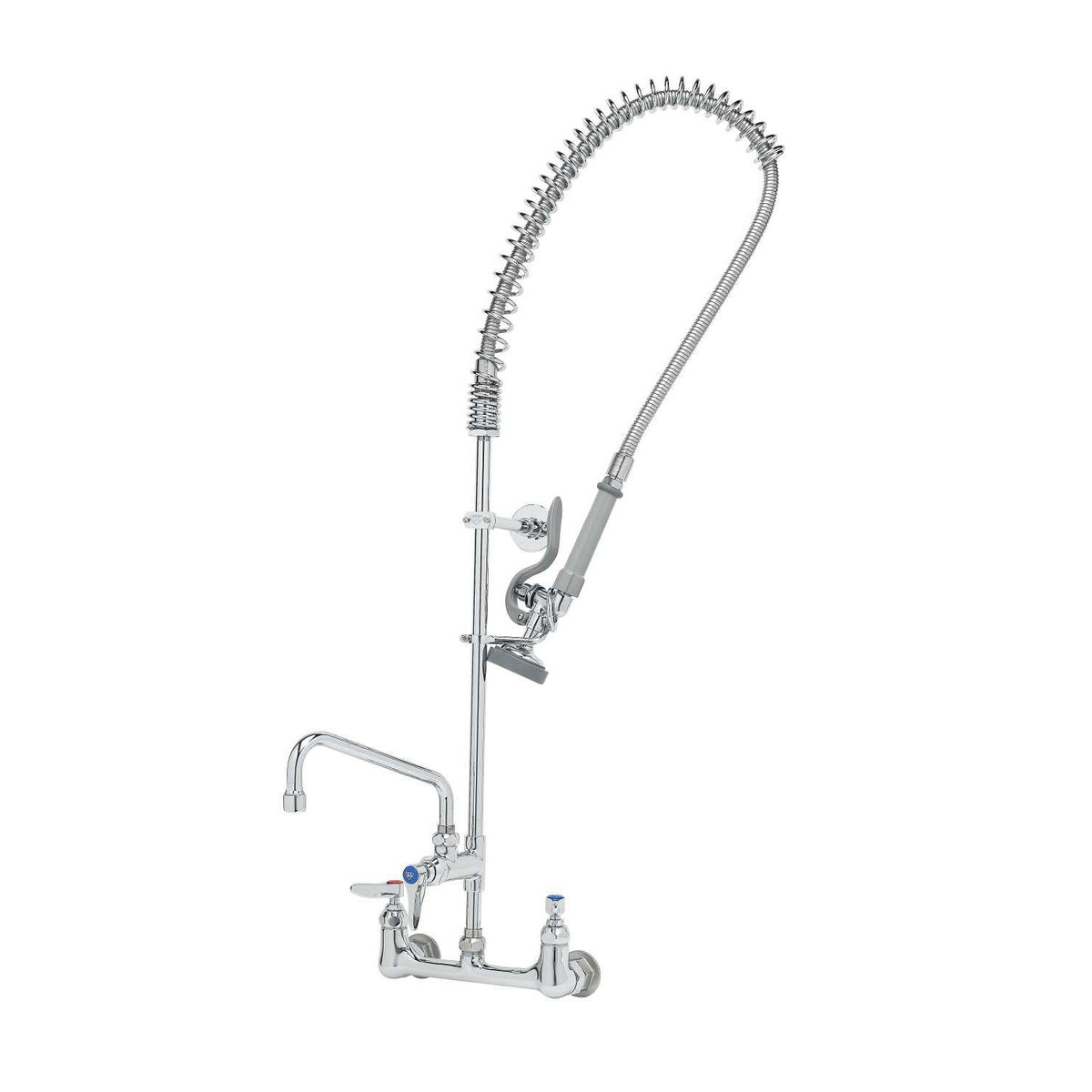

The T&S Brass B-0133-ADF08-B is an 8" wall-mount pre-rinse unit with an 8" swing nozzle. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 8” swing nozzle w/ stream regulator outlet, Series 1
- 18” rigid riser
- 44” flexible stainless steel hose with heat resistant gray handle and hold down ring
- 1.15 GPM spray valve
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, tubular nozzle, add-on faucet body, riser & spray valve body, stainless steel hose and chrome plated metal handles
Common Questions
- Does it meet the federal pre-rinse spray valve standard?
- Yes. T&S rates its spray valve at 1.15 GPM at 60 psi, which puts it in DOE Class 2 under the 2019 commercial pre-rinse spray valve rule (10 CFR 431.266).
Specifications
- Inlet Size: 1/2"
- Connection: FNPT
- Body Material: Brass
- Warranty: Three Year (Limited)
- MPN: B-0133-ADF08-B
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
- Lead-Free: Yes
- Mount Type: Wall-Mount
- Centers: 8"
- Spout Type: Swing Nozzle
- Spout Motion: Swing
- Nozzle / Spout Length (in): 8
- Flow Rate (GPM @ 60 psi): 1.15
- Outlet: Pre-Rinse Spray Valve
- DOE Pre-Rinse Spray Valve Class: Class 2
- Add-On Faucet Included: Yes
- Riser Length (in): 18
- Hose Length (in): 44
- Hose Material: Stainless Steel
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
- Market Segment: Foodservice
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0133-ADF08-B | 671262593656 | Three Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | FNPT |
Details
| Series | B-0133 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 1.15 GPM |
| Handle style | Lever | Hose length in | 44.0 |
| Hose material | Stainless Steel | Market segment | Foodservice |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Add on faucet included | Yes |
| Cartridge type | Quarter-Turn Compression | Centers | 8" |
| Outlet type | Pre-Rinse Spray Valve | Prsv class | Class 2 |
| Riser length in | 18.0 | Spout motion | Swing |
| Spout reach in | 8.0 | Spout type | Swing Nozzle |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | — |
Compare with similar products
| Series | B-0133
| 920
| B-2466
| B-2290
| B-2250
| B-2277
|
| Warranty | Three Year (Limited)
| Lifetime faucet; 1-year finish; 5-year cartridge
| Three Year (Limited) / Cartridge: Lifetime
| Three Year (Limited)
| One Year (Limited)
| Three Year (Limited) / Cartridges: Lifetime
|
| Spec Sheet | ||||||
| Inlet Size | 1/2"
| — | 1/2"
| 1/2"
| 3/8"
| — |
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | FNPT
| NPSM
| FNPT
| NPT
| MNPT
| — |
| Body Material | Brass
| Brass
| Brass
| Brass
| — | Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, CSA-B64.8
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
