Specifications
Description

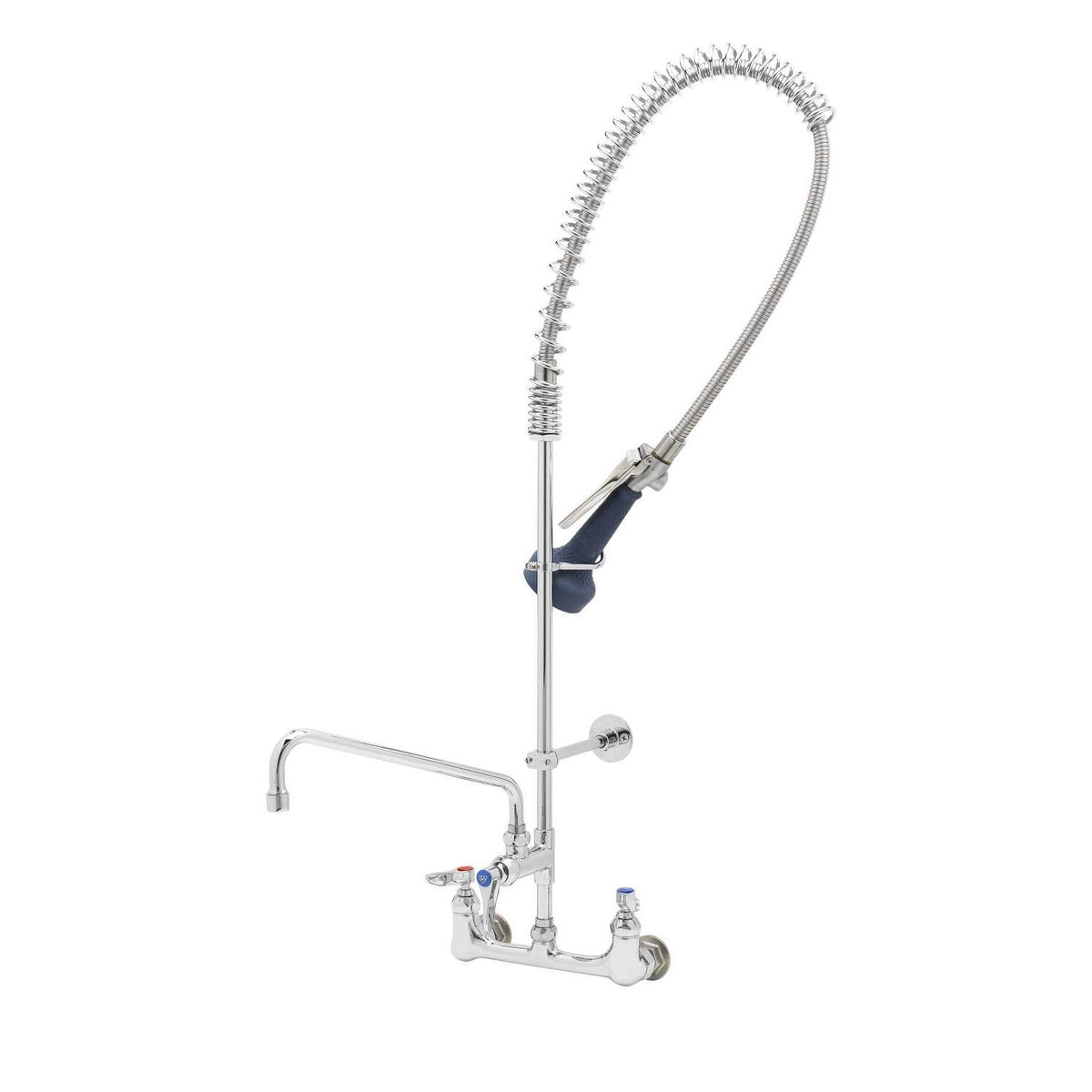

The T&S Brass B-0133-A12-B08C is an 8" wall-mount pre-rinse unit with a B-0108-C spray valve and a 12" swing nozzle. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 12” swing nozzle w/ stream regulator outlet, Series 1
- 18” rigid riser
- 44” flexible stainless steel hose
- 0.65 GPM low flow JeTSpray spray valve with insulated grip handle, stainless steel trigger and trigger lock
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, tubular nozzle, add-on faucet body, riser & spray valve body, stainless steel hose, and chrome plated metal handles
Common Questions
- Does it meet the federal pre-rinse spray valve standard?
- Yes. T&S rates its B-0108-C spray valve at 0.65 GPM with 4.6 ozf of spray force at 60 psi, which puts it in DOE Class 1 under the 2019 commercial pre-rinse spray valve rule (10 CFR 431.266).
Specifications
- Inlet Size: 1/2"
- Connection: FNPT
- Body Material: Brass
- Warranty: Three Year (Limited)
- MPN: B-0133-A12-B08C
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
- Lead-Free: Yes
- Mount Type: Wall-Mount
- Centers: 8"
- Spout Type: Swing Nozzle
- Spout Motion: Swing
- Nozzle / Spout Length (in): 12
- Flow Rate (GPM @ 60 psi): 0.65
- Outlet: Pre-Rinse Spray Valve
- Spray Valve Model: B-0108-C
- DOE Pre-Rinse Spray Valve Class: Class 1
- Add-On Faucet Included: Yes
- Riser Length (in): 18
- Hose Length (in): 44
- Hose Material: Stainless Steel
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
- Market Segment: Foodservice
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0133-A12-B08C | 671262660723 | Three Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | End Connection | FNPT |
Details
| Series | B-0133 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 0.65 GPM |
| Handle style | Lever | Hose length in | 44.0 |
| Hose material | Stainless Steel | Market segment | Foodservice |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Operating pressure min psi | 20 PSI | Add on faucet included | Yes |
| Cartridge type | Quarter-Turn Compression | Centers | 8" |
| Outlet type | Pre-Rinse Spray Valve | Prsv class | Class 1 |
| Riser length in | 18.0 | Spout motion | Swing |
| Spout reach in | 12.0 | Spout type | Swing Nozzle |
| Spray valve model | B-0108-C | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | — |
