Specifications
Description

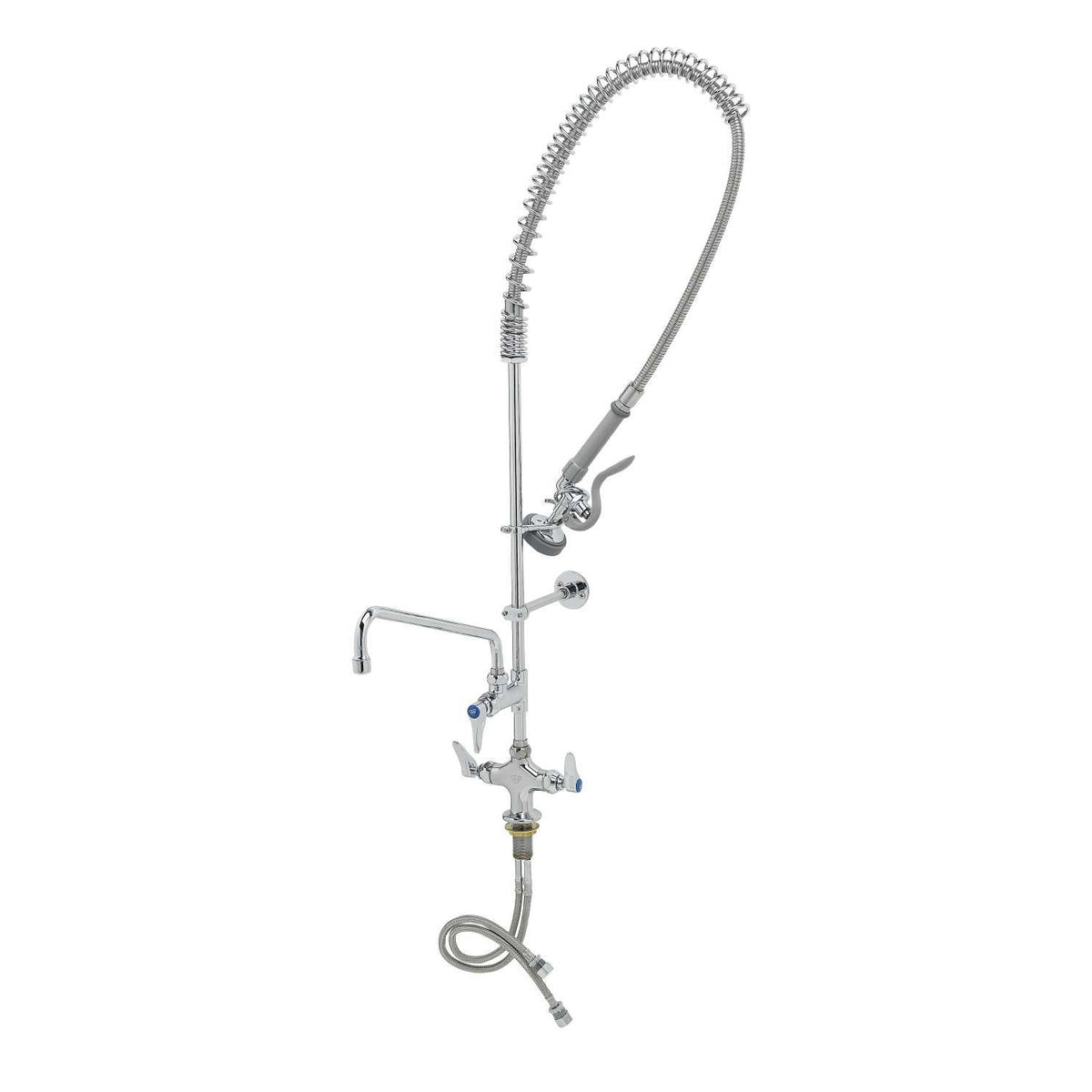

The T&S Brass B-0113-ADF12-B is a single-hole deck-mount pre-rinse unit with a 12" swing nozzle. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 12” swing nozzle w/ stream regulator outlet, Series 1
- 24” rigid riser
- 44” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.15 GPM spray valve
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” compression connections
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, & tubular nozzle, add-on faucet body, riser & spray valve, stainless steel hose and chrome plated metal handles
Common Questions
- Does it meet the federal pre-rinse spray valve standard?
- Yes. T&S rates its spray valve at 1.15 GPM at 60 psi, which puts it in DOE Class 2 under the 2019 commercial pre-rinse spray valve rule (10 CFR 431.266).
Specifications
- Body Material: Brass
- Warranty: Three Year (Limited)
- MPN: B-0113-ADF12-B
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Centers: Single-Hole
- Faucet Holes: 1
- Spout Type: Swing Nozzle
- Spout Motion: Swing
- Nozzle / Spout Length (in): 12
- Flow Rate (GPM @ 60 psi): 1.15
- Outlet: Pre-Rinse Spray Valve
- DOE Pre-Rinse Spray Valve Class: Class 2
- Add-On Faucet Included: Yes
- Riser Length (in): 24
- Hose Length (in): 44
- Hose Material: Stainless Steel
- Cartridge: Quarter-Turn Compression
- Backflow Protection: Integrated Check Cartridge
- Handle Style: Lever
- Finish: Polished Chrome
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
- Market Segment: Foodservice
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0113-ADF12-B | 671262593519 | Three Year (Limited) | Download |
Details
| Series | B-0113 | Lead Free | Yes |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Flow rate gpm | 1.15 GPM |
| Handle style | Lever | Hole count | 1 |
| Hose length in | 44.0 | Hose material | Stainless Steel |
| Market segment | Foodservice | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
| Add on faucet included | Yes | Cartridge type | Quarter-Turn Compression |
| Centers | Single-Hole | Outlet type | Pre-Rinse Spray Valve |
| Prsv class | Class 2 | Riser length in | 24.0 |
| Spout motion | Swing | Spout reach in | 12.0 |
| Spout type | Swing Nozzle | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | — |
