Spartan Tool Used Explorer L200 Camera System & Locator Bundle 99990759

The Spartan Tool Used Explorer L200 Camera System & Locator Bundle is a genuine replacement part for the Explorer system.

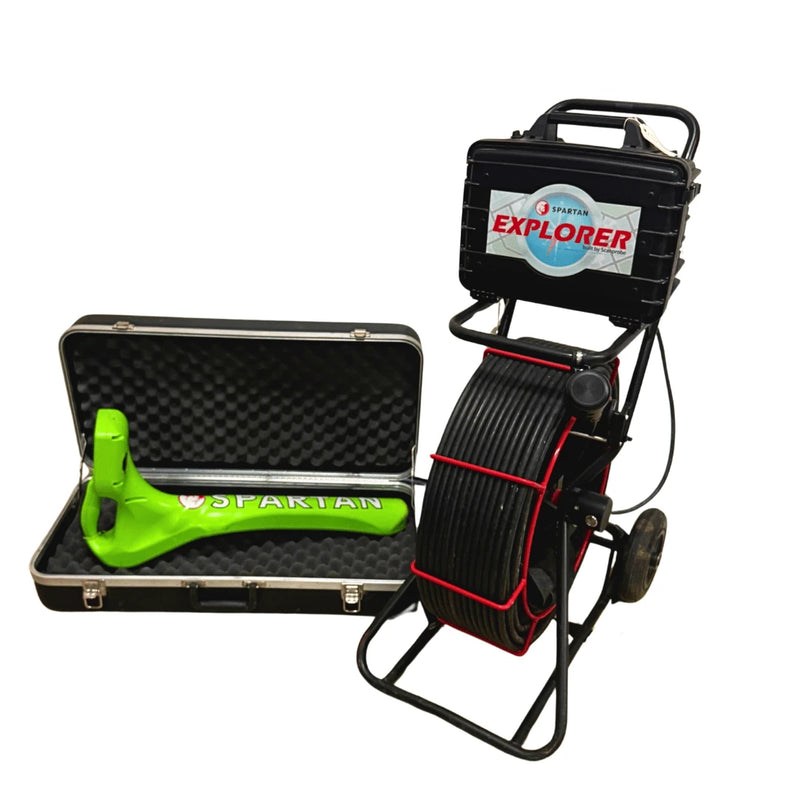

Get a clear view inside the line and accurately locate problem areas with this used inspection bundle. It includes a Used Explorer L200 Video Inspection System and a Used Spartan Tool Locator with a protective carrying case. The used Explorer L200 includes a control box with a bright 10.4-inch display, a 200-foot reel with 12mm push rod, and a 44mm color camera head featuring a built-in 512Hz sonde. The weather-resistant system offers up to nine hours of battery life, footage tracking, snapshot capability, and built-in reporting software. The included used Spartan Tool Locator uses multiple frequencies to help identify the camera head’s location at depths up to 25 feet. Bundle highlights: Explorer control box with 10.4-inch display 200-foot reel with 12mm push rod 44mm color camera head with built-in 512Hz sonde Spartan Tool multi-frequency locator with carrying case Up to nine hours of camera system battery life Used equipment offered together at a bundled price Shipping: These items will both ship on a Skid/Freight.

Common Questions

What system does this part fit?

Spartan Tool's own parts data lists this as fitting the Explorer system. Match your existing unit before ordering -- Spartan changes internal parts between generations.

What size is this part?

This is a 44mm camera head / 12 mm push rod, per the vendor's own listing.

Is this the self-leveling version?

Yes -- this specific part is the self-leveling version.

Is this a genuine Spartan Tool part?

Yes. This is a factory-original Spartan Tool replacement part, not an aftermarket equivalent.

Specifications

• Warranty: 1 year (Spartan Tool limited warranty)
• MPN: 99990759
• Fits Models: Explorer
• Push Rod Diameter: 12 mm
• Camera Head (mm): 44
• Self-Leveling: Yes
• Video Resolution: 800 x 600
• Sonde Frequency (Hz): 512
• Battery Runtime (hrs): 9
• Waterproof Rating: IP64
• Electrical Requirement: 12 V DC / 230 V AC / 115 V AC

Technical Data: Explorer

• Resolution: 800 x 600 RBG (SVGA)
• Push rod diameter (mm): 12
• Reel weight (lbs): 52
• Included camera head (mm): 44
• Control box weight: 12 lbs
• Box dimensions: 14.2" x 11.4" x 6.3"
• LCD size: 10.4"
• Voltage: 12v DC / 230v AC / 115v AC
• Battery: Li-ion (9 hrs running time)
• Operating air temp: 14°F - 122°F
• Charging temp: 32°F - 104°F
• Storage: 32GB HDD standard, (2) USB 2.1
• IP rating: IP64 Open & Closed
• Included software: Mina Reporting Software
• Compatible software: WinCan (separate
• Sonde: 512 Hz sonde locator (44mm camera head)
• Self-leveling (44mm head): 44mm self-leveling camera head
• Warranty: one year from the date of purchase

From Spartan Tool's own documentation (Explorer brochure, Explorer manual).
