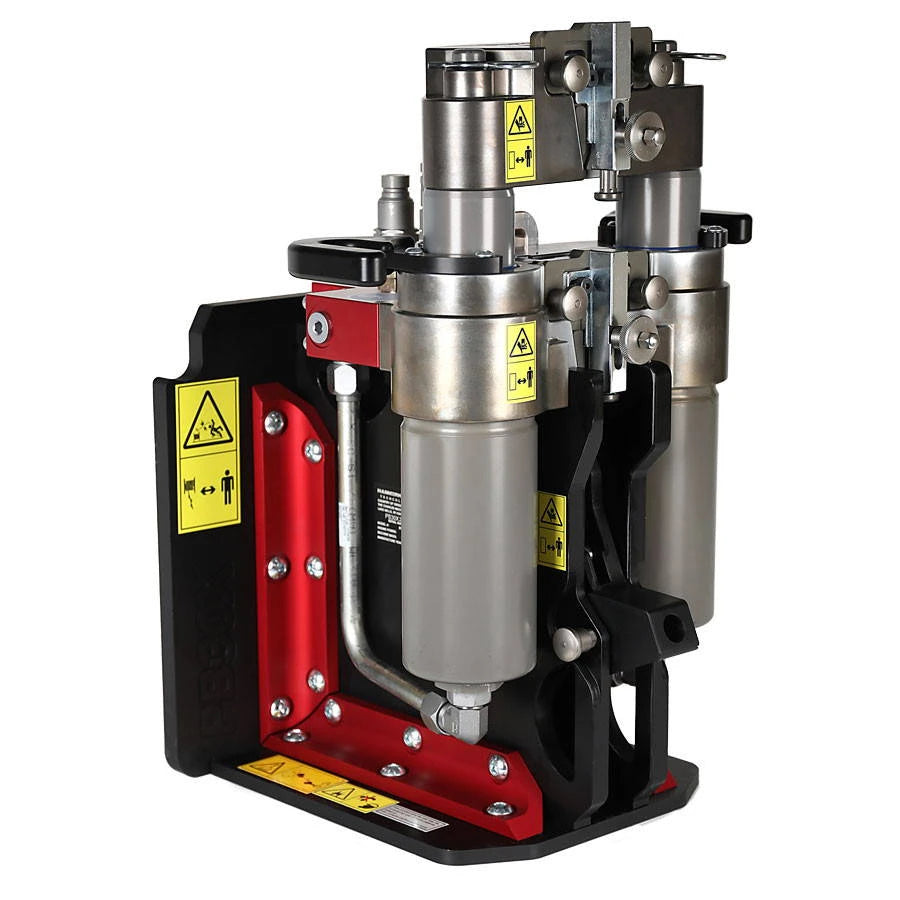

Spartan Tool Undertaker Complete System 8300000C

The Spartan Tool Undertaker Complete System is a hydraulic pipe bursting and pipe replacement system for 2" to 6" lines.

Advanced solution for trenchless pipe repair and replacement. This system allows professionals in the sewer and drain cleaning industry to replace pipes ranging from 2" to 6" in diameter with up to three 45° bends. Whether upsizing from 4" to 6" pipes or handling complex pipe configurations, the Undertaker Complete System provides a robust and reliable method to restore pipe functionality without the need for extensive excavation. Water-Line Sizes Diameter 1/2" - 1-1/4" PACKAGE CONTENTS Undertaker Puller Unit Fusion Machine, 4" and 6" Assy., Reel w/ 200 Ft. Duct Rod Duct Rod w/ 200 Ft. w/o Carrier Hydraulic Power Supply Cage Assembly Shore Face Water Line Sizes 1/2" to 1-1/4" Water Line Lengths 50', 75', 120' UNDERTAKER ACCESSORIES WATER LINE SLITTER COMPONENTS

Features

• Puller generates up to 30 tons of lateral pulling force through the wire rope to the bursting head
• Replaces pipe at speeds of up to 5 feet per minute
• The quick grip bursting head is capable of breaking through pipes or ABS
• Made from high-quality materials that resist wear and corrosion, ensuring long-lasting durability
• Easily replaces existing water lines with new copper pipe
• Engineered to integrate seamlessly with Spartan Tool systems, enhancing stability and performance
• Eliminates the need for special equipment; simply use your backhoe, excavator or winch as a power source
• Features an ergonomic design for ease of operation, reducing user fatigue and improving productivity

Common Questions

What system does this fit?

Spartan's own parts data lists this as fitting the UnderTaker.

What pipe size does this cover?

This system covers 2" to 6" pipe.

What does the complete system include?

This complete system includes Undertaker Puller Unit Fusion Machine, 4" and 6" Assy., Reel w/ 200 Ft. Duct Rod Duct Rod w/ 200 Ft. w/o Carrier Hydraulic Power Supply Cage Assembly Shore Face Water Line Sizes 1/2" to 1-1/4" Water Line Lengths 50', 75', 120' UNDERTAKER ACCESSORIES WATER LINE SLITTER COMPONENTS.

Specifications

• Application: Sewer Lateral
• MPN: 8300000C
• Pipe Size Range: 2" to 6"
• Fits System: UnderTaker
• Kit Type: Complete System
• Kit Includes: Undertaker Puller Unit Fusion Machine, 4" and 6" Assy., Reel w/ 200 Ft. Duct Rod Duct Rod w/ 200 Ft. w/o Carrier Hydraulic Power Supply Cage Assembly Shore Face Water Line Sizes 1/2" to 1-1/4" Water Line Lengths 50', 75', 120' UNDERTAKER ACCESSORIES WATER LINE SLITTER COMPONENTS

Technical Data: UnderTaker

• Pipe sizes replaced: 2- to 6-inch lateral pipes
• Burst head sizes: 2-, 3-, 4- & 6-inch options
• Production rate: up to 6 ft. per minute
• Maximum tonnage (brochure p2): 28.8 tons @ 3,000 psi
• Pulling force (brochure p1): 30 tons of pulling force
• Maximum pull force (manual): 28.8 tons @ 3000 psi
• Maximum pull force (service manual): 30 tons @ 3000 psi
• Max hydraulic pressure (brochure): 3,000 (207)
• Min/Max PSI requirements (service manual): 1,500 - 3,000 psi (103-207 bar)
• Hydraulic flow (brochure): 3-12 (11-45)
• Hydraulic flow requirements (manual): 6 - 12 gpm (23 - 45 lpm)
• Hydraulic flow requirements (service manual): 3 - 10 gpm (11 - 38 lpm)
• Cable lengths (brochure): 75, 100, 150 (22.9, 30.5, 45.7)
• Cable lengths (manual): 75, 100, 150 (22.9, 30.5, 45.7)
• Wire length (service manual): 110', Special Lengths may be ordered
• 3/8 in cable break strength and pressure setting: 10.5 ton (10.7 tonne)
• 3/8 in cable maximum pressure setting: 818 psi (56 bar)
• 3/4 in cable break strength and pressure setting: 38.5 ton (39 tonne)
• 3/4 in cable maximum pressure setting: 3000 psi (207 bar)
• Engine HP: 13 (9.7)
• Engine make: Kohler
• Engine HP (manual): 13 (9.7)
• Pump flow (brochure): 6 (23) @ 3,600 rpm
• Pump flow minimum (manual): 6 (23)
• Pump flow maximum (manual): 12 (45)
• Control unit size (brochure): 25 (63.5) / 26 (66) / 42 (106.7)
• Control unit weight (brochure): 250 (113.4)
• Control unit weight (manual): 250 (113.4)
• Controller: Wired controller with 15 ft. cable
• Rig width (brochure): 17.5

From Spartan Tool's own documentation (UnderTaker manual, UnderTaker brochure, UnderTaker service manual).
