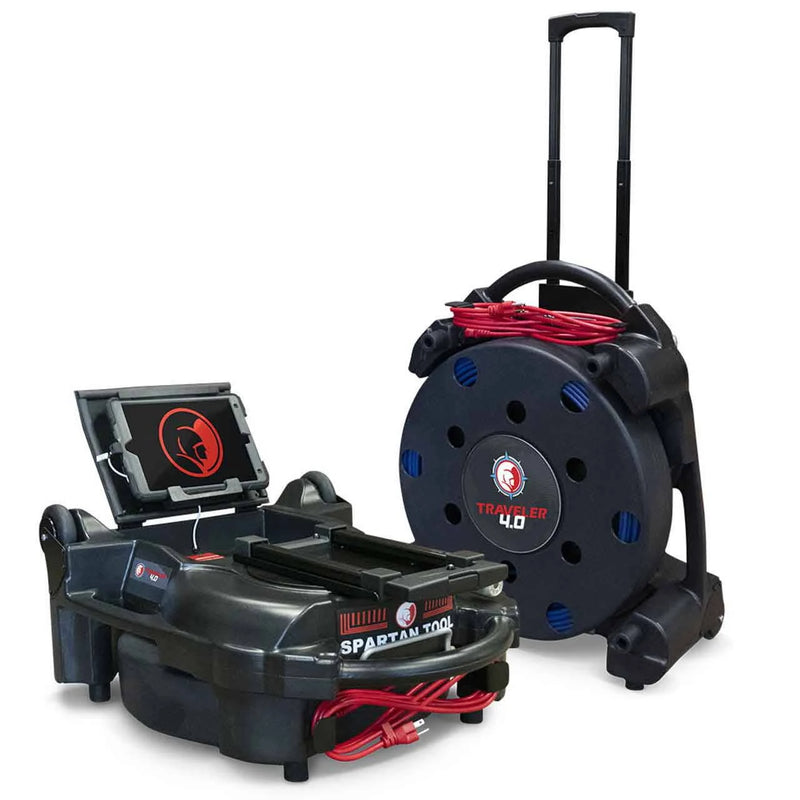

Spartan Tool Traveler 4.0 Sewer Inspection Camera w/iPad 64620000

The Spartan Tool Traveler 4.0 Sewer Inspection Camera w/iPad is a push-rod video inspection camera for 4" to 12" lines.

The upgraded compact, portable camera inspection camera. The Traveler 4.0 offers an upgraded interior with electronic components, such as the robust waterproof connectors, engineered and built to stand up to harsh environments. Customizable with interchangeable camera heads in various sizes, with or without self-leveling and sonde.

Features

• Included camera head delivers higher quality video with 500,000
• Waterproof, stainless steel self-leveling camera head, sapphire glass lens reduces scratching
• 110 volt or battery operation
• Camera centering guide included
• Built-in transport cart with extending handle & high-clearance wheels
• Heavy-duty rotationally molded case protects unit

Common Questions

What pipe sizes does this camera work in?

This system is built for 4" to 12" lines, per Spartan Tool's own specifications.

How long is the push rod?

200 ft of 8 mm, per the vendor's specification sheet.

How big is the camera head?

The camera head is 40mm in diameter.

Is the camera self-leveling?

Yes -- the image automatically stays right-side-up as the head travels through the pipe.

Can a locator find this camera head underground?

Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.

Specifications

• Type: Inspection Camera
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 64620000
• Pipe Size Range: 4" to 12"
• Push Rod Length: 200 ft
• Push Rod Diameter: 8 mm
• Camera Head (mm): 40
• Self-Leveling: Yes
• Display: iOS App (iPad included)
• Push Rod Length (ft): 200
• Sonde Frequency (Hz): 512
• Battery Runtime (hrs): 6
• Waterproof Rating: Waterproof
• Electrical Requirement: 110 volt or battery operation
• Overall Length (in): 22.0
• Overall Width (in): 12.0
• Overall Height (in): 26.0

Technical Data: Traveler 4.0

• Pipe sizes: 4" - 12" diameter
• Push rod: 200' of 8 mm push rod
• Push rod diameter: 8 mm
• Weight: 46 lbs
• Camera head: 40mm diameter stainless steel self-leveling
• Self-leveling: self-leveling
• Locating beacon (sonde): 512 Hz
• Battery life: Up to six hours
• Power: 110 volt or battery operation
• Camera head image sensor: 500,000 pixels
• Camera head LED output: 84,830 lux

From Spartan Tool's own documentation (Traveler4).
