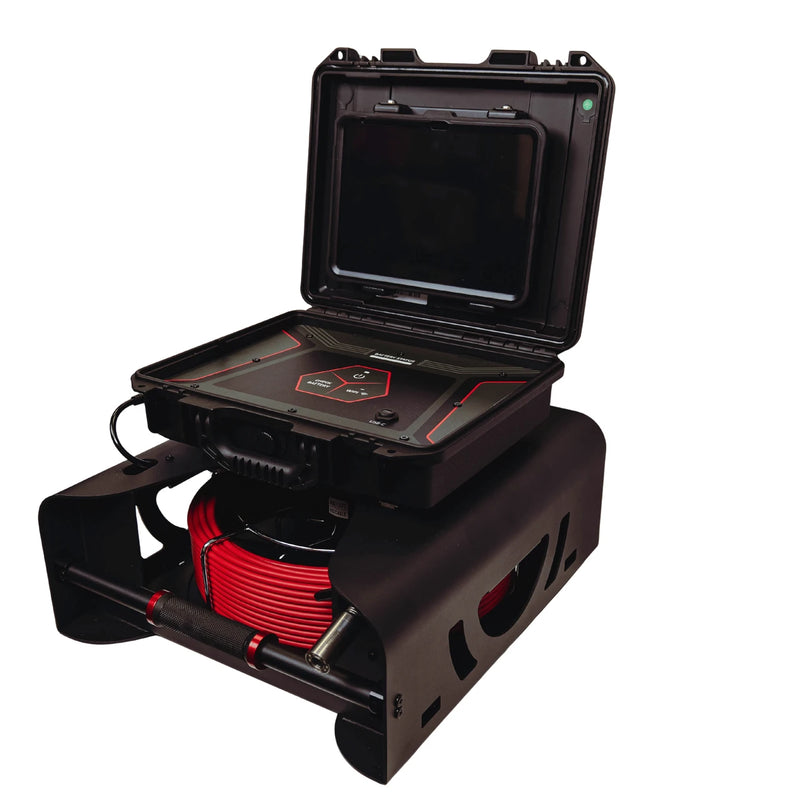

Spartan Tool Traveler Lite 2 Inspection Camera 64500010

The Spartan Tool Traveler Lite 2 Inspection Camera is a push-rod video inspection camera for 2" to 4" lines.

Looking for a budget-friendly, field repairable sewer inspection camera? This open-reel camera system is for general inspection and locating jobs in 2" to 4" pipe sizes. It features a 130-foot push rod. Designed to be used with an iOS or Android device (not included). The Traveler Lite runs on the Spartan Vision app, which includes a free PDF report builder, audio voiceover recording, and more.

Features

• Wireless connection between unit and smart device (tablet not included)
• Self-leveling camera technology
• 120° camera swing angle
• 9 built-in white LED lights
• Effective pixel array of 960 (H) x 480 (V)
• Utilizes the Spartan Vision app on iOS or Android devices for
• LED lighting, a 23mm camera head, and a 1080p HD display offer sharp, detailed visuals of pipe interiors
• 130-foot push rod
• Lightweight and easy-to-carry design
• Field-repairable unit means faster repairs

Common Questions

What pipe sizes does this camera work in?

This system is built for 2" to 4" lines, per Spartan Tool's own specifications.

How long is the push rod?

130 ft of 6 mm, per the vendor's specification sheet.

How big is the camera head?

The camera head is 23mm in diameter.

Is the camera self-leveling?

Yes -- the image automatically stays right-side-up as the head travels through the pipe.

Can a locator find this camera head underground?

Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.

Specifications

• Type: Camera Reel
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 64500010
• Pipe Size Range: 2" to 4"
• Push Rod Length: 130 ft
• Push Rod Diameter: 6 mm
• Camera Head (mm): 23
• Self-Leveling: Yes
• Display: iOS / Android app (device not included)
• Video Resolution: 1080p
• Push Rod Length (ft): 130
• Sonde Frequency (Hz): 512
• Battery Runtime (hrs): 9
• Overall Length (in): 19.0
• Overall Width (in): 21.0
• Overall Height (in): 15.0

Technical Data: Traveler Lite 2

• Pipe sizes: 2" to 4"
• Push rod: 130'/40m fiberglass push rod
• Camera head: 23mm self-leveling camera head
• Self-leveling: self-leveling
• Resolution: 1080p
• Sonde: 512 Hz
• Battery life: up to 9 hours
• Weight: 39 lbs
• Display: iOS or Android device (not

From Spartan Tool's own documentation (Traveler Lite 2).
