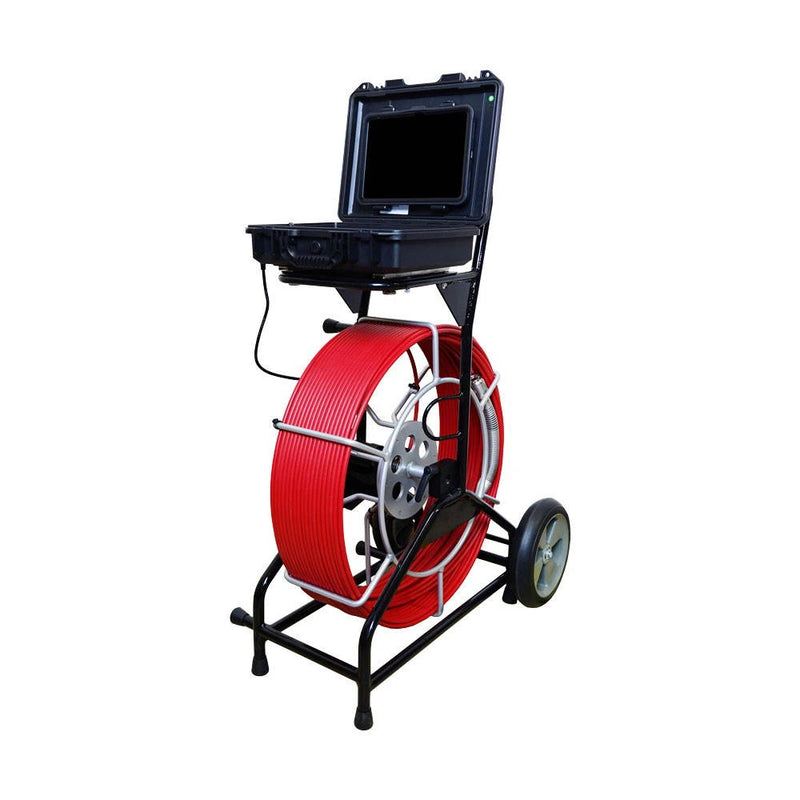

Spartan Tool Traveler XL Inspection Camera System 64500003

The Spartan Tool Traveler XL Inspection Camera System is a push-rod video inspection camera for 3" to 12" (4" to 12" with 9mm rod) lines.

NEW portable, field repairable inspection camera. The Traveler XL offers a waterproof, stainless steel self-leveling camera head. The stronger push rod offers more flexibility. With 200 or 300 feet of push rod, this inspection camera can reach even the furthest blockages. Connect to the Spartan Vision App for professional inspection reporting.

Features

• Included camera head delivers higher quality video with improved visibility
• Interchangeable camera heads available in various sizes with or without self-leveling and sonde
• 110 volt or battery operation
• Stronger push rod with a removable reel for quick changes
• Built-in transport cart with handle & high-clearance wheels

Common Questions

What pipe sizes does this camera work in?

This system is built for 3" to 12" (4" to 12" with 9mm rod) lines, per Spartan Tool's own specifications.

How long is the push rod?

8 mm or 9 mm, per the vendor's specification sheet.

How big is the camera head?

The camera head is 40mm in diameter.

Is the camera self-leveling?

Yes -- the image automatically stays right-side-up as the head travels through the pipe.

Can a locator find this camera head underground?

Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.

Specifications

• Type: Inspection Camera
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 64500003
• Pipe Size Range: 3" to 12" (4" to 12" with 9mm rod)
• Push Rod Diameter: 8 mm or 9 mm
• Camera Head (mm): 40
• Self-Leveling: Yes
• Display: iOS / Android App (Spartan Vision, tablet not included)
• Push Rod Length (ft): 200
• Sonde Frequency (Hz): 512
• Battery Runtime (hrs): 6
• Waterproof Rating: Waterproof
• Electrical Requirement: 110 volt or battery operation
• Overall Length (in): 40.0
• Overall Width (in): 25.0
• Overall Height (in): 48.0

Technical Data: Traveler XL

• Pipe sizes: 3" to 12" (4" to 12" for 9mm)
• Push rod options: 200' of 8mm or 9mm, 300' of 9mm
• Push rod diameter: 8mm or 9mm
• Camera head: 40 mm
• Sonde: 512 Hz
• Battery life: Up to 6 hours
• Weight: 64.5 lbs
• Power: 110 volt or battery operation
• Camera head image sensor: 500,000 pixels
• Camera head LED output: 84,830 lux

From Spartan Tool's own documentation (TravelerXL).
