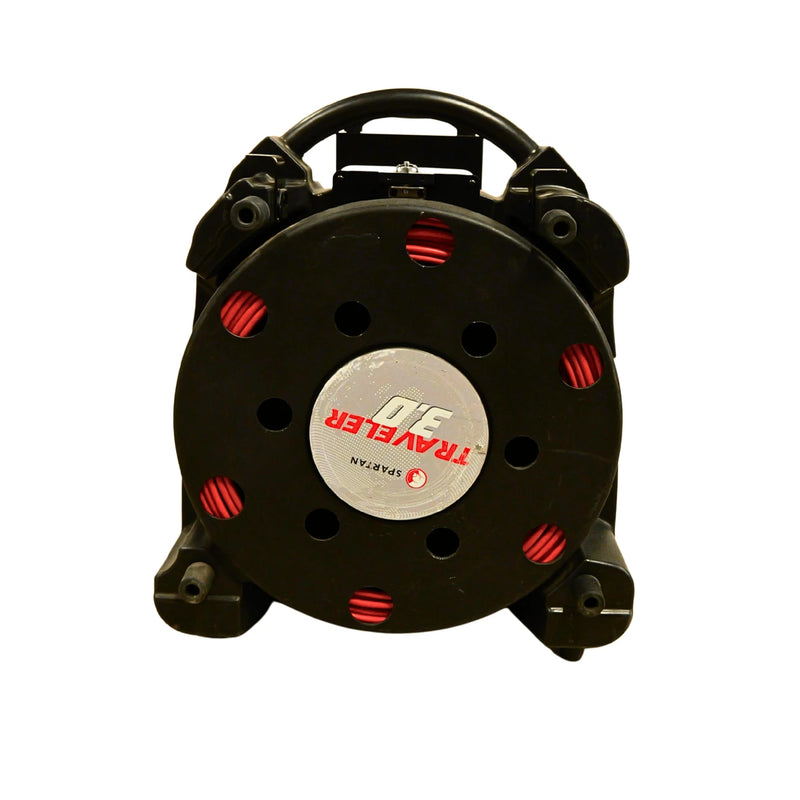

The Spartan Tool Traveler 3 Camera Inspection Camera System is a push-rod video inspection camera for 4" to 12" lines.
Common Questions
- What pipe sizes does this camera work in?
- This system is built for 4" to 12" lines, per Spartan Tool's own specifications.
- How big is the camera head?
- The camera head is 40mm in diameter.
- Is the camera self-leveling?
- Yes -- the image automatically stays right-side-up as the head travels through the pipe.
- Can a locator find this camera head underground?
- Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.
- How long does the battery last?
- Up to 6 hours per charge, per Spartan Tool's own rating.
Specifications
-
Type: Inspection Camera
-
Warranty: 1 year (Spartan Tool limited warranty)
-
MPN: 64310002
-
Pipe Size Range: 4" to 12"
-
Camera Head (mm): 40
-
Self-Leveling: Yes
-
Display: Apple iPad or Samsung Galaxy Tab (9.7 in)
-
Video Resolution: 976 x 496
-
Sonde Frequency (Hz): 512
-
Battery Runtime (hrs): 6
-
Electrical Requirement: 110 V AC or battery
Technical Data: Traveler 3.0
-
Pipe sizes: 4" - 12" diameter
-
Resolution: 976 x 496
-
Weight: 46 lbs
-
Size: 22.5"W x 26"H x 12"D
-
Monitor: Apple® iPad (9.7") or Samsung Galaxy Tab®
-
Camera head diameter: 40mm
-
Self-leveling: self-leveling
-
Locating beacon (sonde): 512 Hz
-
Battery life: Up to six hours
-
Power: 110 volt or battery operation
-
Camera head image sensor: 500,000 pixels
-
Camera head LED output: 84,830 lux
-
Lens: Sapphire glass lens
-
Warranty: one year from the date of purchase
From Spartan Tool's own documentation (Traveler3, Traveler3.0 ServiceManual).
