Spartan Tool Trap-Eze 3.0 Camera System 64066634

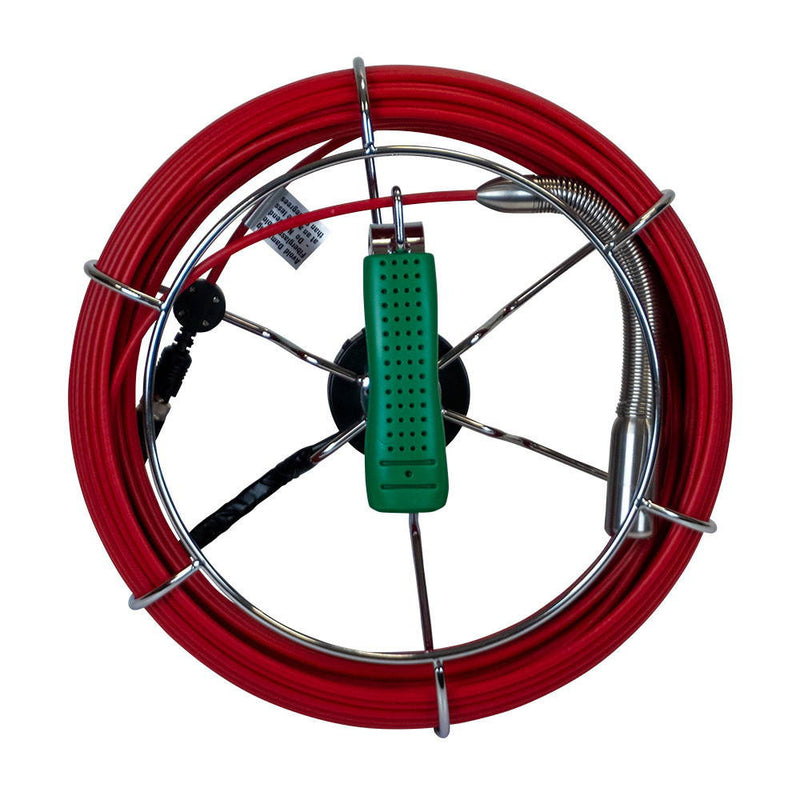

The Spartan Tool Trap-Eze 3.0 Camera System is a push-rod video inspection camera for 2" to 4" lines.

sentinelhd Get right where you want to see. The Sentinel HD is a lightweight, open-reel camera system for general inspection and locating jobs, featuring a waterproof, stainless steel camera head and 100-foot fiberglass push rod. This system is ideal for use alongside the Revolution line of high speed flex shaft machines. With its compact footprint, attractive pricing, and easily interchangeable parts, the Sentinel HD is the perfect camera for business owners who need to put a unit on every truck.

Features

• Waterproof, stainless-steel camera head equipped with a high- definition lens for crystal-clear imagery
• 100-foot fiberglass push rod, allowing for extended navigation through pipes, even in challenging environments
• Camera's lightweight, open-reel design is built for the toughest jobs and easy transportation
• Equipped with a rechargeable battery that lasts up to 6 hours
• Included 10-inch monitor for easy viewing and an SD card for recording inspections for further analysis

Common Questions

What pipe sizes does this camera work in?

This system is built for 2" to 4" lines, per Spartan Tool's own specifications.

How long is the push rod?

100 ft of 6.88 mm, per the vendor's specification sheet.

How big is the camera head?

The camera head is 23mm in diameter.

Can a locator find this camera head underground?

Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.

How long does the battery last?

Up to 6.0 hours per charge, per Spartan Tool's own rating.

Specifications

• Type: Inspection Camera
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 64066634
• Pipe Size Range: 2" to 4"
• Push Rod Length: 100 ft
• Push Rod Diameter: 6.88 mm
• Camera Head (mm): 23
• Display: Integrated Monitor
• Sonde Frequency (Hz): 512
• Battery Runtime (hrs): 6.0
• Waterproof Rating: Waterproof
• Overall Length (in): 17.25
• Overall Width (in): 22.0
• Overall Height (in): 14.0
