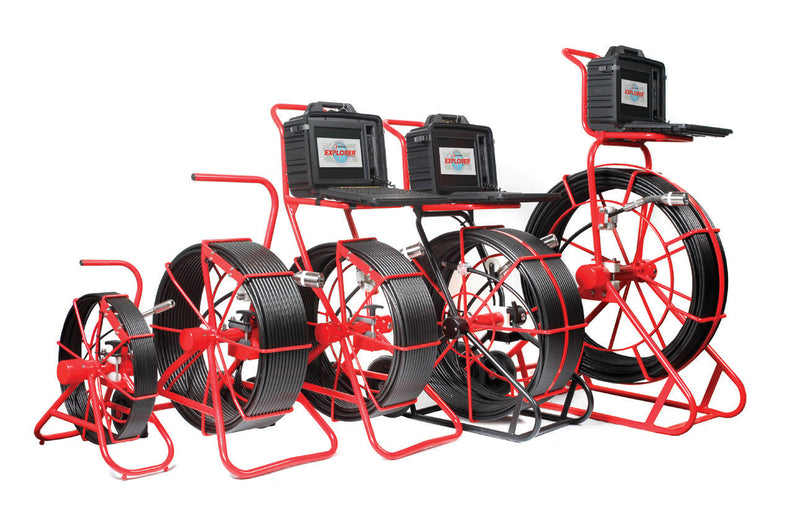

The Spartan Tool Explorer Trap Jumper Inspection Camera System is a push-rod video inspection camera for Up to 9" lines.
The Trap Jumper camera for the Explorer system is flexible enough to handle the tight bends and curves of a commercial trap pipe while still strong enough to be pushed the distance—up to 130 feet.
Common Questions
- What pipe sizes does this camera work in?
- This system is built for Up to 9" lines, per Spartan Tool's own specifications.
- How long is the push rod?
- 8.6 mm, per the vendor's specification sheet.
- How big is the camera head?
- The camera head is 30mm in diameter.
- Can a locator find this camera head underground?
- Yes -- it carries a built-in 512 Hz sonde that a compatible locator or transmitter can trace from the surface.
- How long does the battery last?
- Up to 9 hours per charge, per Spartan Tool's own rating.
Specifications
-
Type: Inspection Camera
-
Warranty: 2 years (Spartan Tool equipment warranty)
-
MPN: 64051011C
-
Pipe Size Range: Up to 9"
-
Push Rod Diameter: 8.6 mm
-
Camera Head (mm): 30
-
Video Resolution: 720 x 576
-
Push Rod Length (ft): 130
-
Sonde Frequency (Hz): 512
-
Battery Runtime (hrs): 9
-
Waterproof Rating: IP54
-
Overall Width (in): 17.5
-
Overall Height (in): 20.5
Technical Data: Trap Jumper
-
Weight: 26 lbs
-
Height: 20.5"
-
Width: 17.5"
-
Depth (folded): 12.2"
-
Depth (unfolded): 18.8"
-
Rod length: 130 ft (standard)
-
Rod diameter: 8.6 mm
-
Camera length: 44 mm
-
Camera diameter: 30 mm
-
Battery: Li-ion (9 hrs running time)
-
Ingress protection, reel: IP54
-
Ingress protection, camera: IP68
-
Light source: 12 LED
-
LED output: 41 lumen
-
Resolution: 720 x 576
-
Minimum bend radius: 3"
-
Sonde frequency: 512 kHz
-
Control box IP rating: IP64 open & closed
-
IP rating (manual): Box- IP54 open, IP67 closed
-
Pipe size: UP TO 9" PIPES
-
Operating temp: 14°F to 122°F / -10°C to +50°C
-
Memory: 32 GB SSD
-
Voltage: 12v DC / 230v AC / 110v DC
From Spartan Tool's own documentation (TrapJumper brochure, TrapJumper manual).
