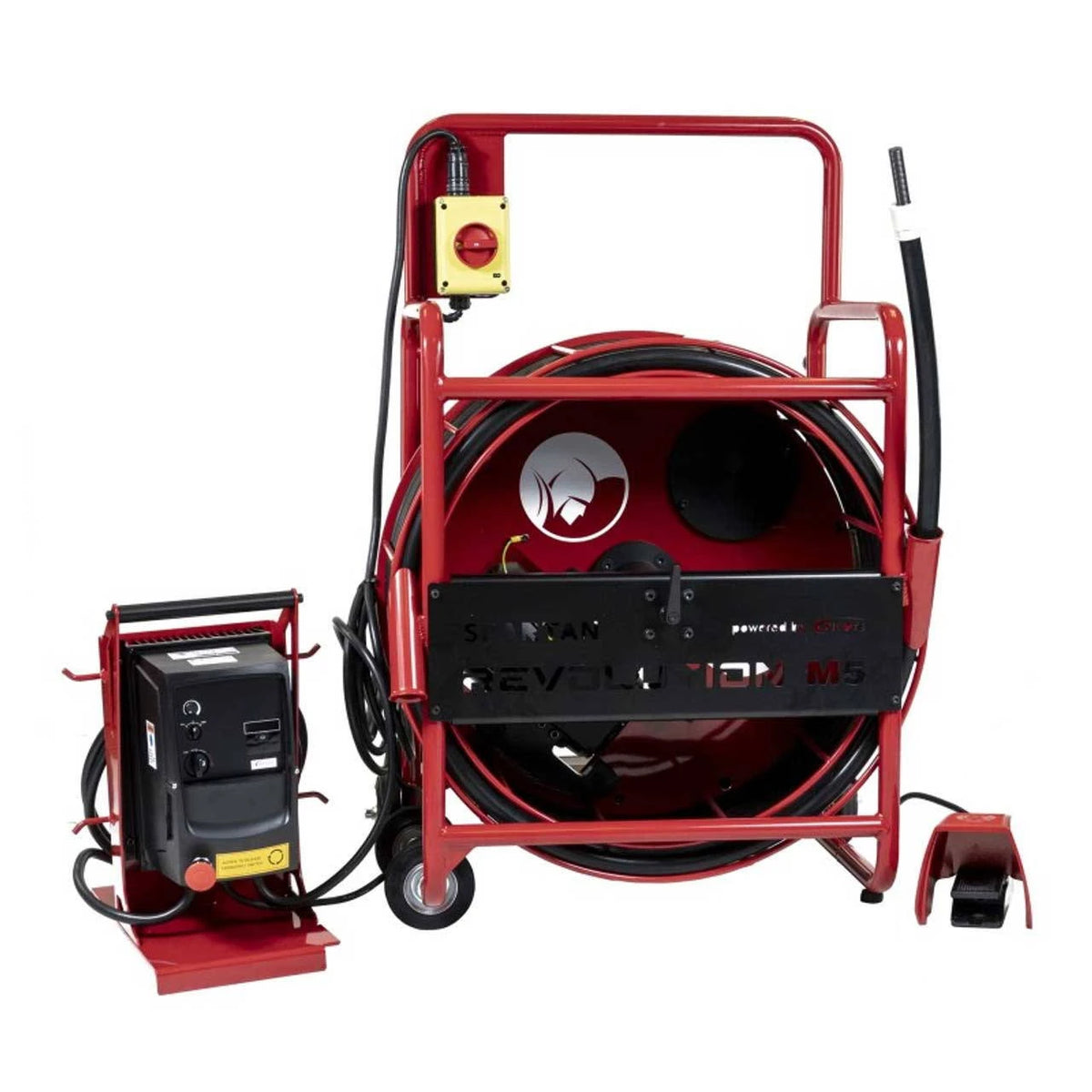

Spartan Tool Revolution M5 3570032018ST

The Spartan Tool Revolution M5 is a flex shaft machine for 4" to 12" lines.

The M5 is a powerful and efficient multi-use system. It is the go-to for liner and concrete removal, but is also extremely effective on tough cutting and cleaning jobs. It features 60' of 3/4" cable with a thick casing that can be extended with (2) 36' extensions. For use in 4" to 12" lines.

Features

• The go-to for liner and concrete removal in large diameter pipe
• Designed for heavy descaling, root removal, CIPP and concrete removal
• Backed up by an extensive selection of large diameter tools

Common Questions

What pipe sizes does the Revolution M5 work on?

The Revolution M5 is built for 4" to 12" lines.

What cable does the Revolution M5 take?

60 ft of 3/4" shaft (+ 2 x 36 ft extension).

What power does the Revolution M5 need?

400 volt, 3-Phase, 30 AMP.

Is the Revolution M5 a special-order item?

Yes — the Revolution M5 is special order; expect a longer lead time.

Is there anything else required to buy the Revolution M5?

One-day training course at Picote Solutions required with purchase of the M5. is required with purchase.

Specifications

• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 3570032018ST
• Series: Revolution M5
• Device Type: Flex Shaft Machine
• Pipe Size Range: 4" to 12"
• Cable Capacity: 60 ft of 3/4" shaft (+ 2 x 36 ft extension)
• Motor RPM: 500 - 1500
• Shaft Casing: Thick
• Electrical Requirement: 400 volt, 3-Phase, 30 AMP

Technical Data: Revolution M5

• Cleaning/descaling pipe sizes: 4" to 12"
• Cutting/reinstatement pipe sizes: 6" to 12"
• Liner removal pipe sizes: 3" to 9"
• Concrete, grout, slurry removal pipe sizes: 6" to 9"
• Usable length (brochure): Usable Length: 59'
• Range (manual): 18m (60 ft)
• Shaft extensions: Shaft Extensions: 36'
• Shaft diameter: Shaft Diameter: 3/4"
• Shaft (manual): 18 (3/4")
• Casing type: Casing Type: thick
• Output power (brochure): Output Power: 3.0 kW
• Output (manual): 400-480V: 4.0kW
• Output footnote: 2 Before serial number 00057 3kW
• Rotation speed: 500 to 1500 RPM
• Power source (brochure): 400 volt, 3-Phase, 30 AMP
• Power source (manual): 400-480V
• Weight (brochure): Weight: 249 lbs
• Machine weight (manual note): 113kg (249 lbs)
• Control box weight: Control Box Weight: 35 lbs
• Weight (manual table): 129 (284)
• Dimensions (brochure): 45" x 34" x 19"
• Size (manual): 1150 x 854 x 48 mm (945 x 34 x 19")
• IP class: 54
• Sound pressure level: 85 dB (A)
• Sound power level: 98 dB (A)

From Spartan Tool's own documentation (RevolutionM5, RevolutionM5 manual).
