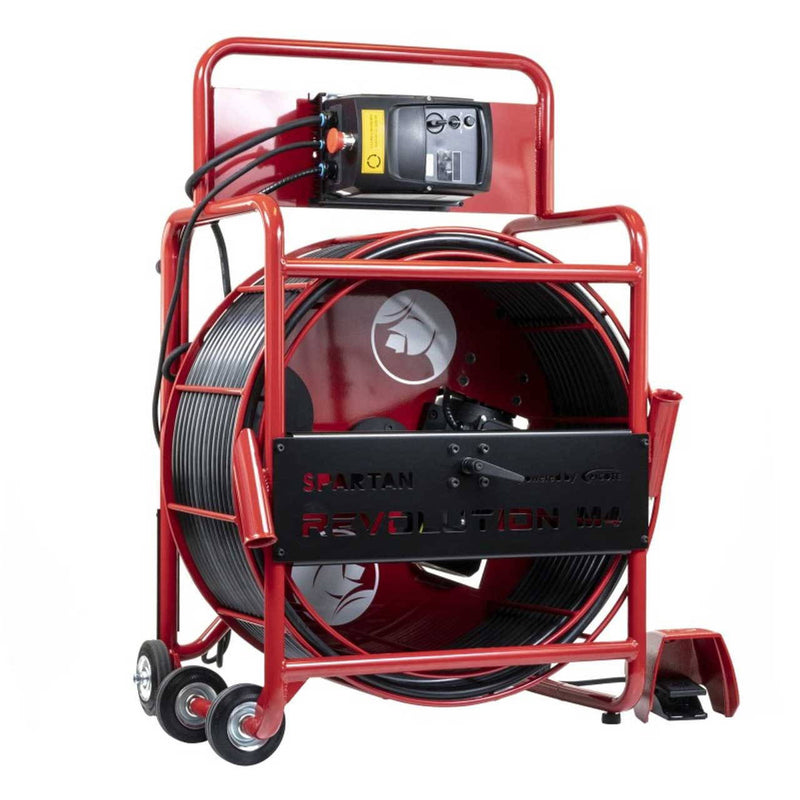

Spartan Tool Revolution M4 3560032012ST

The Spartan Tool Revolution M4 is a flex shaft machine for 3" - 8" lines.

Power is key with the M4. It requires 30 ams of power, so a generator may be needed. The M4 can handle your most difficult blockages and is great for epoxy coating long lengths. The 1/2" cable with thick casing comes with 100' of cable and can be extended by an additional 50' for 3" to 8" pipes.

Features

• Thick shaft casing offers more pushing power and composure in large diameter pipes
• RPM range of 500 to 1475 allows for precise control and efficient cleaning
• Designed for use in descaling, root removal, epoxy brush coating, CIPP reinstatements & removal, plus concrete and metal removal

Common Questions

What pipe sizes does the Revolution M4 work on?

The Revolution M4 is built for 3" - 8" lines.

What cable does the Revolution M4 take?

100 ft of 1/2" shaft (+ 32 ft extension).

What power does the Revolution M4 need?

110/120 volt, 15 AMP.

Specifications

• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 3560032012ST
• Series: Revolution M4
• Device Type: Flex Shaft Machine
• Pipe Size Range: 3" - 8"
• Cable Capacity: 100 ft of 1/2" shaft (+ 32 ft extension)
• Motor RPM: 500 - 1475
• Shaft Casing: Thick
• Electrical Requirement: 110/120 volt, 15 AMP

Technical Data: Revolution M4

• Cutting/reinstatement pipe sizes: 3" to 8"
• Coating pipe sizes: 3" to 12"
• Usable length (brochure): Usable Length: 100'
• Range (manual): 30m (100 ft)
• Shaft extension: Shaft Extensions: 50'
• Shaft diameter: Shaft Diameter: 1/2"
• Shaft (manual): 12 (1/2")
• Output power (brochure): Output Power: 1.13 kW
• Output (manual): 120V: 1.13kW
• Power source: 110/120 volt, 15 AMP
• Weight (brochure): Weight: 196 lbs
• Weight (manual): 89 (196)
• Dimensions (brochure): 45" x 34" x 19"
• IP class: 54
• Sound pressure level: 85 dB (A)
• Sound power level: 98 dB (A)

From Spartan Tool's own documentation (RevolutionM4, RevolutionM4 manual).
