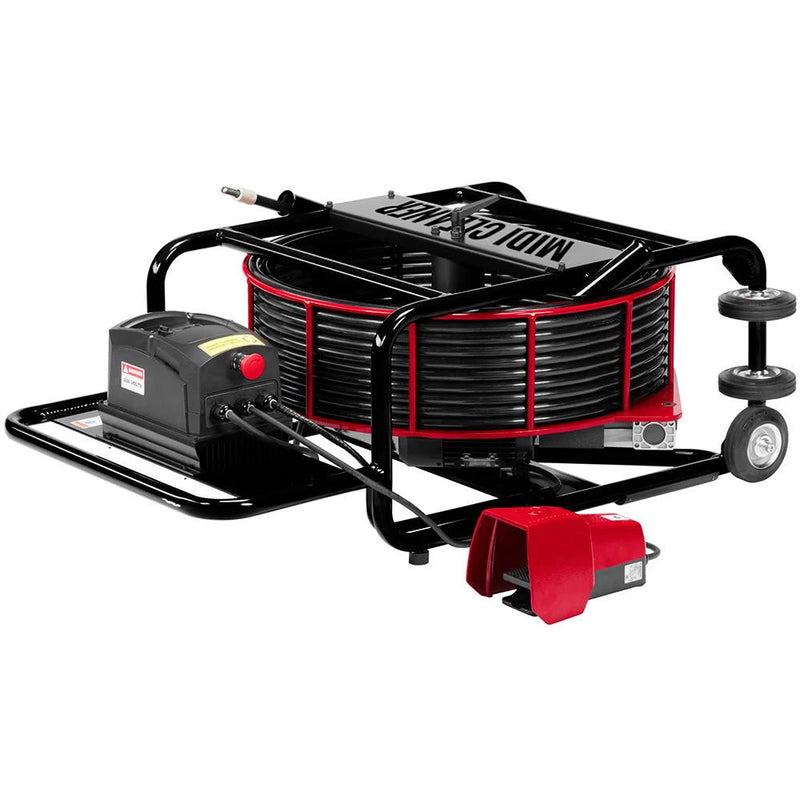

The Spartan Tool Revolution M2.5 High-Speed Flex Shaft Machine is a flex shaft machine for 2" - 6" lines.
The M2.5 is designed for cleaning, descaling and removing roots in 2" to 6" pipes and for cutting/reinstatements in 2" to 4" pipes. It offers the strength and flexibility of 3/8" shaft. Comes standard with a 75-foot reach but can be extended with additional shaft extensions. Use even in 2" pipes with multiple 90° bends!
Features
- Thin shaft casing that enhances maneuverability in tight spaces
- High-torque 3/8" shaft delivers the power to tackle tough blockages, including roots and hardened scale
- High-quality construction to withstand the demands of jobsites
Common Questions
- What pipe sizes does the Revolution M2.5 High-Speed Flex Shaft Machine work on?
- The Revolution M2.5 High-Speed Flex Shaft Machine is built for 2" - 6" lines.
- What cable does the Revolution M2.5 High-Speed Flex Shaft Machine take?
- 75 ft of 3/8" shaft (+ 32 ft extension).
- What power does the Revolution M2.5 High-Speed Flex Shaft Machine need?
- 110V, 15 AMP.
Specifications
-
Warranty: 2 years (Spartan Tool equipment warranty)
-
MPN: 3551031000ST
-
Series: Revolution M2.5
-
Device Type: Flex Shaft Machine
-
Pipe Size Range: 2" - 6"
-
Cable Capacity: 75 ft of 3/8" shaft (+ 32 ft extension)
-
Motor RPM: 500 - 1500
-
Shaft Casing: Thin
-
Electrical Requirement: 110V, 15 AMP
Technical Data: Revolution M2.5
-
Cutting/reinstatement pipe sizes: 2" to 4"
-
Cutting pipe sizes (manual): DN50-100 (2-4")
-
Coating pipe sizes (brochure): 2" to 8"
-
Coating pipe sizes (manual): Dn50-150 (2-6")
-
Usable length (brochure): Usable Length: 75'
-
Range (manual): 23m (75 ft)
-
Shaft extension (brochure): Shaft Extensions: 33'
-
Shaft extension (parts list): Shaft Extension, 32'
-
Shaft diameter: Shaft Diameter: 3/8"
-
Shaft (manual): 10 (3/8")
-
Casing type: Casing Type: thin
-
Output power: Output Power: 1.5 kW
-
Rotation speed: 500 to 1500 RPM
-
Weight (brochure): Weight: 144 lbs
-
Weight (manual): 65 (144)
-
Dimensions (brochure): 45" x 23" x 18"
-
Size (manual): 1122 x 712 x 466 mm (44 x 28 x 18")
-
IP class: IP Class: 54
-
Sound pressure level: 85 dB (A)
-
Sound power level: 98 dB (A)
From Spartan Tool's own documentation (RevolutionM2 5, RevolutionM2 5 manual).
