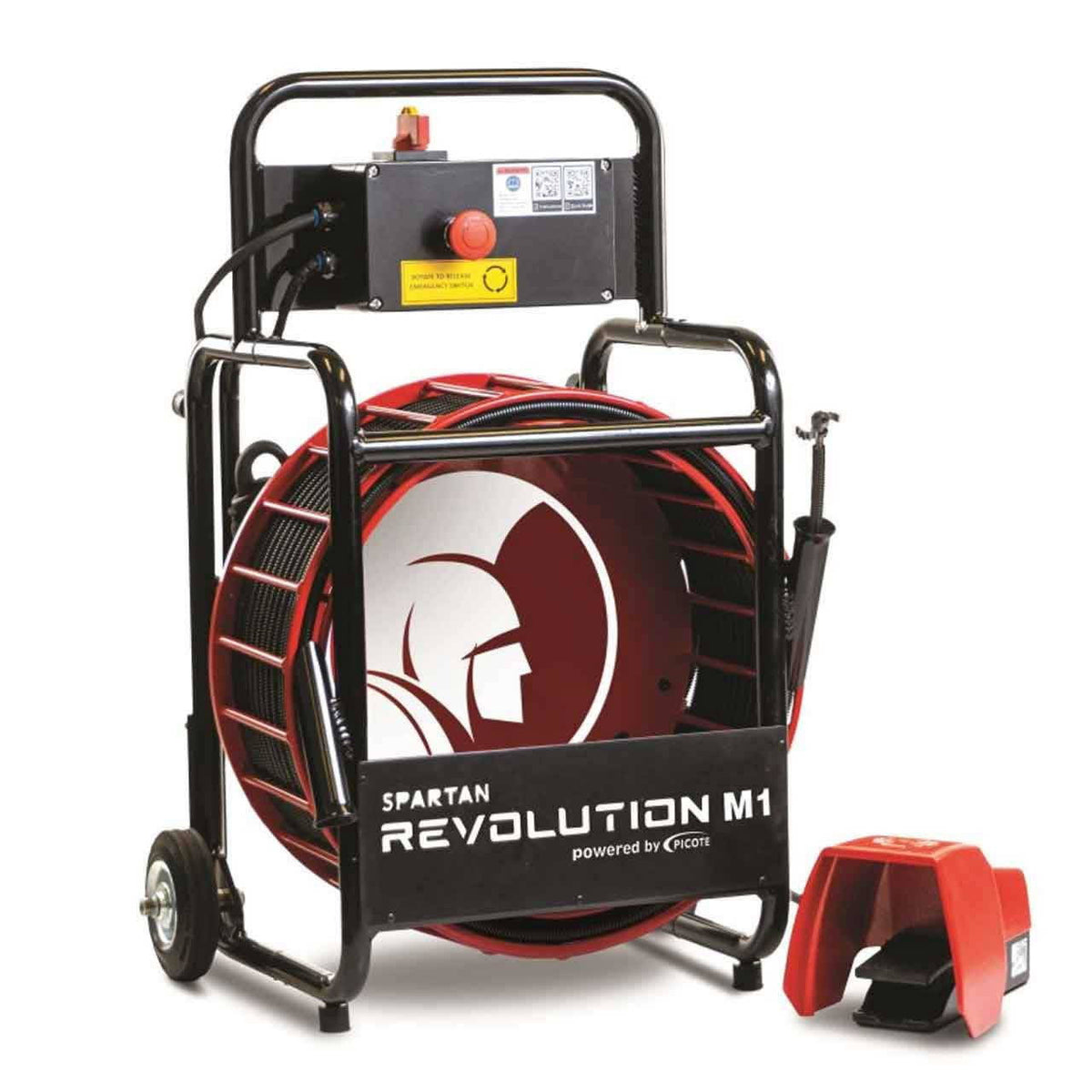

Spartan Tool Revolution M1 + C with Cleaning Package 3540001818ST

The Spartan Tool Revolution M1 + C with Cleaning Package is a flex shaft machine for 1-1/4" lines. It ships with Smart Sweeper Head 11/2-2" for 1/3" shaft, Cleaning Chain 1.57" and Front Drill Head 25mm for 2" pipes.

The M1 is designed to navigate P-traps, U-bends and pipes with multiple 90-degree bends. This flex shaft machine is made with a specially produced, highly flexible outer- casing, which is durable, flame, abrasion- and chemical-resistant. The 1/2" cable with flex casing comes with 50' of cable for use in 1-1/4" to 3" lines.

Features

• Small diameter capabilities with serious power and a compact design
• Designed for cleaning, root removal, epoxy brush coating, and cutting reinstatements in CIPP
• Ability to pass through 2" P-traps

Common Questions

What pipe sizes does the Revolution M1 + C with Cleaning Package work on?

The Revolution M1 + C with Cleaning Package is built for 1-1/4" lines.

What cable does the Revolution M1 + C with Cleaning Package take?

50 ft of 1/3" shaft.

What power does the Revolution M1 + C with Cleaning Package need?

110/120 volt.

What comes in the box with the Revolution M1 + C with Cleaning Package?

It ships with Smart Sweeper Head 11/2-2" for 1/3" shaft, Cleaning Chain 1.57" and Front Drill Head 25mm for 2" pipes.

Specifications

• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 3540001818ST
• Series: Revolution M1
• Device Type: Flex Shaft Machine
• Pipe Size Range: 1-1/4"
• Cable Capacity: 50 ft of 1/3" shaft
• Maximum Run (ft): 50
• Motor RPM: 500 - 2100
• Shaft Casing: Flex
• Electrical Requirement: 110/120 volt
• Battery Runtime (hrs): 6
• Kit Includes: Smart Sweeper Head 11/2-2" for 1/3" shaft;Cleaning Chain 1.57";Front Drill Head 25mm for 2" pipes

Technical Data: Revolution M1

• Cutting pipe sizes: Cutting 11/4-3"
• Coating pipe sizes: Coating 11/4-3"
• Shaft diameter: 1/3" shaft
• Usable length: Usable Length: 50'
• Max range: Max Range: 50 ft (no ext)
• Optional rotation speed: 900-2100 rpm
• Power source: 110/120 volt
• Motor output: 110V:1100
• Weight +C: Weight: 69 lbs
• Size: 740 x 519 x 404 mm (29 x 20 x 16")
• Sound pressure level: 90 dB (A)
• Sound power level: 103 dB (A)
• Casing: high flex casing
• Camera cable length (product page): 98 ft cable
• Camera cable length (technical data): 30m (100 ft)
• Sonde: 512hz integrated sonde
• Monitor: 7" color monitor
• Waterproof: IP68
• Single charge work time: 6 Hours
• LEDs (product page): 8 LEDs
• LEDs (technical data): Built-in 4xLED (White)
• Video resolution: PAL 720 x 576 25FPS Max. NTSC 720 x 488 30FPS Max
• External memory: SD Memory Card up to 32 GB

From Spartan Tool's own documentation (RevolutionM1, RevolutionM1 manual).
