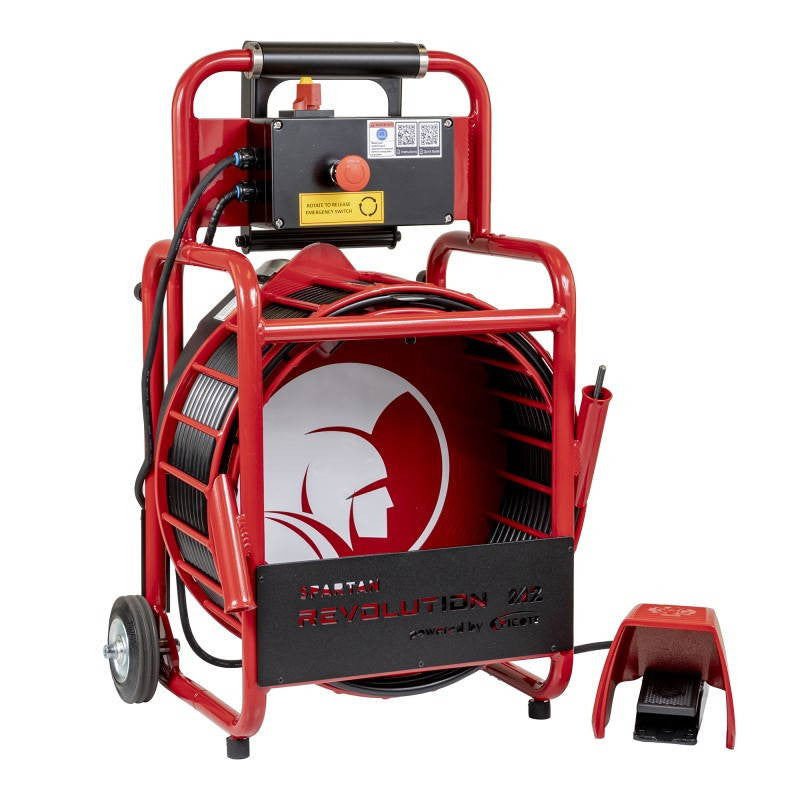

The Spartan Tool Revolution M2 + C is a flex shaft machine for 2" - 4" lines.
The M2 is a multi-purpose machine that can clean and prepare 2" to 4" pipes. It can also cut and grind CIPP liners, and apply epoxy coatings in 2" to 6" lines. The 1/3" cable with thick casing comes with 55' but can be extended to 75' with a coupling. The includedsafety clutch makes this machine very user-friendly.
Features
- Compact design with endless capabilities for tight spaces
- Designed for descaling, root removal, epoxy brush coating, and CIPP reinstatements & removal
- Outer shaft casing allows the operator to have a camera in the line while using the machine
Common Questions
- What pipe sizes does the Revolution M2 + C work on?
- The Revolution M2 + C is built for 2" - 4" lines.
- What cable does the Revolution M2 + C take?
- 50 ft of 1/3" shaft (+ 32 ft extension).
- What power does the Revolution M2 + C need?
- 110/125 volt.
Specifications
-
Warranty: 2 years (Spartan Tool equipment warranty)
-
MPN: 3540001817ST
-
Series: Revolution M2
-
Device Type: Flex Shaft Machine
-
Pipe Size Range: 2" - 4"
-
Cable Capacity: 50 ft of 1/3" shaft (+ 32 ft extension)
-
Maximum Run (ft): 50
-
Motor RPM: 500 - 2900
-
Shaft Casing: Thick
-
Electrical Requirement: 110/125 volt
-
Battery Runtime (hrs): 6
Technical Data: Revolution M2
-
Cutting pipe sizes: Cutting 2-3"
-
Coating pipe sizes: Coating 2-6"
-
Shaft diameter: 1/3" shaft
-
Usable length: Usable Length: 50'
-
Max range: Max Range: 50 ft + 32 ft ext
-
Shaft extension (brochure): extended 33'
-
Shaft extension (manual): extended 32 ft
-
Power source: 110/125 volt
-
Motor output: 110V:1100
-
Weight +C: Weight: 69 lbs
-
Size: 740 x 519 x 404 mm (29 x 20 x 16")
-
Sound pressure level: 90 dB (A)
-
Sound power level: 103 dB (A)
-
Camera cable (product page): 98 ft cable
-
Camera cable (technical data): 30m (100 ft)
-
Sonde: 512hz integrated sondes
-
Camera heads included: two 7/8" color camera heads
-
Monitor: 7" color monitor
-
Waterproof: IP68
-
Single charge work time: 6 Hours
-
LEDs: 12 LEDs
-
Video resolution: PAL 720 x 576 25FPS Max. NTSC 720 x 488 30FPS Max
-
External memory: SD Memory Card up to 32 GB
From Spartan Tool's own documentation (RevolutionM2, RevolutionM2 manual).
