Spartan Tool LightRay LR3 System 11200021-150

The Spartan Tool LightRay LR3 System is an UV cast-in-place pipe repair (CIPP) system for 3", 4", 6" lines.

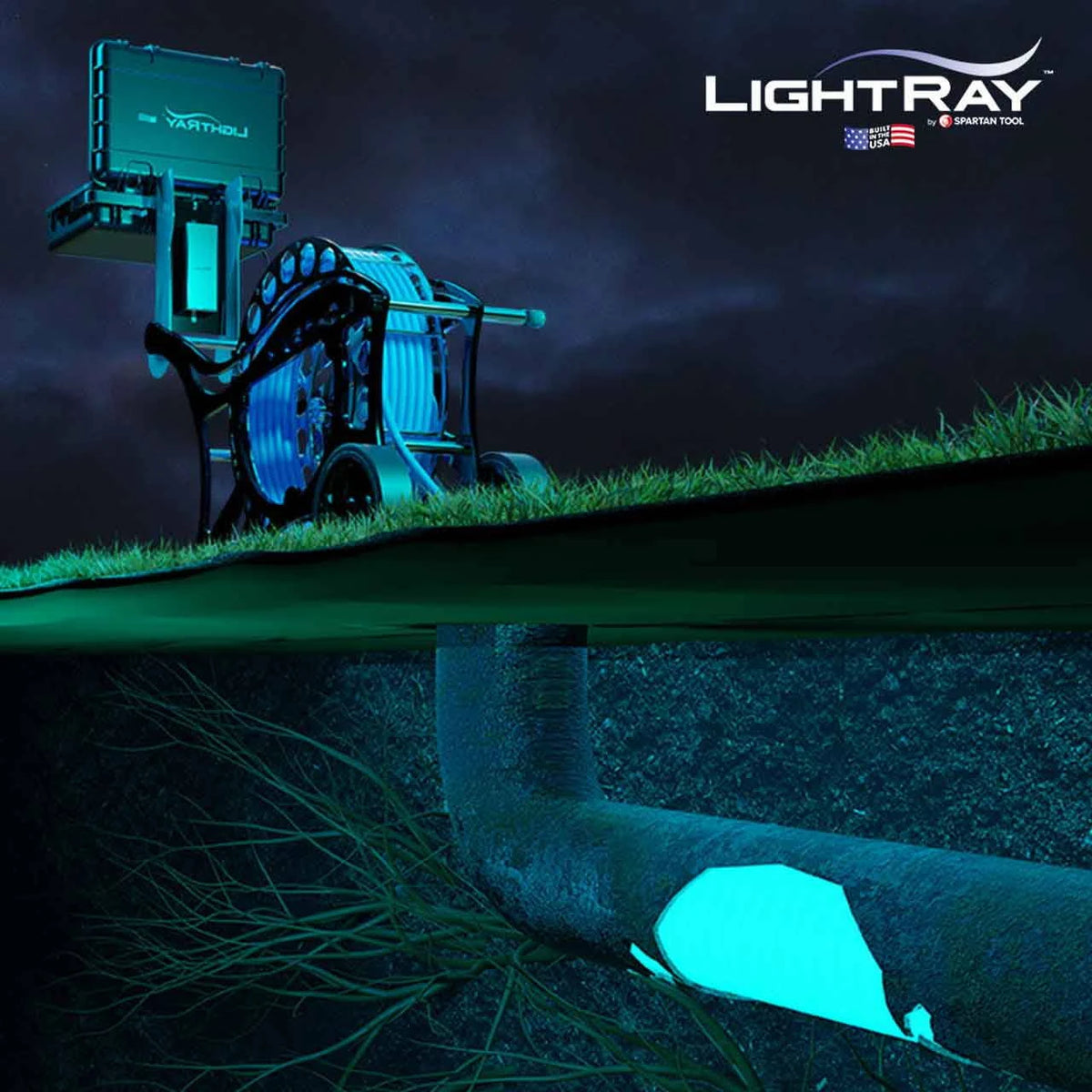

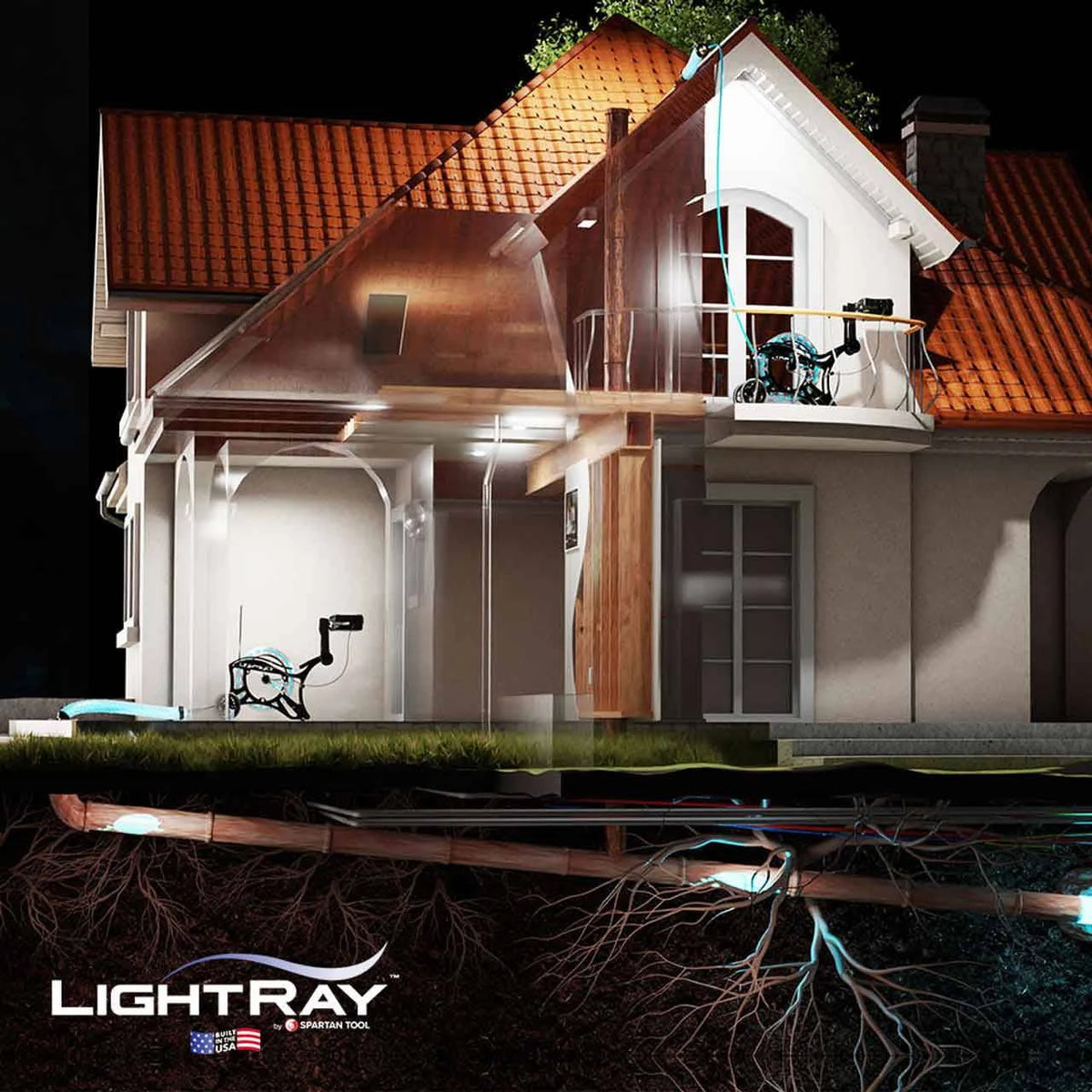

The LightRay LR3 System is the most advanced UV cast-in-place pipe technology that gives the operator complete control of the curing process. The non-VOC resin is pre- impregnated into the high-performance fiberglass liner and shipped ready to install, meaning no resin to mix or measure. Once the pipe is prepped, the liner is set in place, and the packer is inflated, curing is initiated by activating the light and is complete in as little as 10 minutes. The LR3 system can be used as both a pull-in-place and push- in-place spot repair system.

Common Questions

What system does this fit?

Spartan's own parts data lists this as fitting the LightRay LR3.

What pipe size does this cover?

This system covers 3", 4", 6" pipe.

Specifications

• Application: Sewer Lateral
• MPN: 11200021-150
• Certifications: ASTM F1216
• Pipe Size Range: 3", 4", 6"
• Fits System: LightRay LR3

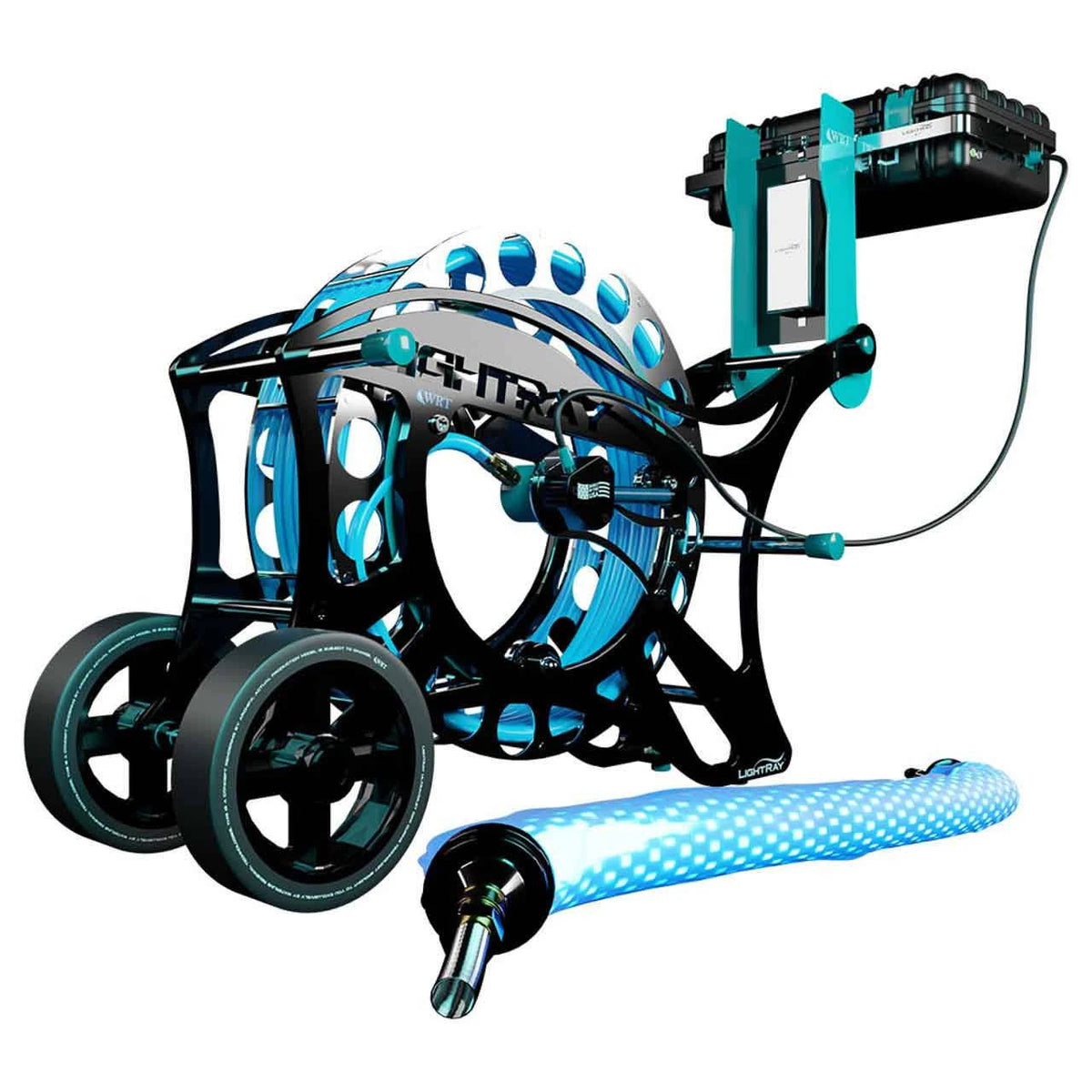

• Kit Includes: Spartan Tool LightRay LR3 System UV Light Packer (available in lengths of 5', 10', 20') Reinforced Silicone Bladders (multiple sizes available) Specialized Retrieval Harness Quick Disconnect System for easy packer switching User Manual

Technical Data: LightRay LR3

• Pipe repair diameters: 3", 4", or 6", including transitions
• Pipe repair lengths: 5', 10', 20'
• Curing time: as little as 10 minutes
• Shelf life: 6-month shelf life
• Structural standard: Exceeds the structural requirements of ASTM F1216
• System includes: includes training, reel, control box, and spare parts and tool kit

From Spartan Tool's own documentation (LR3 Brochure).
