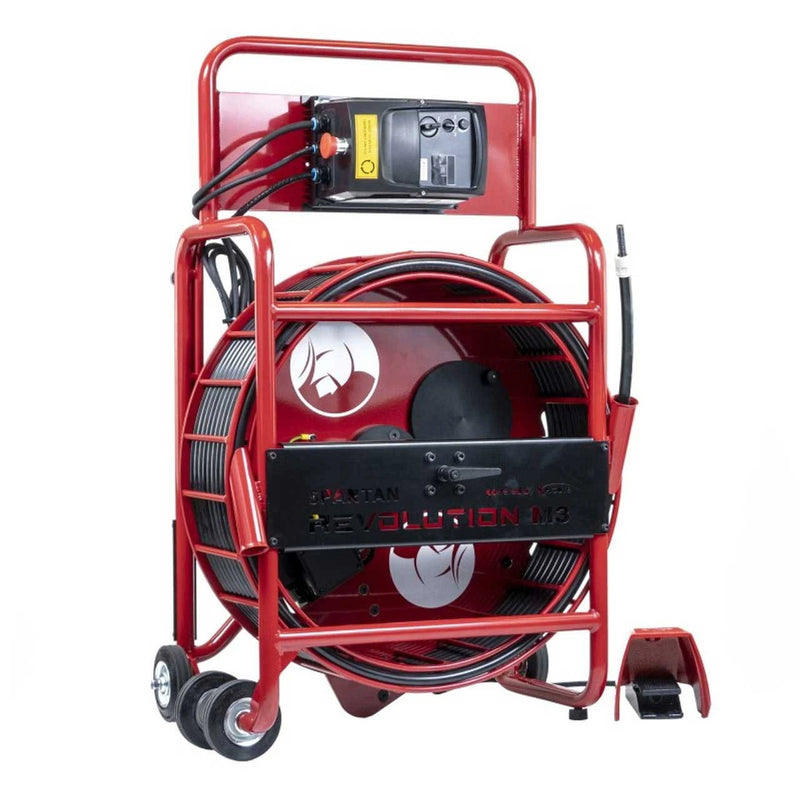

Spartan Tool Revolution M3 3551031220ST

The Spartan Tool Revolution M3 is a flex shaft machine for 3" - 6" lines.

The M3 is a multi-use machine for heavy descaling, pipe cleaning and reinstatements. It is ideal for use inside buildings due to its smaller size and weight, yet still offers great power and efficiency. The 1/2" cable with thin casing comes with 65' of cable and can be extended an additional 50' for blockages further down the line. The M3 can clean 3" to 6" lines and coats 3" to 8" lines.

Features

• Lightweight machine with thin shaft casing provides a more flexibility for larger diameter pipe
• Designed for descaling, root removal, epoxy brush coating, as well as CIPP reinstatements and removal
• Outer shaft casing allows the operator to have a camera in the line while using the machine

Common Questions

What pipe sizes does the Revolution M3 work on?

The Revolution M3 is built for 3" - 6" lines.

What cable does the Revolution M3 take?

65 ft of 1/2" shaft (+ 32 ft extension).

What power does the Revolution M3 need?

110/120 volt, 15 AMP.

Specifications

• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 3551031220ST
• Series: Revolution M3
• Device Type: Flex Shaft Machine
• Pipe Size Range: 3" - 6"
• Cable Capacity: 65 ft of 1/2" shaft (+ 32 ft extension)
• Motor RPM: 500 - 1500
• Shaft Casing: Thin
• Electrical Requirement: 110/120 volt, 15 AMP

Technical Data: Revolution M3

• Cutting pipe sizes: 3" to 6"
• Coating pipe sizes: 3" to 8"
• Usable length (brochure): Usable Length: 65'
• Range (manual): 21m (65 ft)
• Shaft extension: Shaft Extensions: 32'
• Shaft diameter: Shaft Diameter: 1/2"
• Shaft (manual): 12 (1/2")
• Output power: Output Power: 1.5 kW
• Rotation speed: 500 to 1500 RPM
• Power source: 110/120 volt, 15 AMP
• Weight (brochure): Weight: 152 lbs
• Weight (manual): 69 (152)
• Dimensions (brochure): 45" x 28" x 18"
• Size (manual): 1122 x 712 x 466 mm (44 x 28 x 18")
• IP class: 54
• Sound pressure level: 85 dB (A)
• Sound power level: 98 dB (A)

From Spartan Tool's own documentation (RevolutionM3, RevolutionM3 manual).
