Specifications
Description

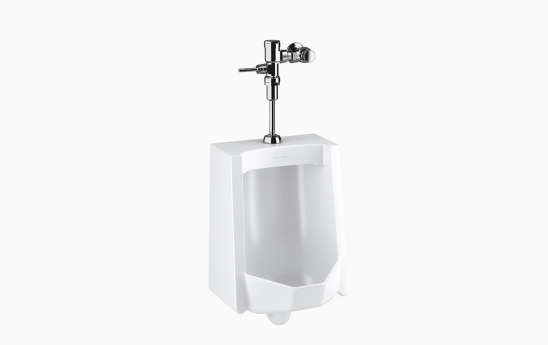

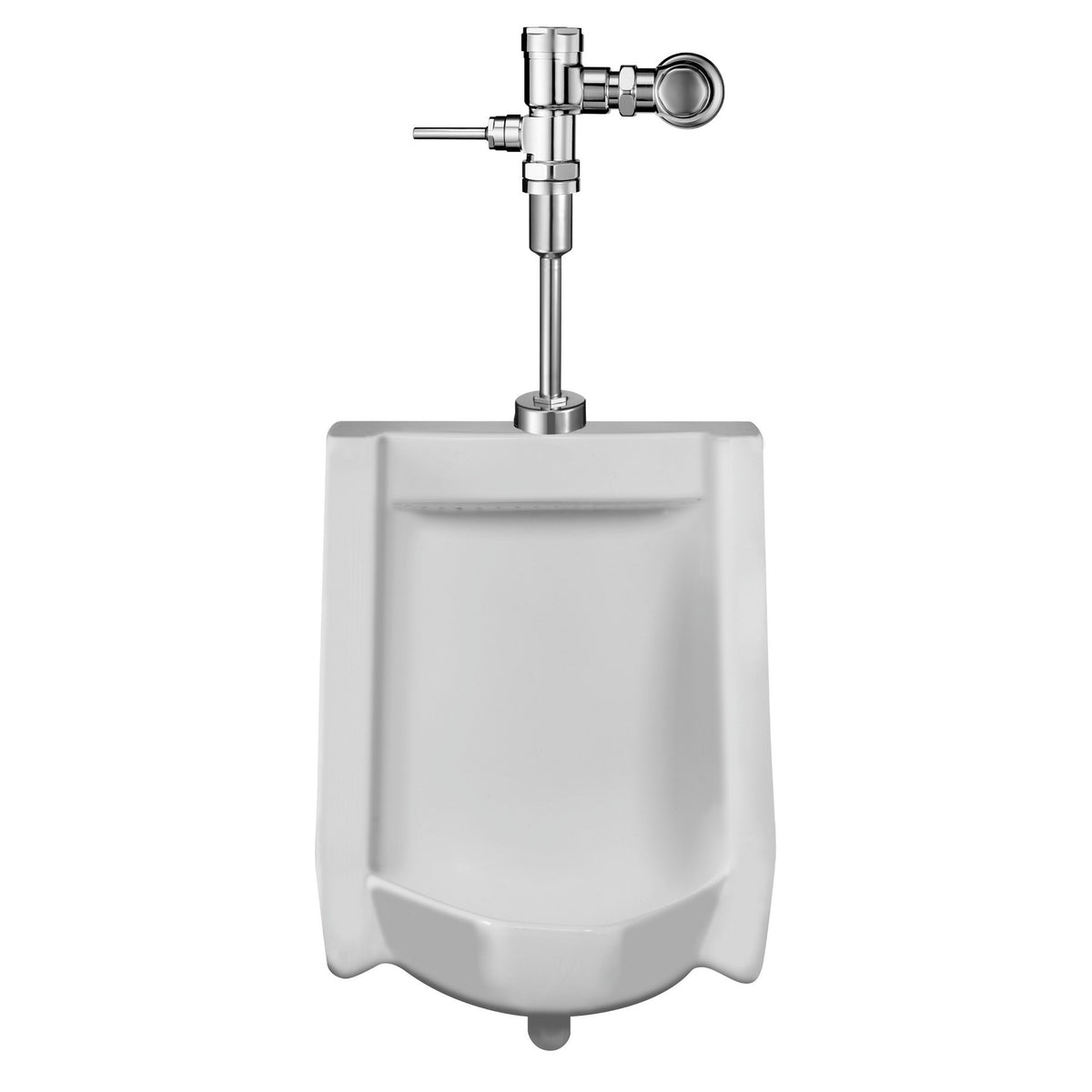

This is a complete urinal package: the SU-1009 vitreous china bowl paired with a Gem-2 186 flushometer. It features a vitreous china body.
Features
- Standard
- Flush volumes start at 0.125 gpf/0.5 Lpf
- Fixed volume piston with filtered O-ring bypass and ADA-compliant, metal oscillating non-hold-open handle ensure reliable, water-efficient operation
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance and components made from PERMEX® rubber compound for chloramine resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Designed to maximize and complement Sloan flushometers
- Universal high-efficiency model works with 0.125, 0.25 and 0.5 gpf Sloan flushometers
- Thorough washdown flushing action
- Durable, hygienic vitreous china construction
- Vandal resistant stainless steel strainer included
- IAPMO certified to meet or exceed ASME A112.19.2 standards
- Water Sense listed by EPA that qualifies for most rebate programs
- Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly
Common Questions
- What flushometer comes with this combo, and is it sensor or manual?
- This combo ships with a Gem-2 186 flushometer, which is manually operated (handle flush).
- What is the flush volume, and is it WaterSense certified?
- 1 gallons per flush (gpf).
- Is this an ADA-height fixture?
- Yes, this is the ADA / comfort-height model.
- Is this a top spud or rear spud connection?
- Top Spud.
Specifications
- Type: Urinal Combo
- Body Material: Vitreous China
- MPN: WEUS-1006.1004
- Certifications: ADA, Buy American Act, IAPMO
- Bowl / Flush Action: Wash Down
- Paired Flushometer: Gem-2 186
- Fixture Served: Urinal
- Trim Finish: Polished Chrome
- Spud Connection: Top Spud
- Flush Volume (gal): 1.0
Details
| Series | WEUS-1006.1004 | Device Type | Urinal Combo |
| Body Material | Vitreous China | Fixture Served | Urinal |
| Coating | Polished Chrome | Cycle volume gal | 1.0 gal |
| Spud connection | Top Spud | — | — |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Urinal
| Urinal
| Urinal
|
| Series | WEUS-1006.1004
| WEUS-1010.1015
| WEUS-7005.1410
| SU-7009
| WEUS-7005.1001
| WEUS-7000.1401
|
| Spec Sheet | — | |||||
| Install Sheet | ||||||
| Device Type | Urinal Combo
| Urinal Combo
| Urinal Combo
| Urinal Combo
| Urinal Combo
| Urinal Combo
|
| Body Material | Vitreous China
| Vitreous China
| Vitreous China
| Vitreous China
| Vitreous China
| Vitreous China
|
| Certifications | ADA, Buy American Act, IAPMO
| ADA, CALGreen, IAPMO, WaterSense
| ADA, IAPMO, WaterSense
| — | ADA, Buy American Act, IAPMO, WaterSense
| ADA, CALGreen, CEC, IAPMO, WaterSense
|
