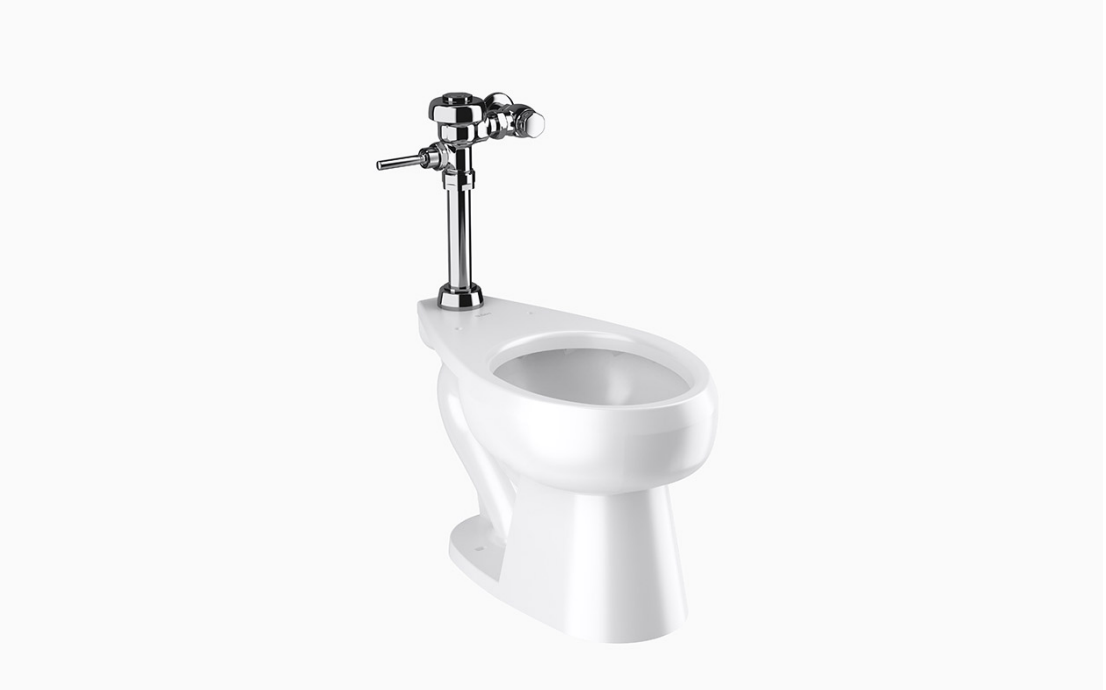

Sloan WETS-2003.1010 Water Closet Combo, ST-2009 Floor-Mounted Top Spud with Sloan 111-1.6

This is a complete water closet package: the ST-2009 vitreous china bowl paired with a Sloan 111 flushometer. Seat is sold separately. It features a vitreous china body.

Features

• Standard
• Flush volumes start as low as 1.28 gpf/4.8 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece to accommodate different height requirements
• High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Designed to maximize and complement Sloan flushometers
• Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
• Durable, hygienic vitreous china construction with elongated rim
• Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
• IAPMO certified to meet or exceed ASME A112.19.2 standards
• WaterSense compliant when used with a WaterSense compliant flushometer

Common Questions

What flushometer comes with this combo, and is it sensor or manual?

This combo ships with a Sloan 111 flushometer, which is manually operated (handle flush).

Is this floor-mounted or wall-mounted, and what rough-in does it need?

Floor-mounted.

What is the flush volume, and is it WaterSense certified?

1.6 gallons per flush (gpf).

What rim height class is this?

Standard Height.

Is this a top spud or rear spud connection?

Top Spud.

Specifications

• Type: Water Closet Combo
• Body Material: Vitreous China
• MPN: WETS-2003.1010
• Certifications: Buy American Act, BABA, IAPMO
• Bowl / Flush Action: Siphon Jet
• Rim Height: Standard Height
• MaP Score (g): 1000
• Paired Flushometer: Sloan 111
• Fixture Served: Water Closet
• Mount Type: Floor
• Trim Finish: Polished Chrome
• Spud Connection: Top Spud
• Flush Volume (gal): 1.6
