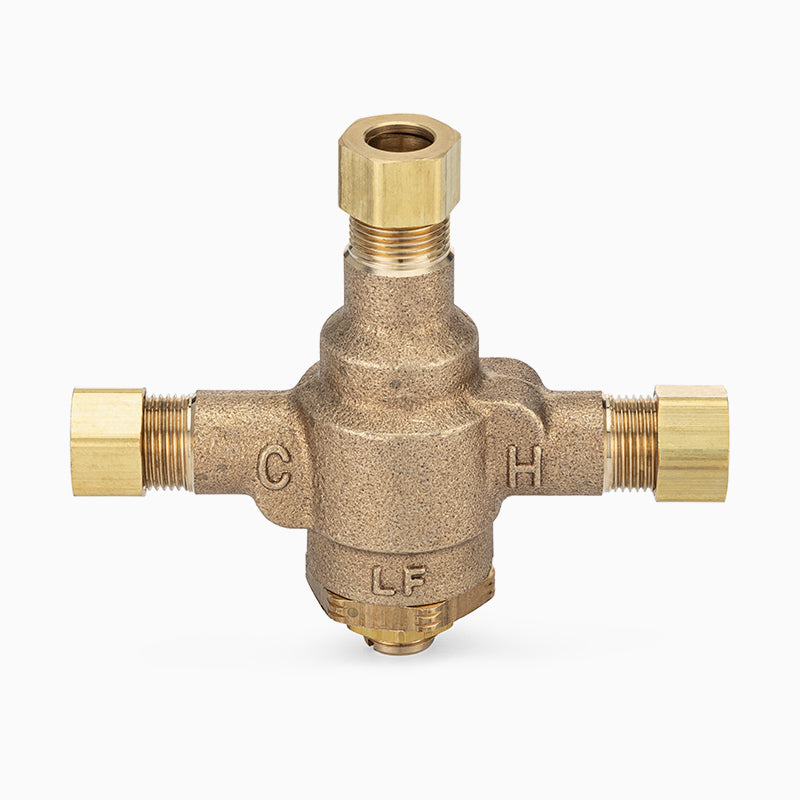

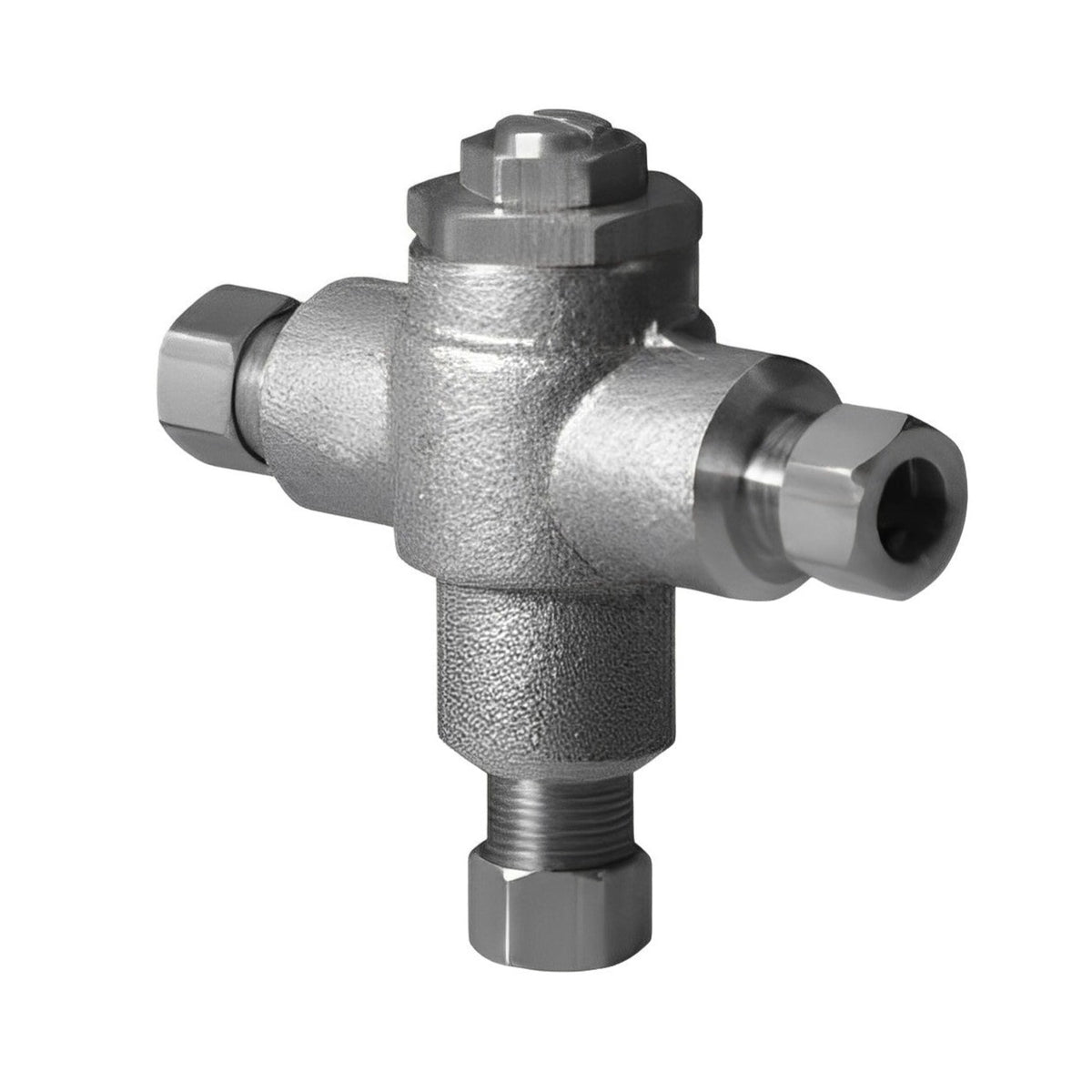

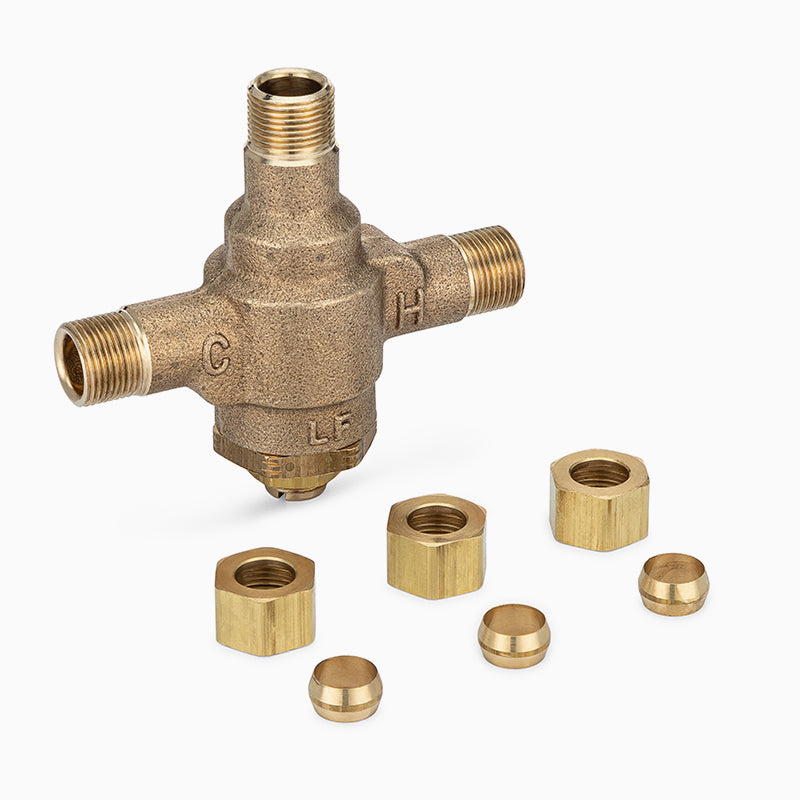

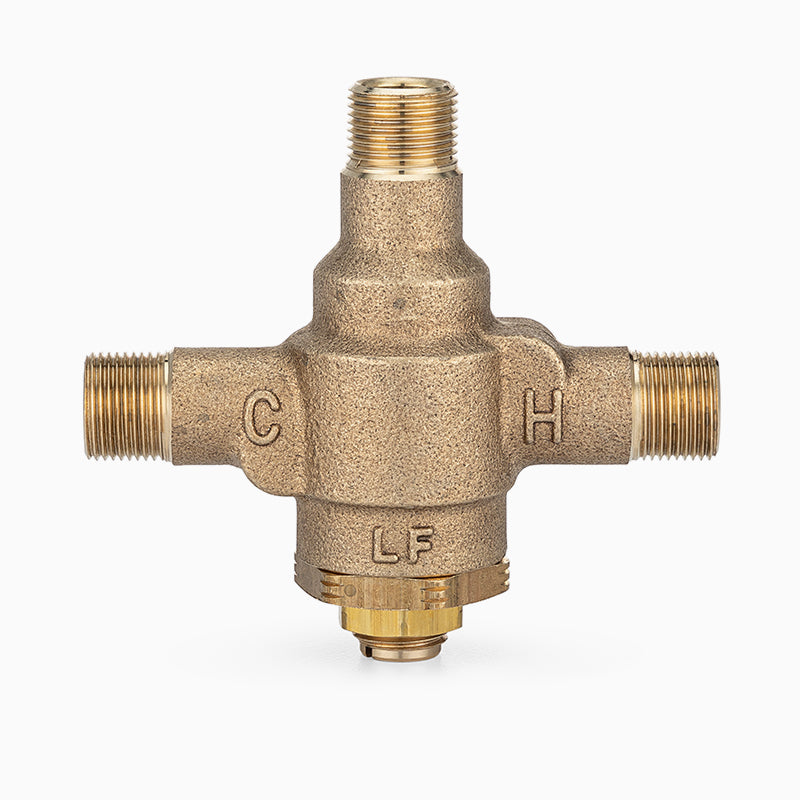

Sloan MIX-135-A Mixing Valve

This is the genuine Sloan MIX-135-A below-deck mixing valve for Sloan electronic faucets. This model is certified lead-free for potable-water installations.

The MIX-135-A is a high-quality thermostatic mixing valve designed for use with the BASYS and Optima series faucets. This product is designed to provide reliable and precise control over water temperature in commercial restrooms. One of the standout features of the MIX-135-A is its compliance with the “Safe Drinking Water Act” requirements for low lead in potable and non-potable water applications. This certification provides peace of mind to users, ensuring that the MIX-135-A is safe and healthy for use in commercial restrooms. The MIX-135-A is made from high-quality brass, ensuring a durable and long-lasting construction that can withstand the wear and tear of heavy use. With its precise temperature control, this thermostatic mixing valve delivers comfortable and consistent water temperatures, improving the overall restroom experience for users. Installation and maintenance of the MIX-135-A is straightforward, making it easy for businesses and facilities to upgrade their Sloan restroom fixtures. With its advanced features and trusted reputation, the MIX-135-A is an excellent choice for businesses looking to provide the best possible restroom experience for their end users.

Features

• Standard
• Designed for under-the-lavatory applications where the outlet temperature of hot water must be controlled for safe, economic use
• Installs in place of the Tee fitting supplied with the faucet prior to the solenoid valve
• Designed to quickly sense and compensate for temperature fluctuations induced by water temperature and pressure changes in the supply line
• Rugged construction features solid brass valve body and corrosion resistant internal components
• Water temperature adjustment stem with lock nut to prevent tampering
• Equipped with integral check valves at inlets
• 3/8” compression connection on inlets and outlet
• Meets all the performance standards of ASSE 1070 and CSA B125
• Capacity — standard: 4.0 gpm (15.0 Lpm)
• At 45 PSI differential (310 kPa), with hot water supply between 140°-180° F (60°-82° C).
• Maximum Hot Water Supply Temperature: 180° F (82° C)
• Minimum Hot Water Supply Temperature: 5° F (2.8° C) above set point
• Maximum Operating Pressure: 125 psig (862kPa)
• Minimum flow — standard: 0.25 gpm (1.0 Lpm) to ASSE 1016
• Factory set: 105° F (40° C)

Common Questions

Is this a genuine Sloan part?

Yes. The MIX-135-A is a genuine Sloan OEM replacement part, sold by City Supply Group as an authorized Sloan distributor.

Specifications

• MPN: MIX-135-A
• Certifications: ASSE-1070, IAPMO, NSF-372
• Lead-Free: Yes
• Product Role: Mixing Valve
