Specifications
Description

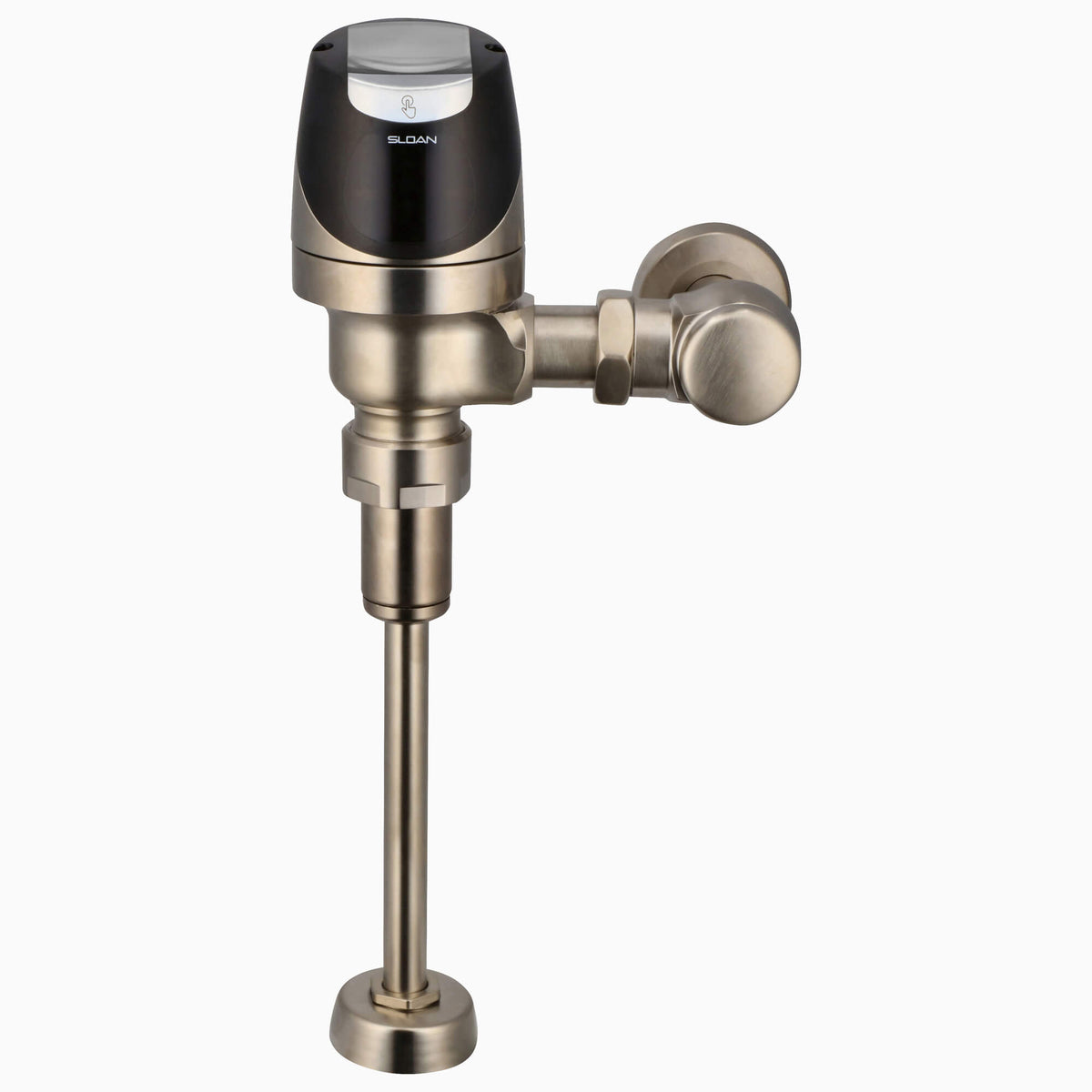

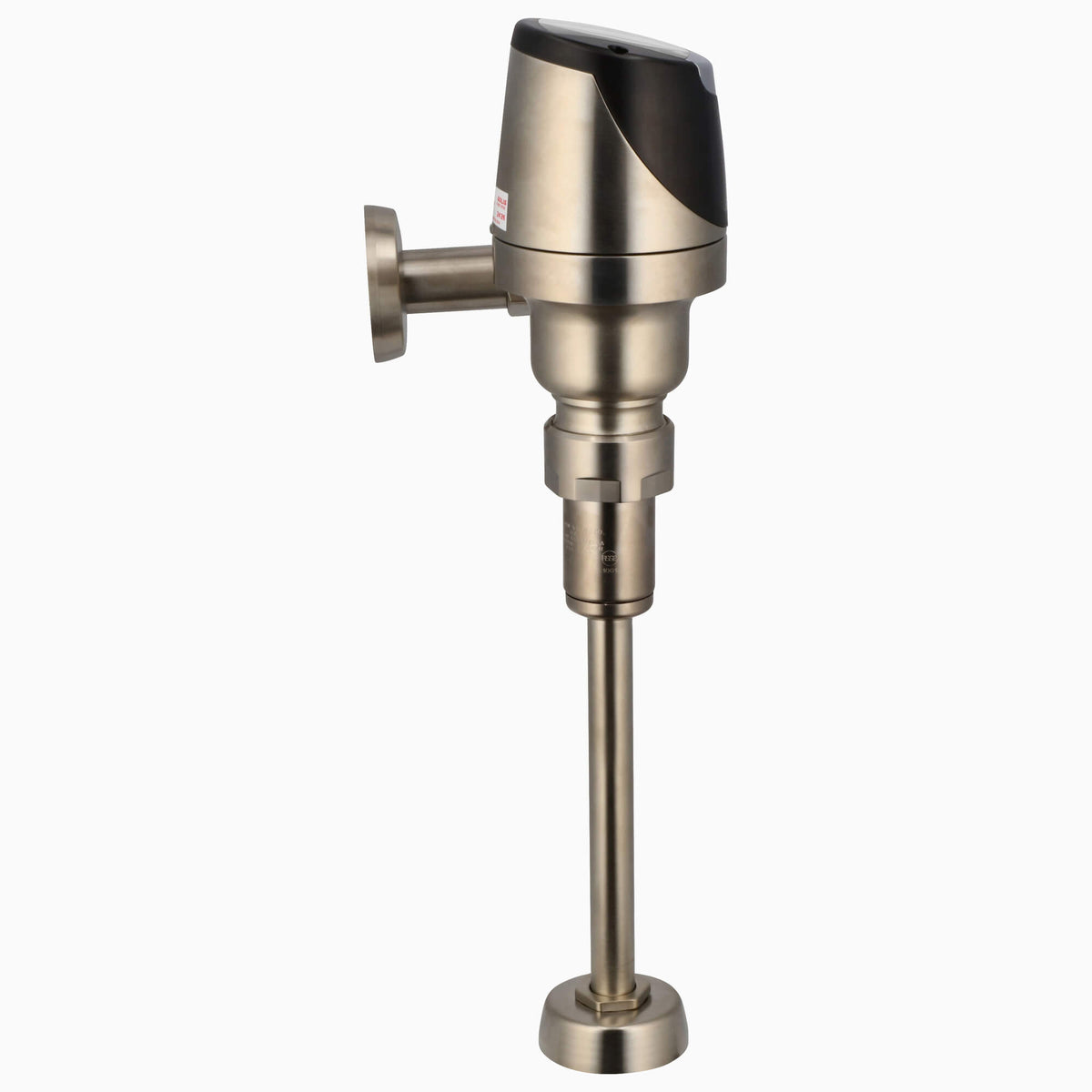

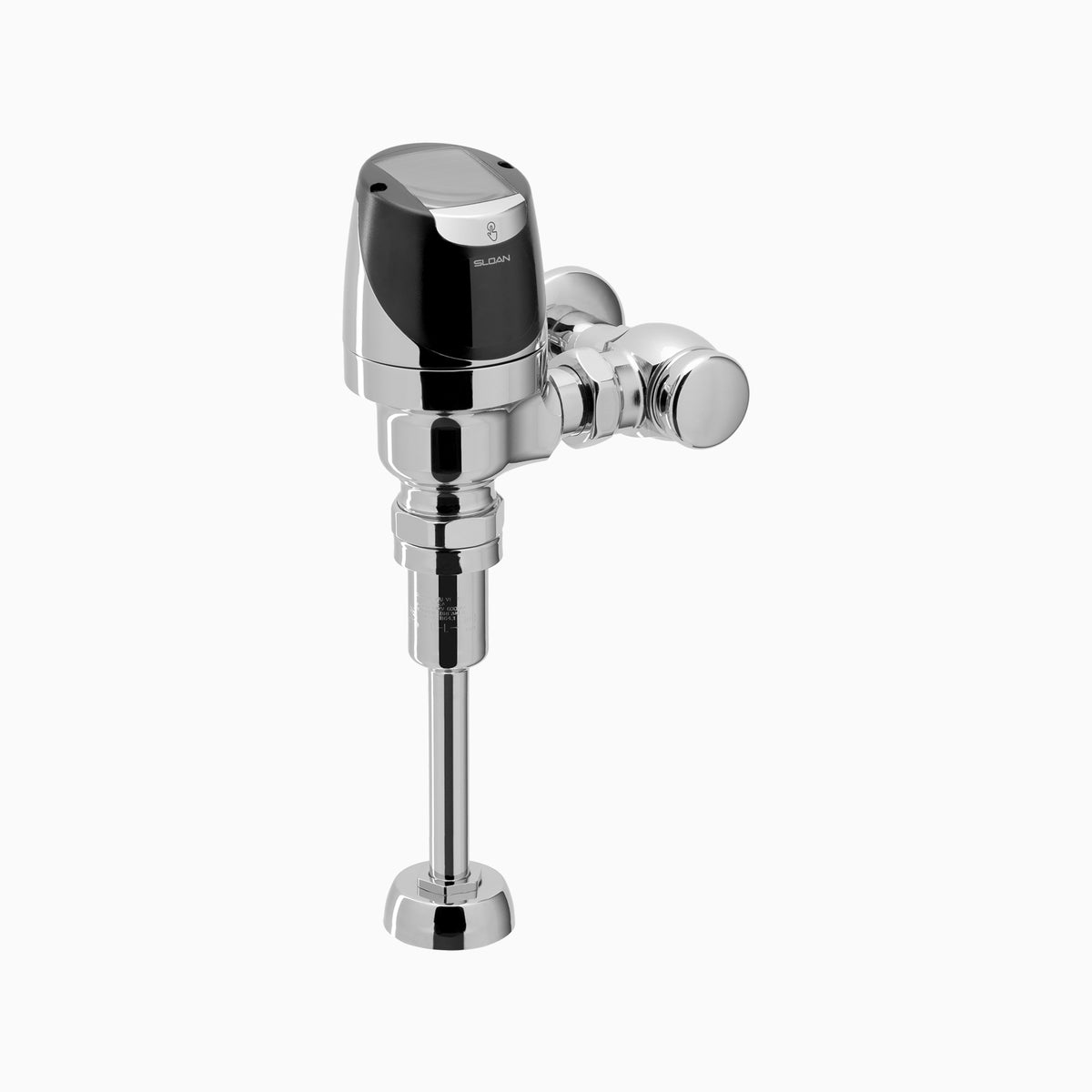

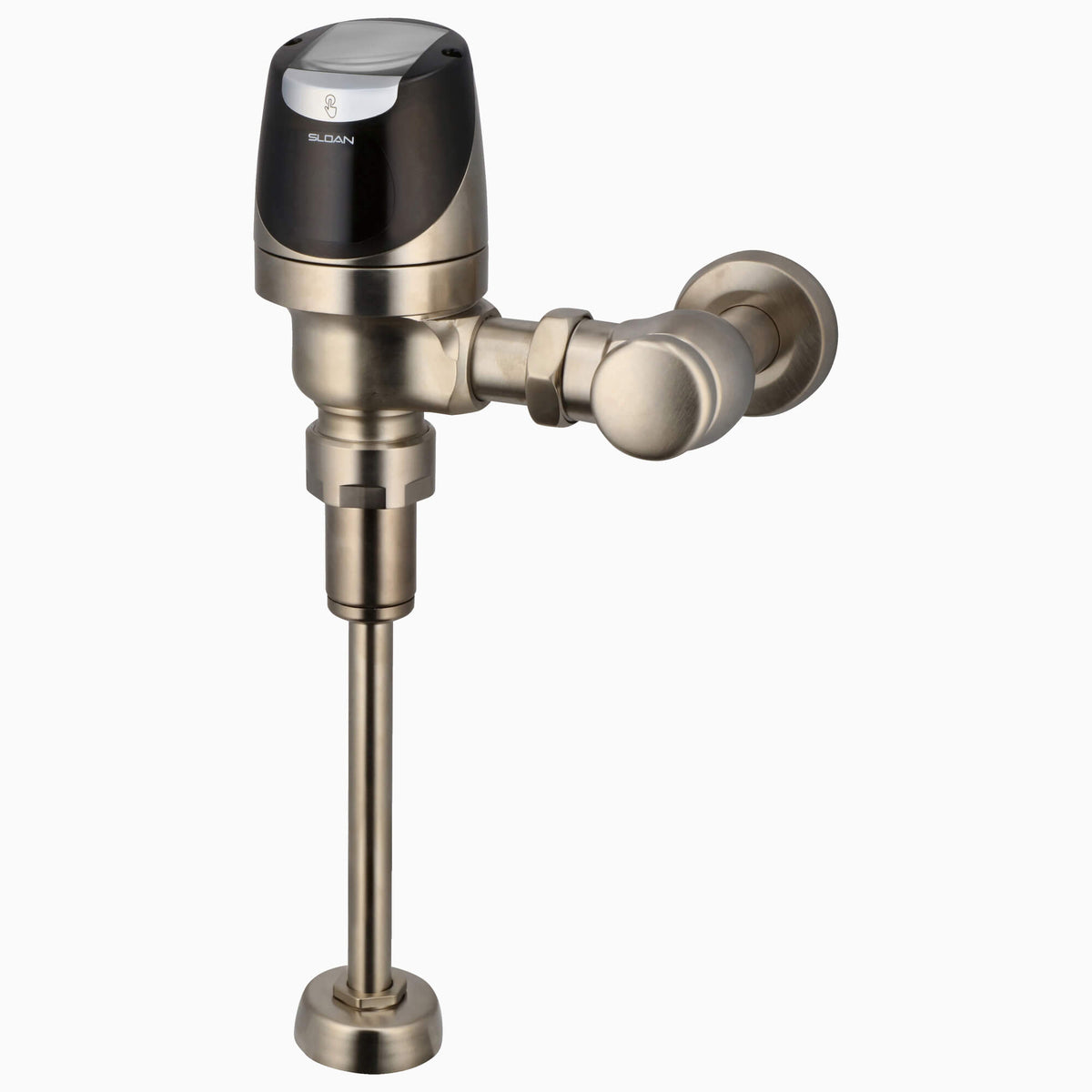

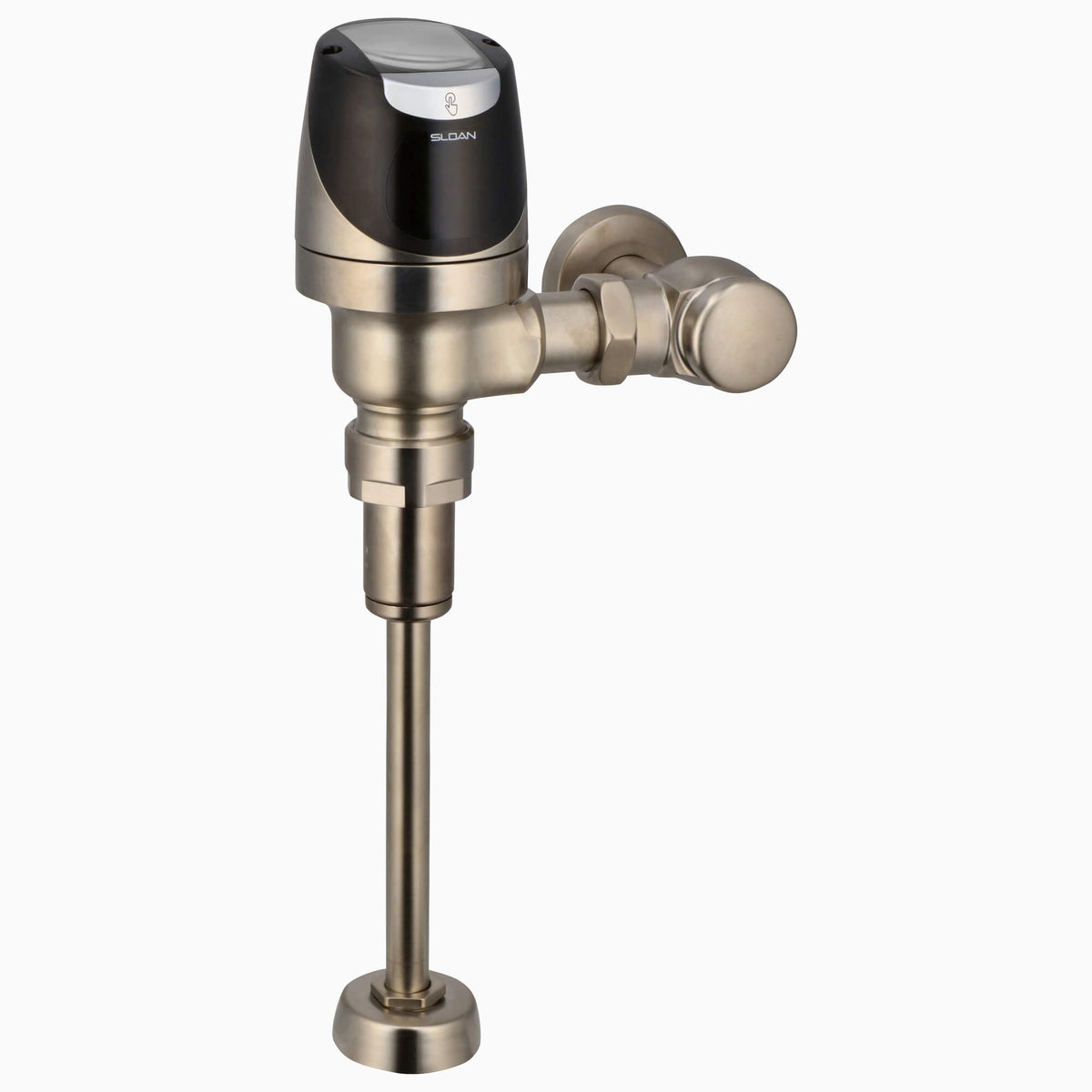

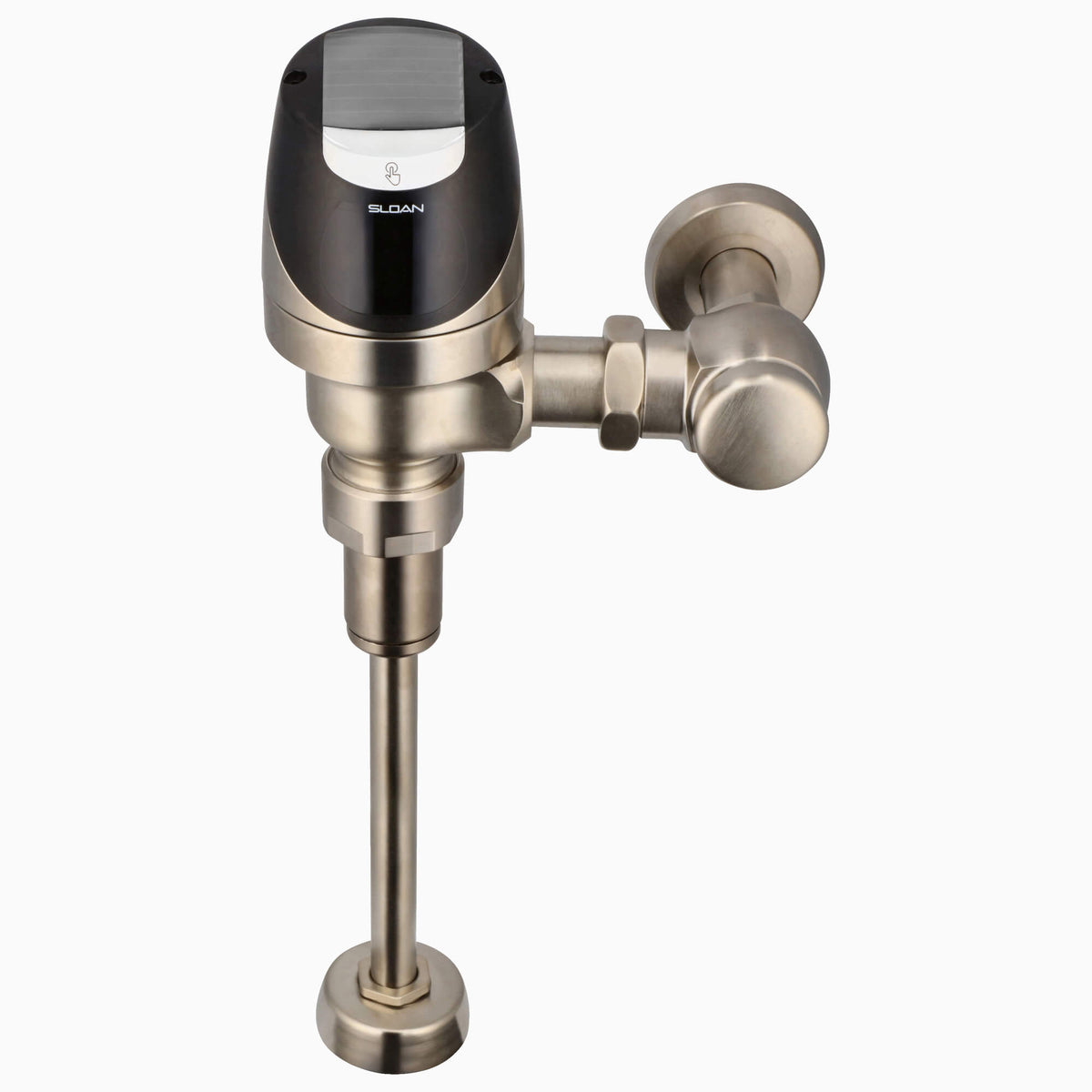

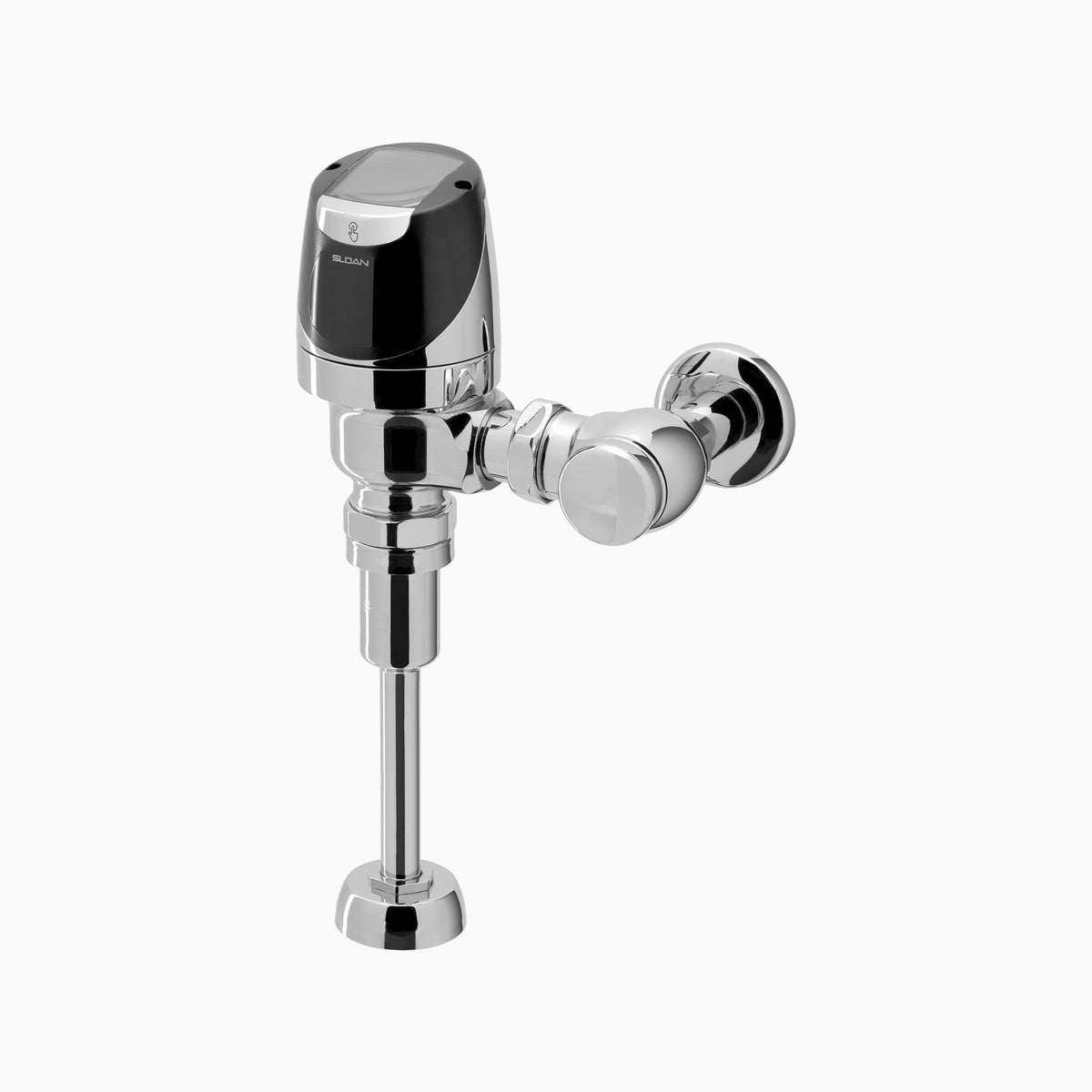

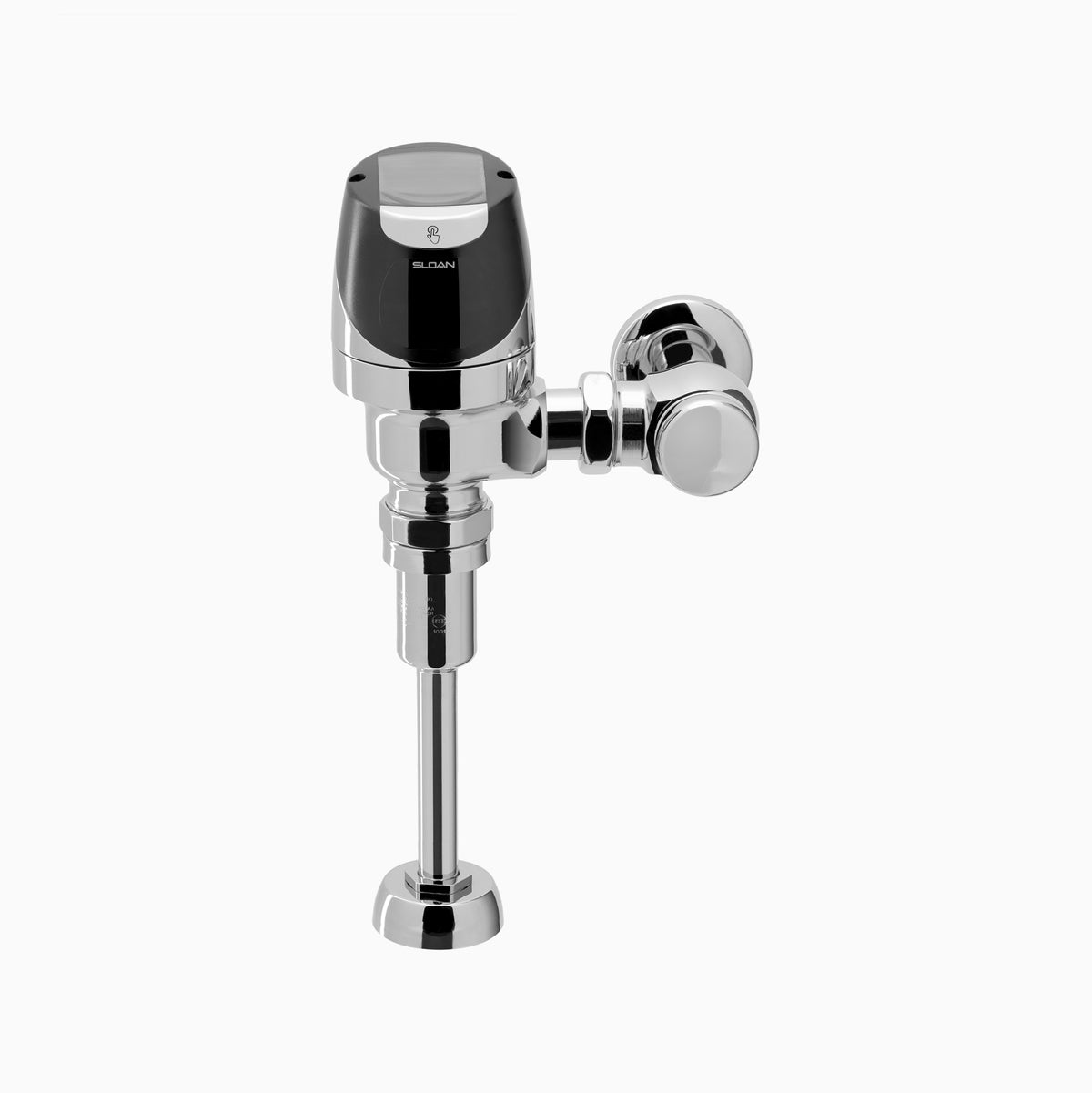

The Sloan SOLIS 8186-0.125-BN is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Solar-powered flushometer with chloramine-resistant seals and infrared sensor. Ideal for commercial urinals. Conserves water with fixed metering bypass.
Base configuration: no option suffixes on this model number (SOLIS 8186-0.125-BN).
Features
- 0.125 gpf, Brushed Nickel Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Solar
- Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
- User-friendly, three-second flush delay
- “Low Battery” Flashing LED
- High Copper, low zinc brass castings for dezincification resistance
- Solar Powered- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
- Four (4) Size AA Battery Back-up Power Source
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Valve shall be in compliance to the applicable sections of ASSE 1037
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Solar-powered, with a battery back-up for low-light conditions.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA, WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Sensor
- MPN: SOLIS 8186-0.125-BN
- Certifications: ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11.5"
- Volume per Flush (gal): 0.125
- Dual Flush: No
- Finish: Brushed Nickel
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Solar
- Power Supply Detail: 4x AA Batteries
- Sensor Type: Infrared
- Override Type: Electrical Override
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | SOLIS 8186 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | High-Chloramine-Resistant PERMEX Diaphragm |
| Operation | Sensor | Fixture Served | Urinal |
| Body style | Exposed | Coating | Brushed Nickel |
| Cycle volume gal | 0.125 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 11.5" |
| Spud connection | Top Spud | Override type | Electrical Override |
| Power source | Solar | Power supply detail | 4x AA Batteries |
| Sensor type | Infrared | — | — |
Certifications & Standards
| ADA | Buy American Act |
| BABA | IAPMO |
| WaterSense | ASSE-1037 |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
| Urinal
| Urinal
| Urinal
| Urinal
|
| Series | SOLIS 8186
| SOLIS BPW 8000
| SOLIS 8195
| SOLIS 8186
| SOLIS 8186
| SOLIS 8186
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
| Flushometer
|
| Inlet Size | 3/4"
| 1"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Outlet Size | 3/4"
| 1-1/2"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| — | — | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, UL, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, C-UL, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | — | 1-1/2" Offset (OFST), W/
| Small Wall Box (SWB), True Mechanical Override (TMO), HYD
| — | — | — |
