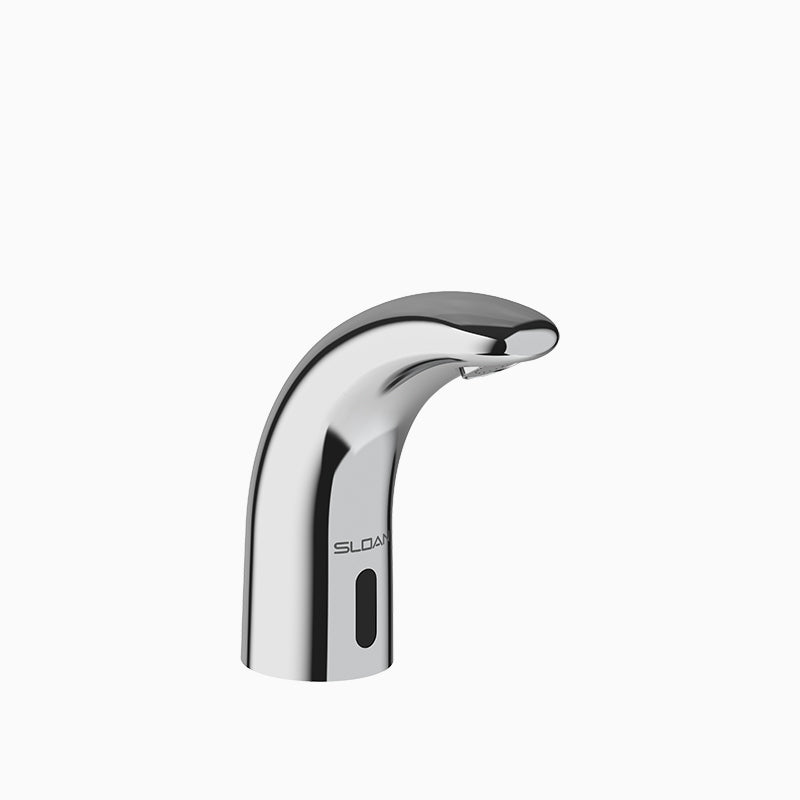

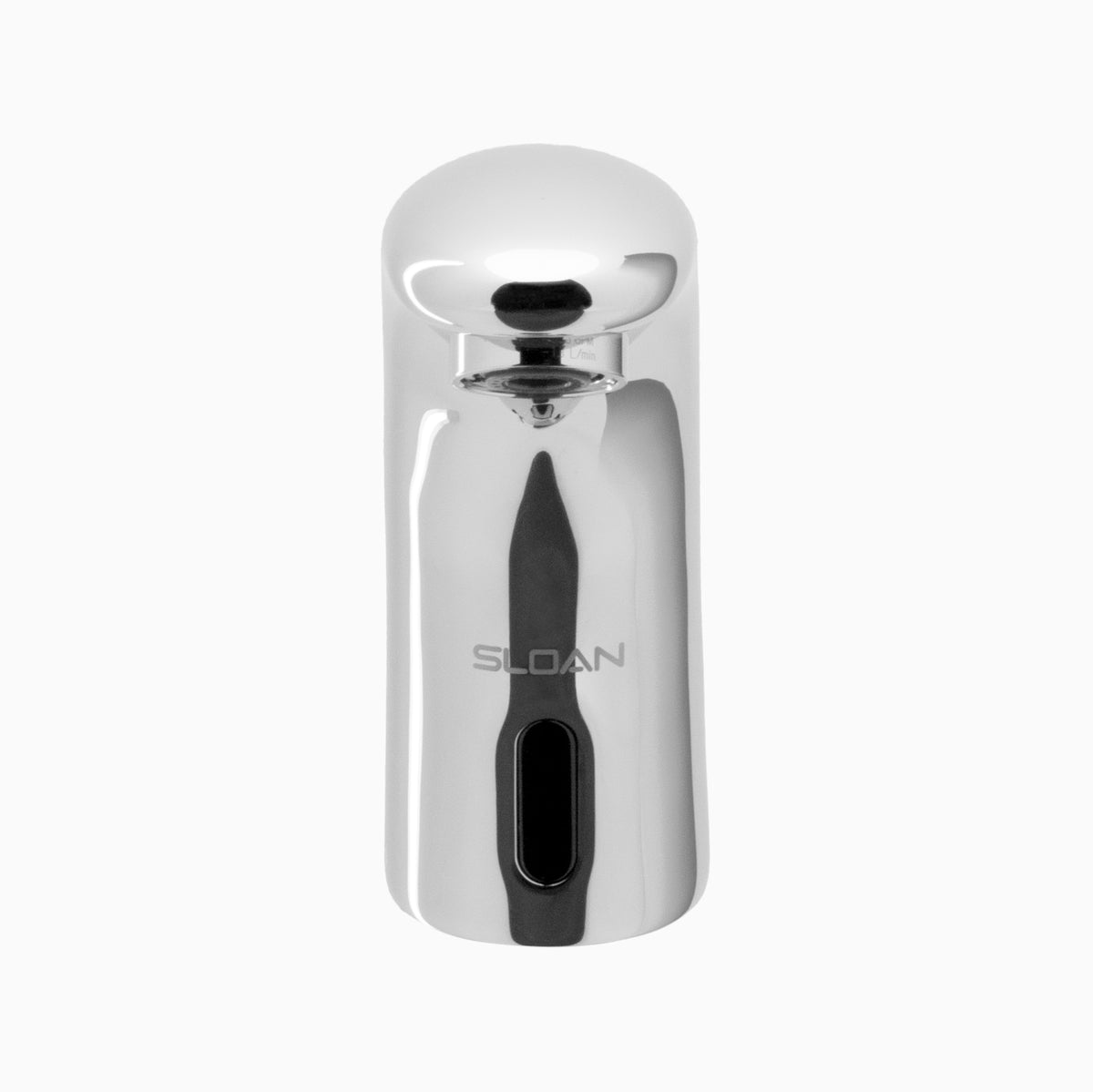

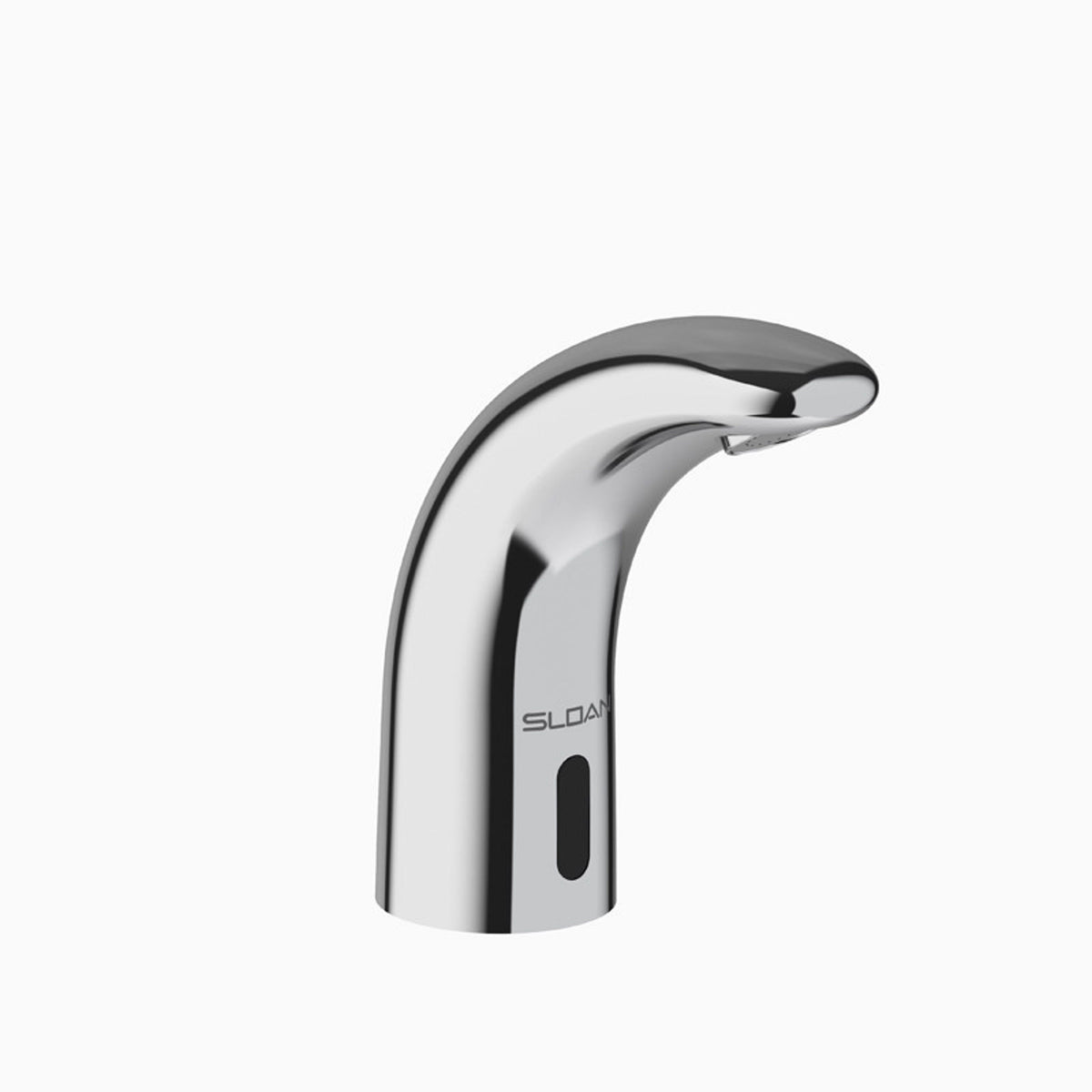

Sloan Standard SF-2400 0.5 GPM Plug Adapter Sensor Faucet, Polished Chrome

The Sloan SF-2400 is a Deck-mounted Standard sensor faucet powered by a plug-in AC transformer. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a below deck manual mixing valve. Available in Polished Chrome. This model is certified lead-free for potable-water installations.

The Sloan Standard faucets are based on offering rugged and dependable cost-solutions for strict budgets. The SF-2400 is a plug-in hardwired, mid-body, single-hole deck mounted faucet that provides commercial durability and premium aesthetics at a reasonable cost. The SF-2400 faucet comes with a number of features, including filtered solenoid valve with serviceable strainer filter and adjustable infrared sensor range that make it a great addition to any commercial restroom. Additionally, the SF-2400 includes all necessary mounting hardware and includes the plug-in adapter along with four (4) AA-sized batteries. The SF-2400 also has a optional matching soap dispenser, the ESD-1500.

Options on this configuration: 4" Trim Plate (4).

Features

• 4" Trim Plate, Plug Adapter Power Supply, Below Deck Manual Mixing Valve, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
• Chrome Plated Finish
• 0.5GPM Flow Rate with multi-laminar flow
• Includes 4" Trim Plate for additional coverage of sink deck near spout
• Includes Plug Adapter
• Below deck manual mixing valve included for temperature setting and adjustment
• Adjustable Infrared Sensor Range
• 36” (914 mm) Long Sensor Cable
• 24” (610 mm) Long Flex Hose
• Filtered Solenoid Valve with serviceable Strainer Filter
• Includes Four (4) AA-size Batteries
• Includes appropriate Mounting Hardware
• 1 Year limited warranty

Common Questions

How is this faucet powered, and what ships in the box?

This faucet ships with a plug-in AC transformer.

Is this single-hole or centerset, and does it need a trim plate?

This model installs in a single deck hole.

Which mixing valve does this use, and is it ASSE 1070 listed?

It includes a below deck manual mixing valve.

What is the flow rate, and is it WaterSense certified?

It delivers 0.5 GPM.

What sensor technology does it use, and can it be commissioned remotely?

This faucet uses an infrared sensor.

Specifications

• Type: Sensor Faucet
• Warranty: 1-Year Limited
• MPN: SF-2400-4-PLG-BDM-CP-0.5GPM-MLM-FCT
• Certifications: ADA, CALGreen, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372, C-UL
• Lead-Free: Yes
• Power Source: AC (Plug-In)
• Power Supply Detail: Plug Adapter (PLG)
• Run Time (s): 30
• Sensor Type: Infrared
• Centers: Single-Hole
• Trim Plate: 4"
• Mixing Valve: Below Deck Manual Mixing Valve
• Outlet Type: Multi-Laminar (Non-Aerating)
• Body Height: Mid
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
