Specifications
Description

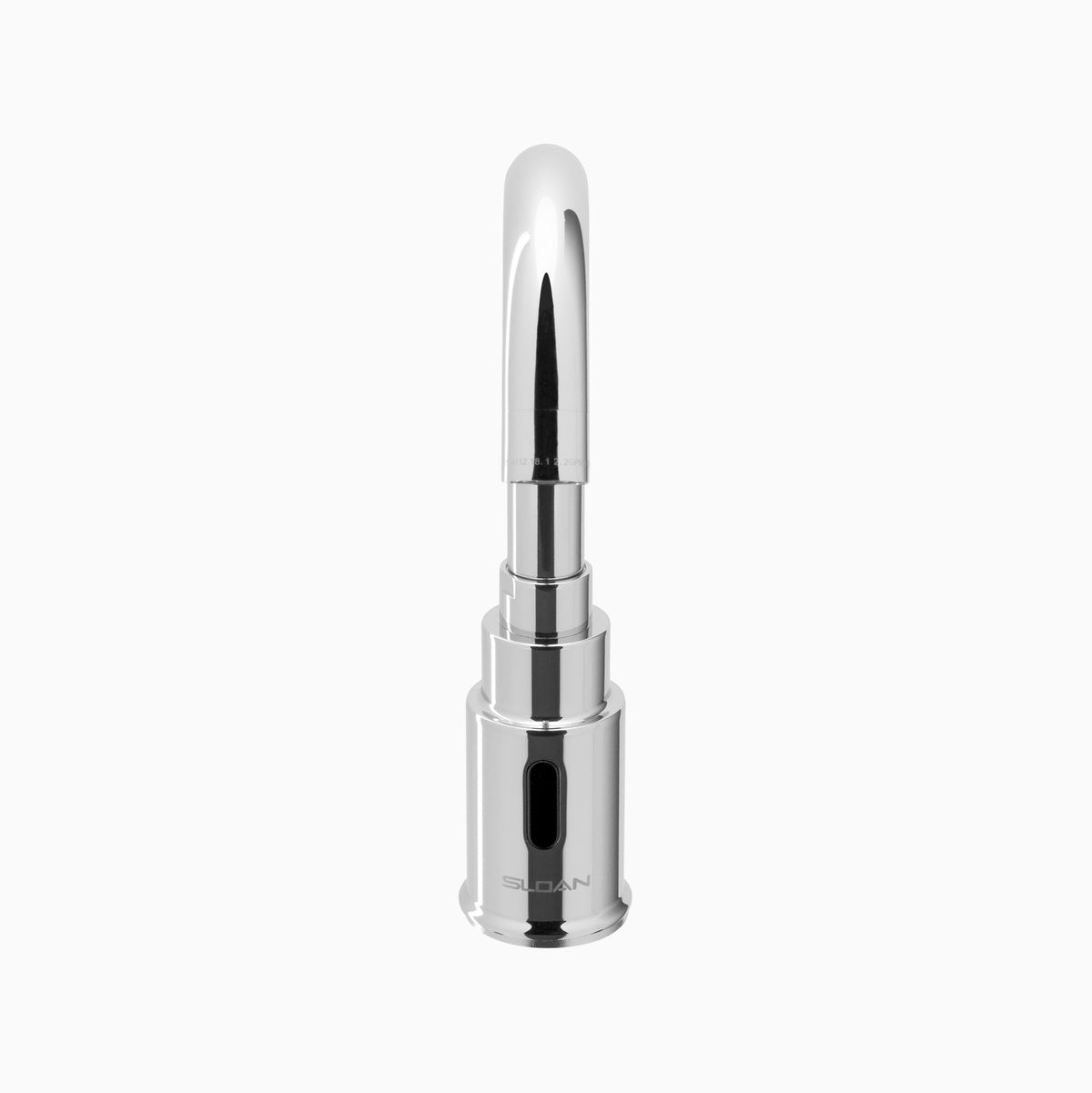

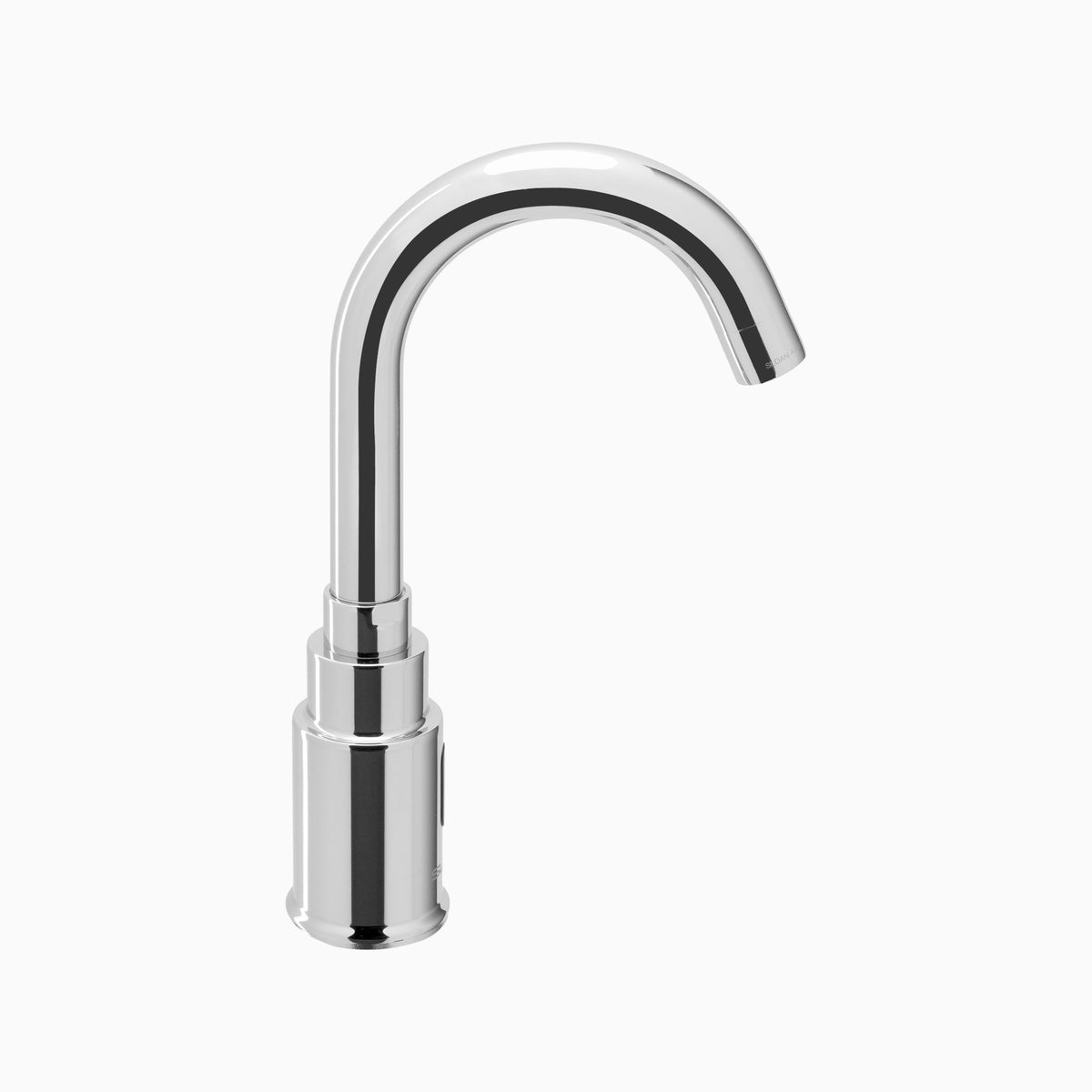

The Sloan SF-2250 is a Deck-mounted Standard sensor faucet powered by battery. It delivers 0.5 GPM through a multi-laminar (non-aerating) outlet. It includes a back-check tee. Available in Polished Chrome. This model is certified lead-free for potable-water installations.
The Sloan Standard faucets are based on offering rugged and dependable cost-solutions for strict budgets. The SF-2250 is a battery powered, gooseneck body, single-hole deck mounted faucet that provides commercial durability and premium aesthetics at a reasonable cost. The SF-2250 faucet comes with a number of features, including filtered solenoid valve with serviceable strainer filter and adjustable infrared sensor range that make it a great addition to any commercial restroom. Additionally, the SF-2250 includes all necessary mounting hardware and includes four (4) AA-sized batteries.
Options on this configuration: 4" Trim Plate (4).
Features
- 4" Trim Plate, Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor
- Chrome Plated Finish
- 0.5GPM Flow Rate with multi-laminar flow

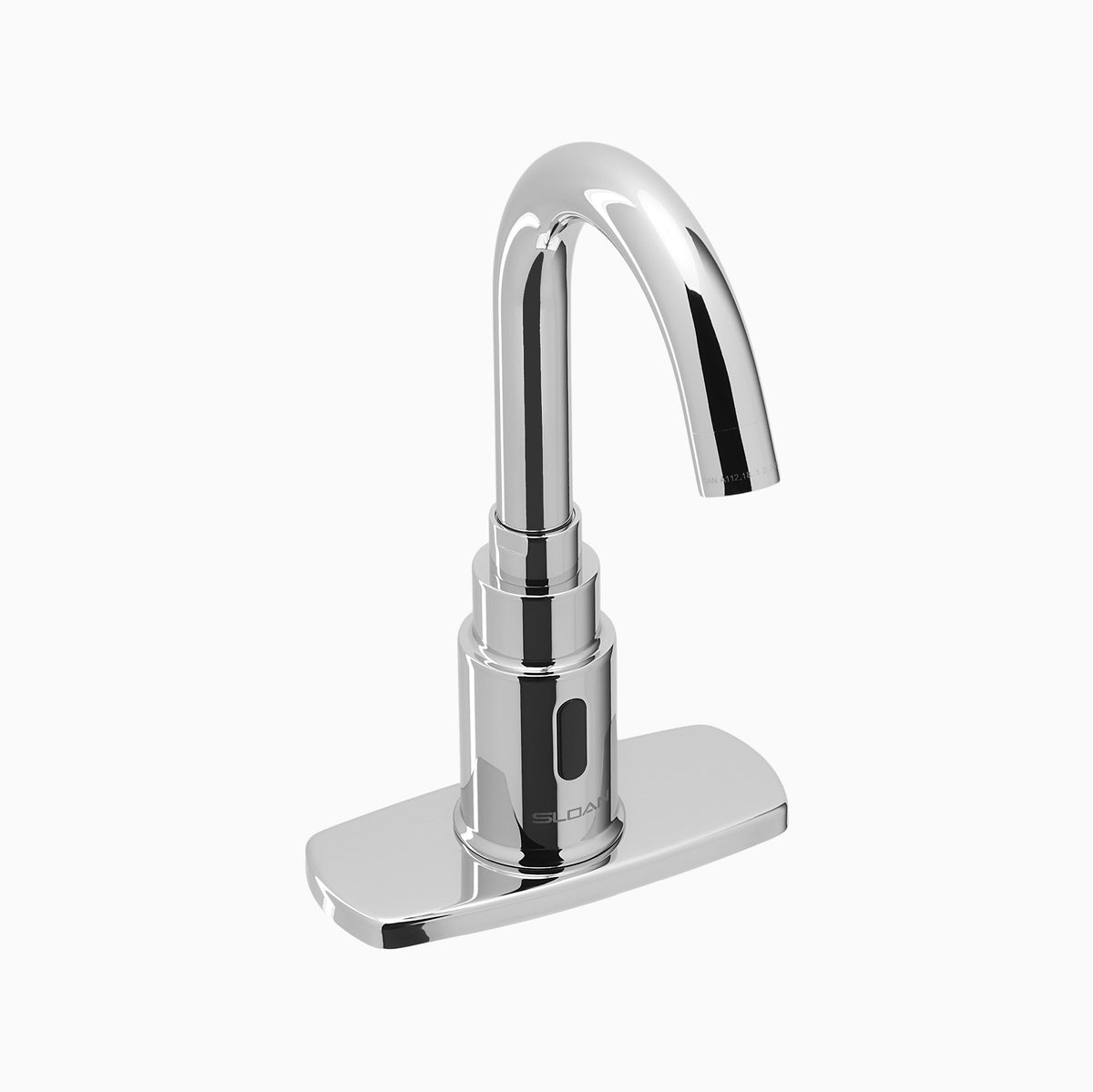

- Includes 4" Trim Plate for additional coverage of sink deck near spout
- Battery powered with 4AA batteries included
- Adjustable Infrared Sensor Range
- 36” (914 mm) Long Sensor Cable
- 24” (610 mm) Long Flex Hose
- Filtered Solenoid Valve with serviceable Strainer Filter
- Includes Four (4) AA-size Batteries
- Includes appropriate Mounting Hardware
- 1 Year limited warranty
Common Questions
- How is this faucet powered, and what ships in the box?
- This faucet runs on battery power. Sloan states a battery life of 2 years 8,000 cycles/month. No transformer or wiring is required.
- Is this single-hole or centerset, and does it need a trim plate?
- This model installs in a single deck hole.
- Which mixing valve does this use, and is it ASSE 1070 listed?
- It includes a back-check tee.
- What is the flow rate, and is it WaterSense certified?
- It delivers 0.5 GPM.
- What sensor technology does it use, and can it be commissioned remotely?
- This faucet uses an infrared sensor.
Specifications
- Type: Sensor Faucet
- Warranty: 1-Year Limited
- MPN: SF-2250-4-BAT-TEE-CP-0.5GPM-MLM-FCT
- Certifications: ADA, CALGreen, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372
- Lead-Free: Yes
- Power Source: DC (Battery)
- Power Supply Detail: Battery (BAT)
- Battery Life: 2 years 8,000 cycles/month
- Run Time (s): 30
- Sensor Type: Infrared
- Centers: Single-Hole
- Trim Plate: 4"
- Mixing Valve: Back-Check Tee
- Outlet Type: Multi-Laminar (Non-Aerating)
- Spout Type: Gooseneck
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (GPM): 0.5
Product Information
Details
| Series | SF-2250 | Device Type | Sensor Faucet |
| Lead Free | Yes | Options | 4" Trim Plate (4) |
| Coating | Polished Chrome | Flow rate gpm | 0.5 GPM |
| Mount type | Deck-Mount | Centers | Single-Hole |
| Mixing valve | Back-Check Tee | Outlet type | Multi-Laminar (Non-Aerating) |
| Trim plate | 4" | Battery life | 2 years 8,000 cycles/month |
| Power source | DC (Battery) | Power supply detail | Battery (BAT) |
| Run time s | 30 | Sensor type | Infrared |
Certifications & Standards
| ADA | CALGreen |
| CEC | IAPMO |
| NSF-61 | NYC 604.4 |
| TAS | NSF-372 |
Compare with similar products
| Series | SF-2250
| SF-2200
|
| Warranty | 1-Year Limited
| 1-Year Limited
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Sensor Faucet
| Sensor Faucet
|
| Lead Free | Yes | Yes |
| Certifications | ADA, CALGreen, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372
| ADA, CEC, IAPMO, NSF-61, NYC 604.4, TAS, NSF-372, C-UL
|
| Options | 4" Trim Plate (4)
| 4" Trim Plate (4)
|
