Description

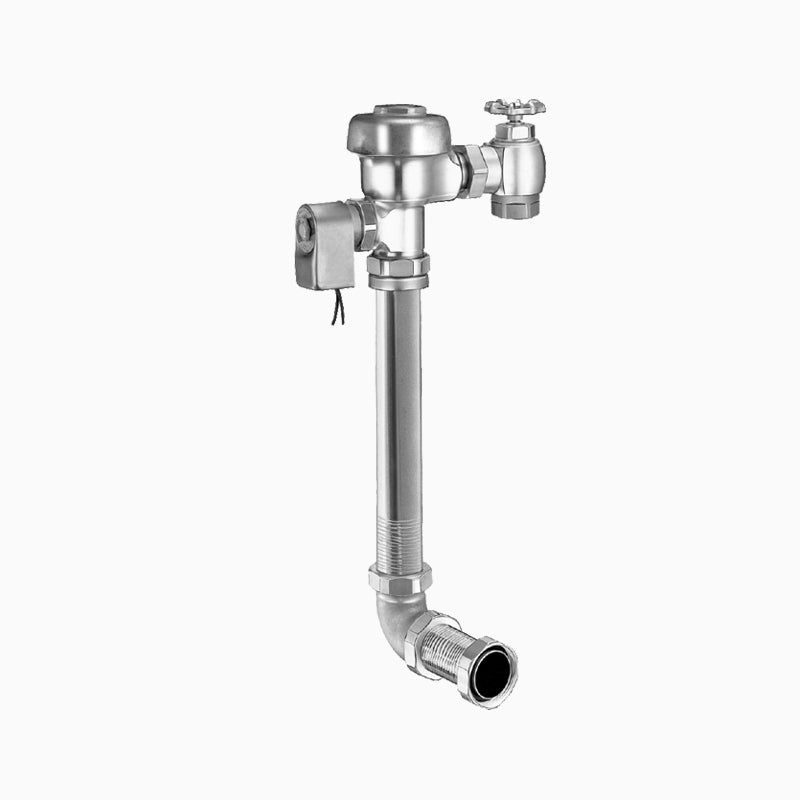

The Sloan REGAL 611 ES-ESM-3.5-RB-24V is a solenoid-operated diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body.
Options on this configuration: 24V Power (24V). Sloan model number: REGAL 611 ES-ESM-3.5-RB-24V.
Features
- 3.5 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, Hardwired, Solenoid-Operated with Modular Plug, 24V
- Solenoid activated, hardwired closet flushometer
- Diaphragm type flushometer
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Operation: Solenoid
- MPN: REGAL 611 ES-ESM-3.5-RB-24V
- Certifications: Buy American Act, IAPMO, UL, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Top Spud
- Rough-In (in): 24"
- Volume per Flush (gal): 3.5
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: Hardwired AC
- Power Supply Detail: 24V
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | REGAL 611 ES | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Solenoid |
| Options | 24V Power (24V) | Fixture Served | Water Closet |
| Body style | Concealed | Coating | Unfinished (Rough Brass) |
| Cycle volume gal | 3.5 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 24" |
| Spud connection | Top Spud | Power source | Hardwired AC |
| Power supply detail | 24V | — | — |
Certifications & Standards
| Buy American Act | IAPMO |
| UL | ASSE-1037 |
